012409386H Compensation Washer
€1.72 excl. VAT
- 012409386HThis pageNot stocked
Dec 2006 - 012409386BACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

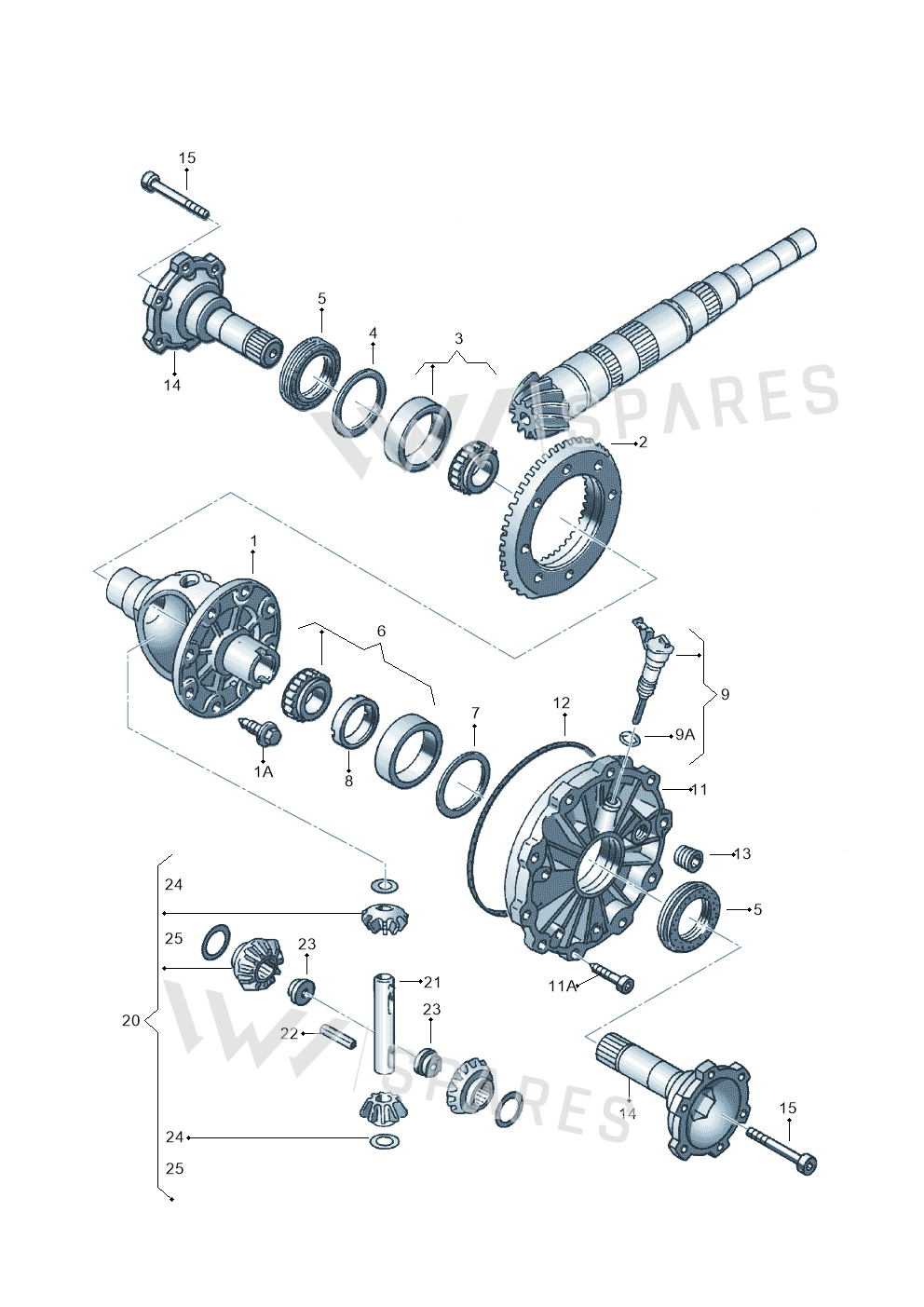

35 vehiclesCompensation Washer — locate Compensation Washer in the official exploded view and explore the surrounding assembly.
Parts in this assembly44
- 1Housing 01E409121N
- 1ABolt N90361401
- 2Gear Set 01E409143B
- 3Mounting 113517185C
- 4Shim 012409386AK
- 4Shim 012409386AL
- 4Shim 012409386AN
- 4Shim 012409386AP
- 4Shim 012409386AS
- 4Shim 012409386AT
- 4Shim 012409386BB
- 4Shim 012409386E
- 4Shim 012409386
- 5Seal Washer 016409399B
- 6Mounting 016409123
- 7Shim 012409385AL
- 7Shim 012409385AN
- 7Shim 012409385AP
- 7Shim 012409385AQ
- 7Shim 012409385AR
- 7Shim 012409385AS
- 7Shim 012409385BA
- 7Shim 012409385BB
- 7Shim 012409385AK
- 8Drivewheel 012409187C
- 9Sensor 012409191D
- 9ASeal Ring N90368401
- 11Cover 01E409131B
- 11ABolt N90366105
- 12Seal Ring N90514401
- 13Screw N10037103
- 14Flanshaft 01E409355
- 15Screw N0447141
- 20Diff Pinio 016498081A
- 21In Shaft - Differential Pinion Shaft - 005409177
- 22Part N10072601
- 23Part 087409373
- 24Washer 091517189
- 25Washer 088409249
- 25Washer 088409249A
- 25Washer 088409249B
- 25Washer 088409249C
- 25Washer 088409249D
- 25Washer 011519215
Vehicle fitment table35
Europe (34)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| SUPERB 02> | 2001- | 4 | X | |
| Passat/4Motion/W8 | 2000-2002 | 4 | X | |
| AUDI RS4 AV. QU. | 2000-2001 | 4 | X | |
| Audi A8 quattro | 1999-2002 | 4 | 1 | |
| Audi A4/Avant | 1999-2001 | 4 | X | |
| Audi A4/Av.qu. | 1999-2001 | 4 | X | |
| AUDI A8 | 1998-2002 | 4 | X | CYB |
| Passat syncro/4Motion | 1998-2000 | 4 | X | |
| Audi A6/Avant | 1997-2001 | 4 | X | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 4 | X | |
| Passat | 1997-2000 | 4 | X | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 4 | X | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 4 | X | |
| Audi A8 | 1996-1998 | 12, 4 | X | |
| Audi A8 qu. | 1996-1998 | 12, 4 | X | |
| Audi S6 plus qu. 97 | 1996-1997 | 4 | X | |
| Audi A6/S6/Wg.qu.F>4A | 1996-1997 | 4 | X | |
| Audi A6/Wagon F >4A-W | 1996-1997 | 4 | X | |
| Audi A6/Wagon 96 | 1995-1996 | 4 | X | |
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | 4 | X | |
| Audi Coupe quattro/3 96 | 1995-1995 | 4 | X | |
| AUDI 80 Av.Rs2 qu. | 1994-1995 | 4 | X | |
| Audi A6/Wagon 95 | 1994-1995 | 12, 4 | X | AT |
| Audi A6/S6/Wagon.qu. 95 | 1994-1995 | 12, 4 | X | |
| Audi 90 qu. 95 | 1994-1995 | 12, 4 | X | |
| Audi Coupe/3 | 1994-1995 | 12 | X | ATR,CAC,CCF, |
| Audi Cabrio. | 1993-1998 | 12 | X | AXG,CAC,CCF, |
| Audi 90 | 1993-1995 | 12 | X | ATR, |
| Audi 100/Wagon 94 | 1993-1994 | 12, 4 | X | |
| Audi 90 qu. | 1992-1994 | 12, 4 | X | |
| Audi 100/Wagon qu. | 1992-1994 | 12, 4 | X | |
| Audi 100/Wagon 93 | 1992-1993 | 12, 4 | X | |
| Audi Coupe qu. | 1989-1991 | 12, 4 | X | ASZ,AXM,ARV, |
| AUDI COUPE/3 | 1988-1994 | 12 | X |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI 100 (CHINA) | 1988-1995 | 12 | X |
Diagrams & fitment data powered by oemdiagrams.com
Compensation Washer is fitted on: SUPERB 02> 2001-; Passat/4Motion/W8 2000-2002; AUDI RS4 AV. QU. 2000-2001; Audi A8 quattro 1999-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; AUDI A8 1998-2002; Passat syncro/4Motion 1998-2000; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Passat 1997-2000; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi S6 plus qu. 97 1996-1997; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A6/Wagon F >4A-W 1996-1997; Audi A6/Wagon 96 1995-1996; Audi A6/S6/Wagon qu. 96 1995-1996; Audi Coupe quattro/3 96 1995-1995; AUDI 80 Av.Rs2 qu. 1994-1995; Audi A6/Wagon 95 1994-1995; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi 90 qu. 95 1994-1995; Audi Coupe/3 1994-1995; Audi Cabrio. 1993-1998; Audi 90 1993-1995; Audi 100/Wagon 94 1993-1994; Audi 90 qu. 1992-1994; Audi 100/Wagon qu. 1992-1994; Audi 100/Wagon 93 1992-1993; Audi Coupe qu. 1989-1991; AUDI COUPE/3 1988-1994; AUDI 100 (CHINA) 1988-1995.
