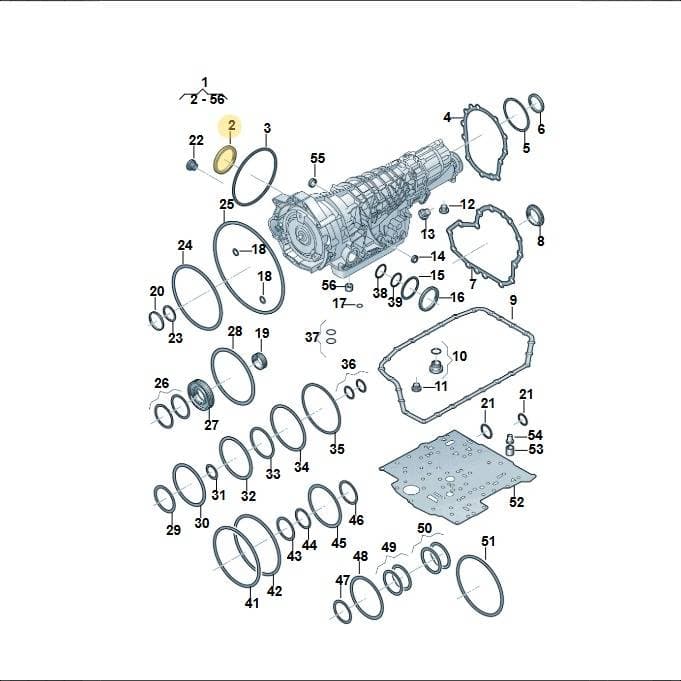

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Shaft Oil Seal, part number 01V409399. This oil seal is designed to seal rotating shafts within the axle or gearbox, preventing lubricant leakage and protecting against contamination. It is located in the transmission assembly as indicated by diagram position 2. Constructed from durable rubber, it ensures reliable sealing and longevity. Genuine OEM parts are critical for maintaining the integrity of seals to prevent leaks and ensure proper lubrication.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Italy
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9.1 × 9.1 × 0.8 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment
39 vehiclesShaft Oil Seal — locate 01V409399 Volkswagen Shaft Oil Seal | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Drivewheel 01F409187
- 1Drivewheel 018409187B
- 2Sensor 01F409191
- 3Seal Ring N90368402
- 4ASeal Ring N0138321
- 6Flange 018409285B
- 6Flange 018409285A
- 7Flanshaft 018409356F
- 7Flanshaft 018409356E
- 8Seal 01L409399
- 8Seal 018409399A
- 12Screw 01F409359
- 14AHose 018409847A
- 15Bracket 035133382AK
- 16Bracket 037145801B
- 19Seal 018409399B
- 21Screw 018409359
- 22Seal Ring 018325381B
- 22Seal Ring N0138441
- 23Union 018325853A
- 24Union N0208063
- 25Seal Ring N0138142
- 26Screw N0160275
- 28Screw N0160211
- 30Valve 018409087
- 31Ring N0123191
- 36Bolt 018409135E
- 37Bolt 018409135D
- 41Seal 018409189A
- 50Grease G00019001
Compatible / alternative parts(3)
- Part 01F409359
- Part 01L409399
- Part 018409399A
Diagrams & fitment data powered by oemdiagrams.com
01V409399 Volkswagen Shaft Oil Seal | Genuine OEM is fitted on: Audi V8 1989-1993; Audi A8 1996-1998; Audi A8 qu. 1996-1998; Audi A6/S6/Wagon.qu. 95 1994-1995; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/S6/Wagon qu. 96 1995-1996; Audi A6/S6/Wg.qu.F>4A 1996-1997; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; AUDI A6L CHINA 1999-2005; Audi A6 Allroad qu. 2000-2005; Audi A4/S4/Av./qu. 2001-2004; AUDI A8 1998-2002; Audi A8 quattro 1999-2002; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A6/Wagon/quattro 2001-2004; Audi A4/S4 Cabrio./qu. 2002-2006; Audi RS6 qu. 2003-2004; AUDI A4/AV./QU. "CN"03>05 2003-2005; Audi A4/S4/Av./qu. 05> 2005-; AUDI A4 "CN."06> 2005-; Passat 1997-2000; Passat syncro/4Motion 1998-2000; Passat/4Motion/W8 2000-2002; PASSAT 00> 2000-; Phaeton (lang) 2003-2006; 3B0 platform; PASSAT/4MOTION/W8 2002-2005; PASSAT LINGYU "CN."06> 2005-; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016; SUPERB 02> 2001-.
