Product overview
Genuine OEM Volkswagen Gear Housing, part number 020301103AR. This component forms the main structure of the transmission, housing gears and shafts. It is a critical structural element of the gearbox. Precision cast for structural integrity and precise component alignment, ensuring the longevity and smooth operation of the transmission.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33.8 × 23.8 × 19.7 cm
- Shipping weight
- 3.75 kg
Parts diagram & fitment

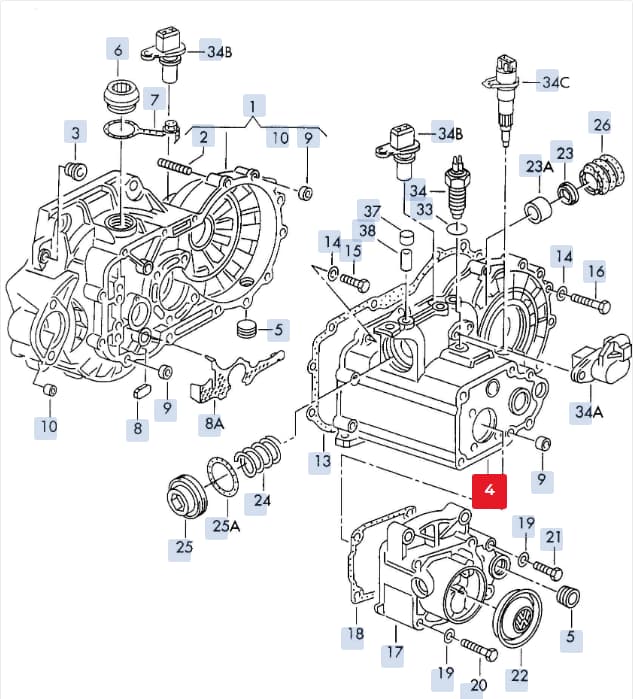

36 vehiclesGear Housing — locate 020301103AR Volkswagen Gear Housing | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 020301103AT — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(24)
- 1Housing 02K301071C
- 1Housing 02K301071
- 4Part 020301103AJ
- 4APart 020301103AK
- 5Screw 012301127F
- 6Screw 020301129B
- 7Part 020301132
- 8Magnet 084301143A
- 9Sleeve 02M301153
- 10Bush 113301155
- 13Seal 020301191F
- 14Washer N01155811
- 15Bolt N0102478
- 16Bolt N0402622
- 17Cover 020301205A
- 18Seal 020301215C
- 21Bolt N0103771
- 22Cover 020141073A
- 23Seal Washer 020301227D
- 27Washer N0115317
- 28Bolt 191971248
- 28Bolt N0195241
- 37Sleeve 012301474A
- 38Ap Cap For Venting The Gearbox Cap For Venting 014301485
Diagrams & fitment data powered by oemdiagrams.com
020301103AR Volkswagen Gear Housing | Genuine OEM is fitted on: Scirocco 1983-1989; Golf/Jetta "USA","MEX"89>92 1988-1992; CADDY 1982-1992; Rabbit Conv./Cabrio 1983-1993; Derby (MEX) 1994-1996; Jetta 89 1988-1989; GOLF,JETTA (MEX) 1987-1992; Jetta 1989-1991; GOLF/Ecomatic 1991-1994; Golf/Jetta "USA","MEX"93>96 1992-1996; Golf Cabrio 1994-1996; Jetta GLX 94 1993-1994; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; CADDY-KOMBI/KASTEN 1995-2003; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf 1996-1997; GOLF VAR./VENTO 1996-1999; Golf/Jetta "USA","Mex"97>99 1996-1998; GOLF CABRIO 1998-2001; Golf Cabrio "USA","Mex"99>02 1998-2002; POLO CLASSIC/VARIANT 1999-2001; POLO CLASSIC/VARIANT 1996-1999; POLO CLASS./PL. "ZA" 1996-2003; CITI GOLF "ZA"M.96> 1996-; CADDY-PICKUP "ZA" 96> 1995-; GOLF CABRIO 2002-2002; 6K0 platform; TOLEDO SEAT 1991-1996; TOLEDO SEAT MOD.97>99 1996-1999; Ibiza/Cordoba (SEAT) 1992-1996; INCA (SEAT-VAN) 1995-2003; IBIZA/CORDOBA/VARIO 1996-1999.
