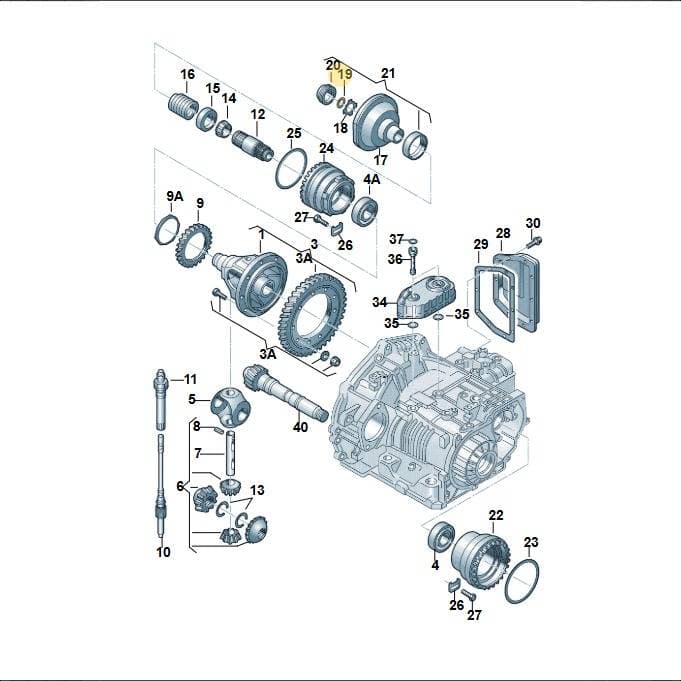

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Snap Ring, part number 020409297. This snap ring is a type of retaining ring that snaps into a groove to hold components in place. It is used in various assemblies to secure parts. Genuine OEM snap rings provide the correct tension and material strength to reliably retain components.
Technical details
- Category
- Suspension
- Country of origin
- Germany
- Customs (HS) code
- 73182100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.7 × 2.7 × 0.2 cm
- Shipping weight
- 0 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
95 vehiclesSnap Ring — locate 020409297 Volkswagen Snap Ring | Retaining Component in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 3Part 096409111AH
- 3Part 096409111AL
- 3Part 096409111AF
- 4Mounting 113517185C
- 5Thr Washer 02J409170
- 6Diff Pinio 096498081B
- 7In Shaft - Differential Pinion Shaft - 095409177A
- 8Sleeve N90538701
- 9Drivewheel 095409187B
- 9ABush 095409190
- 10Pinion 095409197A
- 11Mounting 095409193B
- 12Shaft 020409291B
- 13Ring 020409299
- 14Ring 020409374
- 15Washer 020409378
- 16Press Spring 020409379B
- 17Flange 01M409285
- 18Spring 020409295
- 20Cover 020409289B
- 21Repair Kit 020498085G
- 22Housing 096409117C
- 23Seal Ring 095409528
- 24Bear Ring 01M409253
- 25Seal Ring 095409259
- 26Plate 095409669A
- 27Bolt N90440701
- 28Cover 095409581A
- 29Seal 095409597A
- 30Bolt N90328502
- 35Seal Ring 089409069
- 36Screw 096409067A
- 37Seal Ring 096409069A
Vehicle fitment table95
Europe (62)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Beetle 06> | 2005- | 19 | 2 | G0E | |
| Jetta/Wagon | 2002-2006 | 19 | 2 | ||
| GOLF CABRIO | 2002-2002 | 15 | 2 | G0C | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 19 | 2 | ||
| New Beetle | 2001-2005 | 19 | 2 | G0E | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 19 | 2 | G0E | |
| Jetta Wagon 02 | 2001-2002 | 19 | 2 | ||
| Jetta Wagon | 2001-2001 | 19 | 1 | EAG,EAH,ERW | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 19 | 2 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 19 | 2 | G0E | |
| CORDOBA/VARIO | 1999-2002 | 19 | 2 | ||
| IBIZA | 1999-2002 | 19 | 2 | ||
| POLO CLASSIC/VARIANT | 1999-2001 | 15 | 2 | ||
| New Beetle | 1998-2001 | 19 | 2 | ||
| GOLF CABRIO | 1998-2001 | 15 | 2 | G0B | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 19 | 2 | ||
| Golf | 1998-2000 | 19 | 1 | EAG,EAH,ERW | G0G |
| AUDI A3/S3/QUATTRO | 1996-2000 | 19 | 2 | ||
| OCTAVIA/COMBI/4X4 | 1996-2000 | 19 | 1 | EAG,ERW | |
| GOLF VAR./VENTO | 1996-1999 | 15 | 2 | ||
| POLO CLASSIC/VARIANT | 1996-1999 | 15 | 2 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 15 | 2 | ||
| IBIZA/CORDOBA/VARIO | 1996-1999 | 15 | 2 | ||
| Golf | 1996-1997 | 15 | 2 | ||
| CADDY-KOMBI/KASTEN | 1995-2003 | 15 | 2 | ||
| INCA (SEAT-VAN) | 1995-2003 | 15 | 2 | ||
| Polo Classic 96 | 1995-1996 | 15 | 2 | ||
| Golf 96 | 1995-1996 | 15 | 2 | ||
| Golf Var./Vento 96 | 1995-1996 | 15 | 2 | ||
| Passat | 1994-1997 | 19 | 2 | ||
| Derby (MEX) | 1994-1996 | 15 | 2 | ||
| Golf Cabrio | 1994-1996 | 15 | 2 | ||
| Passat Var.syncro | 1994-1996 | 19 | 1 | ||
| Golf/Ecomatic 95 | 1994-1995 | 15 | 2 | ||
| Golf Var./Vento 95 | 1994-1995 | 15 | 2 | ||
| Golf/Var. syncro | 1993-1997 | 19 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 15 | 2 | ||
| Ibiza/Cordoba (SEAT) | 1992-1996 | 15 | 2 | ||
| TOLEDO SEAT | 1991-1996 | 15 | 2 | ||
| GOLF/Ecomatic | 1991-1994 | 15 | 2 | ||
| Passat syncro | 1991-1993 | 19, 38 | 1 | ||
| Passat | 1991-1993 | 19 | 2 | ||
| Corrado | 1989-1995 | 19 | 2 | ||
| Passat | 1989-1991 | 19 | 2 | ||
| Jetta | 1989-1991 | 22, 15 | 2 | ||
| Jetta 89 | 1988-1989 | 22, 15 | 2 | ||
| GOLF,JETTA (MEX) | 1987-1992 | 11, 19 | 2 | ||
| Jetta 88 | 1987-1988 | 22, 15 | 2 | ||
| Jetta 87 | 1986-1987 | 22, 15 | 2 | ||
| Golf/Jetta syn, Rallye | 1985-1991 | 26A, 19 | 1 | ||
| Jetta 86 | 1985-1986 | 22, 15 | 2 | ||
| Jetta 85 | 1984-1985 | 22, 15 | 2 | ||
| Scirocco | 1983-1989 | 22, 15 | 2 | ||
| CADDY | 1982-1992 | 15, 22 | 2 | ||
| Jetta | 1981-1984 | 22, 15 | 2 | ||
| Scirocco | 1981-1983 | 15 | 2 | ||
| Scirocco | 1981-1981 | 15 | 2 | ||
| Jetta 81 | 1980-1981 | 22, 15 | 2 | ||
| Scirocco | 1980-1981 | 15 | 2 | ||
| Scirocco | 1978-1980 | 15 | 2 | ||
| Scirocco | 1976-1978 | 16 | 2 | ||
| Scirocco | 1974-1976 | 16 | 2 |
Other markets (28)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Brasil "BR."08> | 2007- | 19 | 2 | ||
| BORA-GP-FAW 07> | 2006- | 19 | 2 | ||
| Jetta City "MEX"05>07 | 2006-2007 | 19 | 2 | G0E | |
| AUDI A3 "BR."M.06> | 2005-2006 | 19 | 2 | ||
| Golf 'R32' n. "USA" | 2004-2004 | 19 | 2 | ||
| Golf "BR.","USA"03>07 | 2002-2007 | 19 | 2 | ||
| BORA (FAW) | 2001-2006 | 19 | 2 | ||
| Jetta USA | 2001-2005 | 19 | 2 | G0E | |
| Golf BR/US | 2001-2002 | 19 | 2 | ||
| AUDI A3-BRASIL. | 2000-2005 | 19 | 2 | ||
| Golf BR/US | 1999-2001 | 19 | 2 | ||
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 15 | 2 | ||
| Jetta "USA"99>01 | 1998-2001 | 19 | 2 | ||
| CITI GOLF "ZA"M.96> | 1996- | 15 | 2 | ||
| POLO CLASS./PL. "ZA" | 1996-2003 | 15 | 2 | ||
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 15 | 2 | ||
| CADDY-PICKUP "ZA" 96> | 1995- | 15 | 2 | ||
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 15 | 2 | ||
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 15 | 2 | ||
| JETTA (FAW) 91> | 1991- | 15 | 2 | ||
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 15, 22 | 2 | ||
| Rabbit Conv./Cabrio | 1983-1993 | 22, 15 | 2 | ||
| Rabbit Conv. | 1981-1983 | 15 | 2 | ||
| Rabbit Conv. 81 | 1980-1981 | 15 | 2 | ||
| Rabbit/Jetta | 1978-1980 | 15, 22 | 2 | ||
| Rabbit Conv. | 1978-1980 | 15 | 2 | ||
| Rabbit | 1976-1978 | 16, 20 | 2 | ||
| Rabbit | 1974-1976 | 16, 20 | 2 |
Platform / generic diagrams (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 19 | ||||
| 1C0 platform | 19 | 2 | |||
| 1J0 platform | 19 | 2 | |||
| 6K0 platform | 15 | 2 | |||
| 6K0 platform | 19 | 2 | AKL+PR:G0E |
