Genuine OEM Volkswagen Cylinder Block With Pistons, part number 028103101AD. This is the main structural component of the engine, housing the pistons and crankshaft. It is located at the core of the engine assembly. Manufactured from high-strength cast iron for exceptional durability and thermal resistance. Genuine OEM parts ensure exact fitment and factory-specified tolerances for reliable engine operation.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39 × 33.5 × 29.5 cm
- Shipping weight
- 45 kg
Parts diagram & fitment

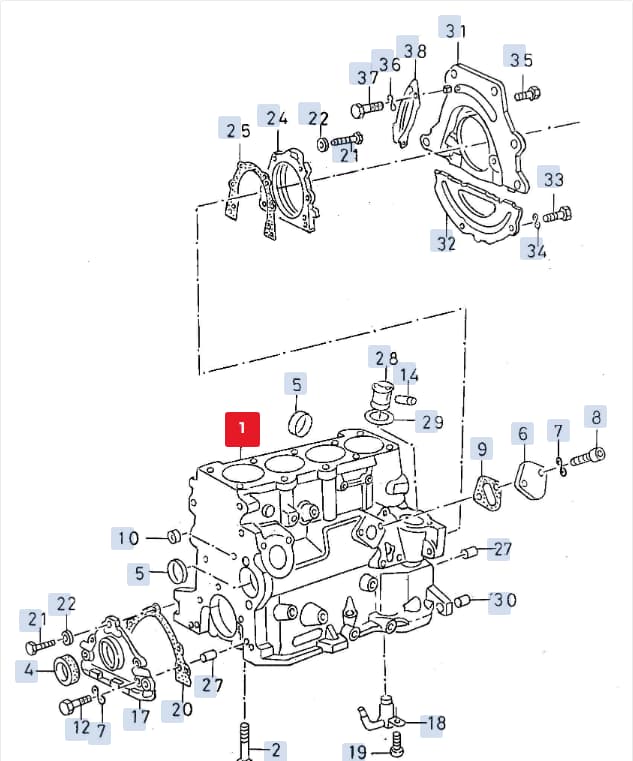

22 vehiclesCylinder Block With Pistons — locate 028103101AD Volkswagen Cylinder Block | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 028103101AE — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(41)
- 1Cylinder Block 028103101AC
- 1Cylinder Block 028103101D
- 2Bolt N90130001
- 2Bolt N10263801
- 3Cover 036103113A
- 4Cover N0119077
- 5Sleeve 028103039A
- 5Part 026103139
- 7Seal Ring 056905261
- 8Bush 056103541
- 9Rivet N0162011
- 9Bungs 056103117
- 10Bracket 028905256
- 11Washer N0122293
- 12Bolt N01024416
- 13Seal 068103085E
- 14Washer N01224110
- 15Bolt N01024016
- 16Washer N0122265
- 17Bolt N01021612
- 19Seal 026103161B
- 20Part N0432072
- 21Vent 068103157D
- 22Screw N90241501
- 24Flange 068103171F
- 25Seal 026103181B
- 26Sleeve 022103139
- 27Oil Sump 051103601
- 28Seal 044103609D
- 28Lock 037115220B
- 29Seal Ring N0138492
- 30Plug N90288901
- 31Bolt N90423402
- 35Cover 068103648K
- 35Cover 038103648A
- 36Bolt N0102276
- 37Cover 068103621E
- 38Coverplate 038103645A
- 40Bolt N0102085
- 41Tube 028103634
- 42Funnel 028103663B
Diagrams & fitment data powered by oemdiagrams.com
028103101AD Volkswagen Cylinder Block | Genuine OEM is fitted on: GOLF/Ecomatic 1991-1994; Golf/Var. syncro 1993-1997; Golf Cabrio 1994-1996; Passat 1994-1997; Jetta GLX 94 1993-1994; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; CADDY-KOMBI/KASTEN 1995-2003; Golf 1996-1997; GOLF VAR./VENTO 1996-1999; GOLF CABRIO 1998-2001; POLO CLASSIC/VARIANT 1996-1999; DIES.-IND.-MOT.1,9>2,0 1990-2007; 6K0 platform; TOLEDO SEAT 1991-1996; TOLEDO SEAT MOD.97>99 1996-1999; Ibiza/Cordoba (SEAT) 1992-1996; INCA (SEAT-VAN) 1995-2003; IBIZA/CORDOBA/VARIO 1996-1999.
