Product overview

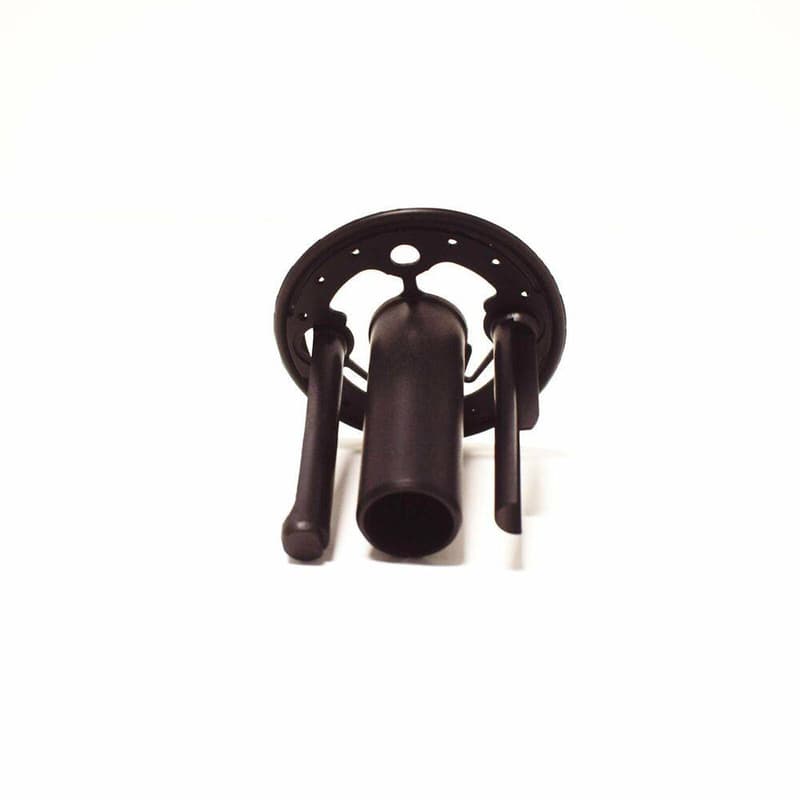

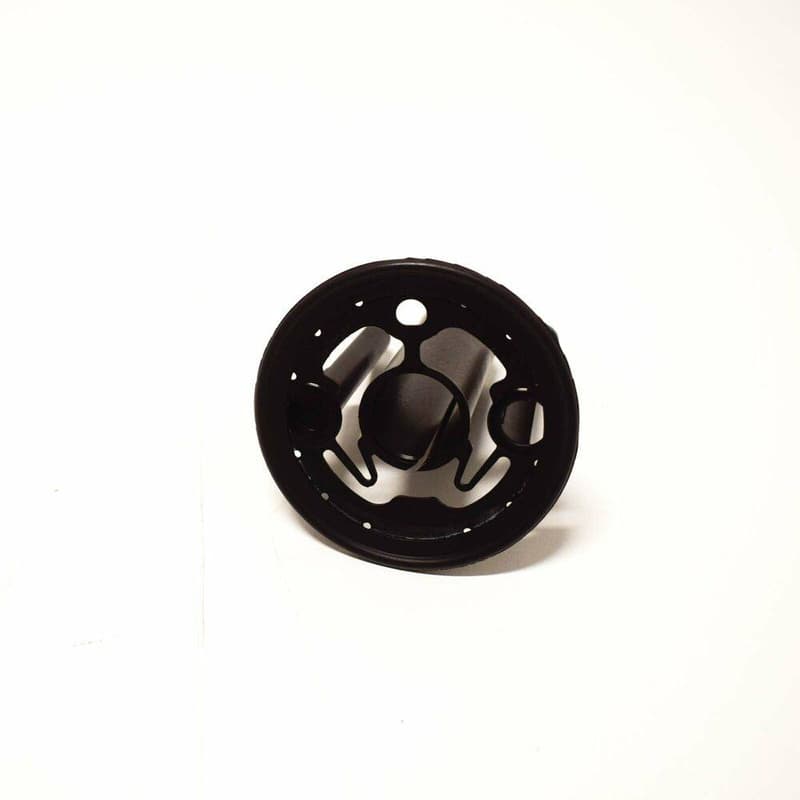

Genuine OEM Audi Oil Cooler Gasket, part number 028117070B. This gasket is crucial for sealing the connection of the oil cooler, preventing oil leaks and ensuring the integrity of the lubrication system. It is positioned between the oil cooler and its mating surface. Weighing 0.065 kg, this gasket is engineered from high-quality material to withstand engine temperatures and pressures. Opting for a genuine OEM gasket guarantees the precise shape and material resistance needed for a leak-free seal in the demanding oil system.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Italy
- Customs (HS) code
- 40169300
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 13 × 9 × 8 cm
- Shipping weight
- 0.07 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
73 vehiclesGasket For Oil Cooler — locate 028117070B Audi Oil Cooler Gasket | OEM Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly17
- 1Filterelem 070115562
- 1ASeal Ring 071115444
- 2Cover 071115433
- 3Bolt 071115434
- 3ASeal Ring N90405402
- 4Oil Filter 066115403
- 4AOil Filter 022115403QA
- 5Bolt N90520201
- 5Screw N10111202
- 7Seal 066115111A
- 8Seal 038117070A
- 9Oil Cooler 068117021BX
- 9Oil Cooler 068117021B
- 9AOil Cooler 028117021E
- 10Seal 038117070
- 11Cover 038117061B
- 11Cover 038117061C
Compatible / alternative parts(1)
Vehicle fitment table74
Europe (66)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| superb comfort | 2008-2013 | 8 | 1 | ||
| Passat CC | 2008-2012 | 8 | 1 | D34 | |
| passat estate | 2008-2011 | 8 | 1 | BWS | D34 |
| Sharan | 2008-2010 | 11 | 1 | ANU,AUY,BVK | MF7 |
| EOS 2.0 | 2008-2010 | 8 | 1 | D04 | |
| transp. caravelle | 2008-2009 | 8 | 1 | MY7 | |
| transp. dropside | 2008-2009 | 8 | 1 | MY7 | |
| Passat/4Motion 08 | 2007- | 8 | 1 | BWS | D34 |
| TRANSPORTER GESCHL. 08 | 2007- | 8 | 1 | MY7 | |
| TRANSPORTER OFFEN 08 | 2007- | 8 | 1 | MY7 | |
| PHAETON 08> | 2007- | 8 | 1 | D9J | |
| Alhambra | 2006-2010 | 11 | 1 | ANU,AUY,BVK | |
| TRANSPORTER/4MOTION 07 | 2006-2007 | 8 | 1 | MY7 | |
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 8 | 1 | MY7 | |
| SHARAN/4MOTION | 2005- | 11 | 1 | ANU,AUY,BVK | MF7 |
| Audi A4/S4/Av./qu. 05> | 2005- | 40 | |||
| ALHAMBRA/4MOTION | 2005- | 11 | 1 | ANU,AUY,BVK | |
| TRANSPORTER/4MOTION 06 | 2005-2006 | 8 | 1 | MY7 | |
| TRANSPORTER 06 | 2005-2006 | 8 | 1 | MY7 | |
| Audi A6/S6/Avant/qu. 05> | 2004- | 40 | 1 | T15 | |
| Audi A8/S8/qu. lang | 2003-2007 | 40 | |||
| Phaeton (lang) | 2003-2006 | 8 | 1 | D9J | |
| TRANSPORTER | 2003-2005 | 8 | 1 | MY7 | |
| Jetta/Wagon | 2002-2006 | 11, 8 | 1 | AHF,ASV | T8U |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 30A | 1 | T5T | |
| Audi TT Coupe/Roadster | 2002-2006 | 8 | |||
| PASSAT/4MOTION/W8 | 2002-2005 | 4, 18 | 1 | MT0 | |
| SHARAN/4MOTION | 2002-2005 | 11 | 1 | ANU,AUY | MF7 |
| ALHAMBRA/4MOTION | 2002-2005 | 11 | 1 | ANU,AUY | |
| SUPERB 02> | 2001- | 18 | 1 | ||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 11 | 1 | AHF,ASV | MF4 |
| Audi A4/S4/Av./qu. | 2001-2004 | 30A, 18 | T1K | ||
| Audi A6/Wagon/quattro | 2001-2004 | 30A | 1 | T1K | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 11, 8 | 1 | AHF,ASV,AJM, | |
| Jetta Wagon 02 | 2001-2002 | 11, 8 | 1 | AHF,ASV,AJM, | |
| Jetta Wagon | 2001-2001 | 8, 11 | 1 | AQN | MT0 |
| PASSAT 00> | 2000- | 18 | 1 | G0F | |
| OCTAVIA/COMBI/4X4 01> | 2000- | 11 | 1 | AHF,ASV | MF4 |
| Audi A6 Allroad qu. | 2000-2005 | 18, 30A | |||
| AUDI A3/S3/QUATTRO | 2000-2003 | 11 | 1 | ASV,AHF | T8U |
| Passat/4Motion/W8 | 2000-2002 | 4, 18 | 1 | ||
| SHARAN/4MOTION | 2000-2002 | 11 | 1 | MF7 | |
| ALHAMBRA/4MOTION | 2000-2002 | 11 | 1 | ||
| Audi A8 quattro | 1999-2002 | 18, 30A | |||
| Audi A4/Avant | 1999-2001 | 18 | 73MM | ||
| Audi A4/Av.qu. | 1999-2001 | 18, 26 | 73MM | ||
| AUDI A8 | 1998-2002 | 18, 30A | |||
| GOLF CABRIO | 1998-2001 | 19 | 73MM | 02 | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 11 | 1 | AHF | |
| Golf | 1998-2000 | 8, 11 | 1 | AQN | |
| Passat syncro/4Motion | 1998-2000 | 26, 11 | |||
| Audi A6/Avant | 1997-2001 | 18 | |||
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 18 | |||
| Passat | 1997-2000 | 26, 18 | 73 | ||
| Audi A4/Avant F8D-W-> | 1997-1998 | 26 | 73MM | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 26 | |||
| AUDI A3/S3/QUATTRO | 1996-2000 | 11 | |||
| ALHAMBRA | 1996-2000 | 19 | 73MM | ||
| GOLF VAR./VENTO | 1996-1999 | 19 | 73 | ||
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 19 | 73MM | ||
| Golf | 1996-1997 | 19 | 73 | ||
| SHARAN/SYNCRO | 1995-2000 | 19, 11 | 73MM | ||
| Golf 96 | 1995-1996 | 19 | 73 | ||
| Golf Var./Vento 96 | 1995-1996 | 19 | 73 | ||
| Passat | 1994-1997 | 19 | 73 | ||
| OTTO-IND.-MOT. 77> | 1977- | 10 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 18 | 1 | G0F | |
| AUDI A6L "CN"05> | 2005- | 40 | 1 | ||
| AUDI A4 "CN."06> | 2005- | 40 | |||
| Golf 'R32' n. "USA" | 2004-2004 | 11, 8 | 1 | AHF,ASV | T8U |
| MARINE-MOTOR 02> | 2002- | 13A |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 3B0 platform | 18 | ||||
| 06A platform | 10, 8 | 1 | 7KY |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 73MM |
