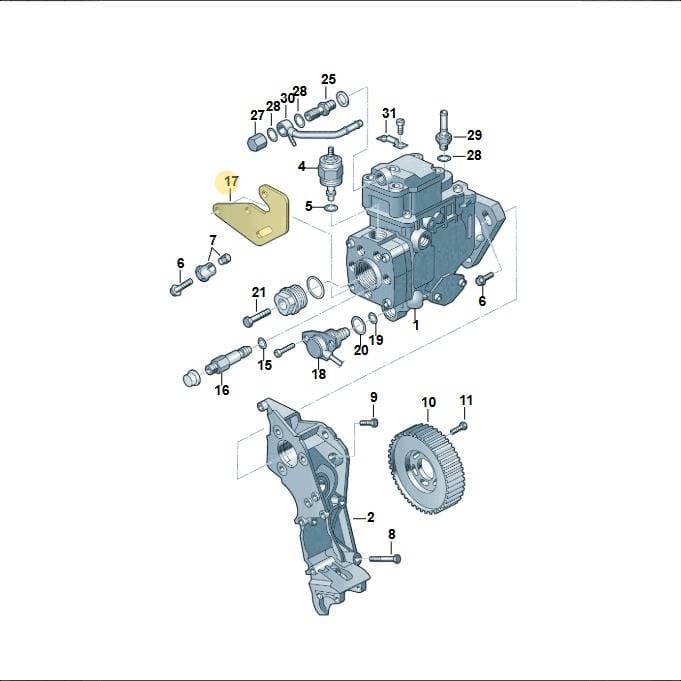

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Support, part number 028130149B. This support provides structural reinforcement or mounting for other components within the fuel system assembly. It is located at position 17 on the diagram. Made from durable metal, this genuine part ensures secure mounting and stability for associated components.
Technical details
- Category
- Fuel System
- Country of origin
- Czech Republic
- Customs (HS) code
- 84139100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9.5 × 7 × 0.5 cm
- Shipping weight
- 0.13 kg
Parts diagram & fitment
90 vehiclesSupport — locate 028130149B Volkswagen Support | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 1Pump 028130115M
- 2Console 028130147B
- 3Screw N10226002
- 5Washer N01224110
- 6Clamp 068130173B
- 7Clamp 068130174
- 8Cutoff 028130135F
- 9Seal 068130139
- 10Bolt N0102695
- 12Washer 111129720
- 13Bush 068130199
- 16Washer N90477301
- 17Part 068130197
- 19Ut Hexagon Nut Self-locking Hexagon Nut N0111849
- 21Spring N0127101
- 22Washer N0122333
- 25Seal Ring 068130787A
- 26Union 028130795G
- 27Seal Ring 028130717A
- 29Temperature Sensor 028906040C
- 31Seal Ring 046130684
- 32Seal Ring 046130684A
- 34Seal Ring N0138075
- 35Valve 028130122B
- 36Roller 028109244
- 37Screw N0147172
Diagrams & fitment data powered by oemdiagrams.com
028130149B Volkswagen Support | Genuine OEM is fitted on: GOLF/Ecomatic 1991-1994; Golf/Var. syncro 1993-1997; Golf Cabrio 1994-1996; Passat 1994-1997; Jetta GLX 94 1993-1994; POLO 1994-1999; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; SHARAN/SYNCRO 1995-2000; Polo Classic 96 1995-1996; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; CADDY-KOMBI/KASTEN 1995-2003; Golf 1996-1997; GOLF VAR./VENTO 1996-1999; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf 1998-2000; Jetta "USA"99>01 1998-2001; New Beetle 1998-2001; Jetta Wagon 2001-2001; GOLF CABRIO 1998-2001; Passat 1997-2000; Passat syncro/4Motion 1998-2000; LUPO/3L TDI 1998-2003; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; POLO CLASSIC/VARIANT 1996-1999; POLO 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta USA 2001-2005; New Beetle 2001-2005; MARINE-MOTOR 02> 2002-; Golf BR/US 1999-2001; Golf BR/US 2001-2002; POLO-BRASIL 2002-2006; Golf "BR.","USA"03>07 2002-2007; POLO LIM.(SEDAN) "BR" 2002-2006; FOX 04> 2003-; POLO HATCH "BR."07> 2006-; POLO SEDAN "BR."07> 2006-; Golf Brasil "BR."08> 2007-; Jetta/Wagon 2002-2006; Golf 'R32' n. "USA" 2004-2004; DIES.-IND.-MOT.1,9>2,0 1990-2007; DIES.-IND.-MOT.1,9>2,0 08> 2007-; LUPO/3L TDI 2003-2005; POLO 2005-; 6K0 platform; POLO CLASSIC 06> 2005-; SURAN (FOX MPV) "RA."06> 2006-; Polo 2008-2009; TOLEDO SEAT 1991-1996; TOLEDO SEAT MOD.97>99 1996-1999; Ibiza/Cordoba (SEAT) 1992-1996; INCA (SEAT-VAN) 1995-2003; ALHAMBRA 1996-2000; TOLEDO/LEON/LEON-4 1998-2001; AROSA 1997-2003; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; IBIZA/CORDOBA/VARIO 1996-1999; IBIZA 2001-2005; TOLEDO/LEON/LEON-4 2001-2006; CORDOBA/SE241 2002-2005; AROSA 2003-2004; IBIZA 06> 2005-; CORDOBA 06> 2005-; Audi Cabrio. 1993-1998; Audi 90 93 1992-1993; Audi 90 1993-1995; Audi A6/Wagon 95 1994-1995; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi A6/Wagon 96 1995-1996; Audi A6/Wagon F >4A-W 1996-1997; AUDI A3/S3/QUATTRO 1996-2000; AUDI A3/S3/QUATTRO 2000-2003; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Audi A6/Avant 1997-2001; AUDI A3-BRASIL. 2000-2005; OCTAVIA/COMBI/4X4 1996-2000; FABIA/COMBI 1999-2004; OCTAVIA/COMBI/4X4 01> 2000-; FABIA/COMBI 05> 2004-.
