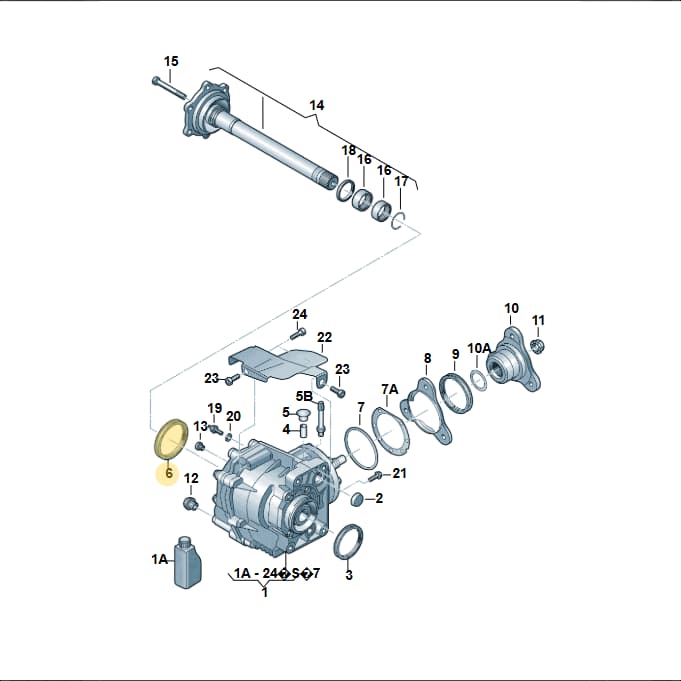

Number 6 marks the part’s position in the exploded view.

Product overview

Genuine OEM Volkswagen Shaft Oil Seal, part number 02D525596B. This oil seal is critical for preventing the leakage of transmission fluid from the shaft where it exits the gearbox housing. It creates a tight seal between the rotating shaft and the stationary housing. Made from a combination of durable rubber and metal, it is designed to withstand the pressures and temperatures within the transmission for extended service life.

Technical details

Category
Gaskets & Seals
Country of origin
Hungary
Customs (HS) code
40169300
Manufacturer
Volkswagen
Product Type
Genuine new auto parts
Shipping size (L × W × H)
8.4 × 8.4 × 0.8 cm
Shipping weight
0.03 kg

Parts diagram & fitment

80 vehicles

Shaft Oil Seal — locate 02D525596B Volkswagen Shaft Oil Seal | Transmission in the official exploded view and explore the surrounding assembly.

Superseded by 02D525596F — the later replacement part.

This part is marked discontinued by the manufacturer; contact us to check current availability.

Parts in this assembly(18)
Compatible / alternative parts(12)

Diagrams & fitment data powered by oemdiagrams.com

02D525596B Volkswagen Shaft Oil Seal | Transmission is fitted on: Golf 'R32' n. "USA" 2004-2004; TRANSPORTER 2003-2005; GOLF 2003-2005; CAMPMOBILE(T5) 2004-2006; Passat/4Motion 2005-2007; Golf/Rabbit 2005-2007; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; GOLF VARIANT 07> 2007-; Golf/Rabbit 08> 2007-; Passat/4Motion 08 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; TIGUAN 08> 2007-; Passat CC 2008-2012; golf 2.0 2008-2011; caddy panel van 2008-2010; passat estate 2008-2011; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; golf estate 2009-2013; Tiguan 2009-2019; Sharan Blue Motion 2010-2015; Caddy Maxi Kombi 2010-2015; Passat saloon 2010-2015; Tiguan 4Motion 2011-2018; Golf 2011-2013; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; Passat CC 2011-2016; Audi TT Coupe/Roadster 2002-2006; Audi A3/S3/quattro 2005-2007; Audi TT Coupe/Roadster 08> 2007-; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Sportback 2008-2013; Audi A5 Cabrio 2.0 2008-2012; Audi TTRS Plus Coupe 2009-2014; Audi RS5 Coupe 2010-2015; Audi A8L qu. 3.0 TDI 2009-2014; Audi TTS Coupe 2.0 2010-2014; Audi A1 Sportback 2010-2015; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi RS3 Sportback 2011-2012; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; Audi Q3 quattro 2011-2015; audi a4 av. 2.0 tdi 2011-2015; Audi A6 Av. qu. 3.0 2012-2018; Audi RS4 Av. qu. 4.2 2012-2015; Audi Q5 qu. 2.0 TDI 2012-2017; Audi RS6 Avant 2013-2018; Audi RS5 Cabrio 2012-2015; Audi Q3 1.4 2012-2016; Audi RSQ3 qu. 2.5 2013-2018; Audi RS7 Sportback 2013-2018; Audi A8L qu. 3.0 TDI 2013-2018; Audi Q3 2.0 TDI 2014-2019; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Yeti 2013-2017; superb 2013-2015; ALTEA 07> 2006-; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013.
