02F301189A Shaft Oil Seal
€18.04 excl. VAT
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

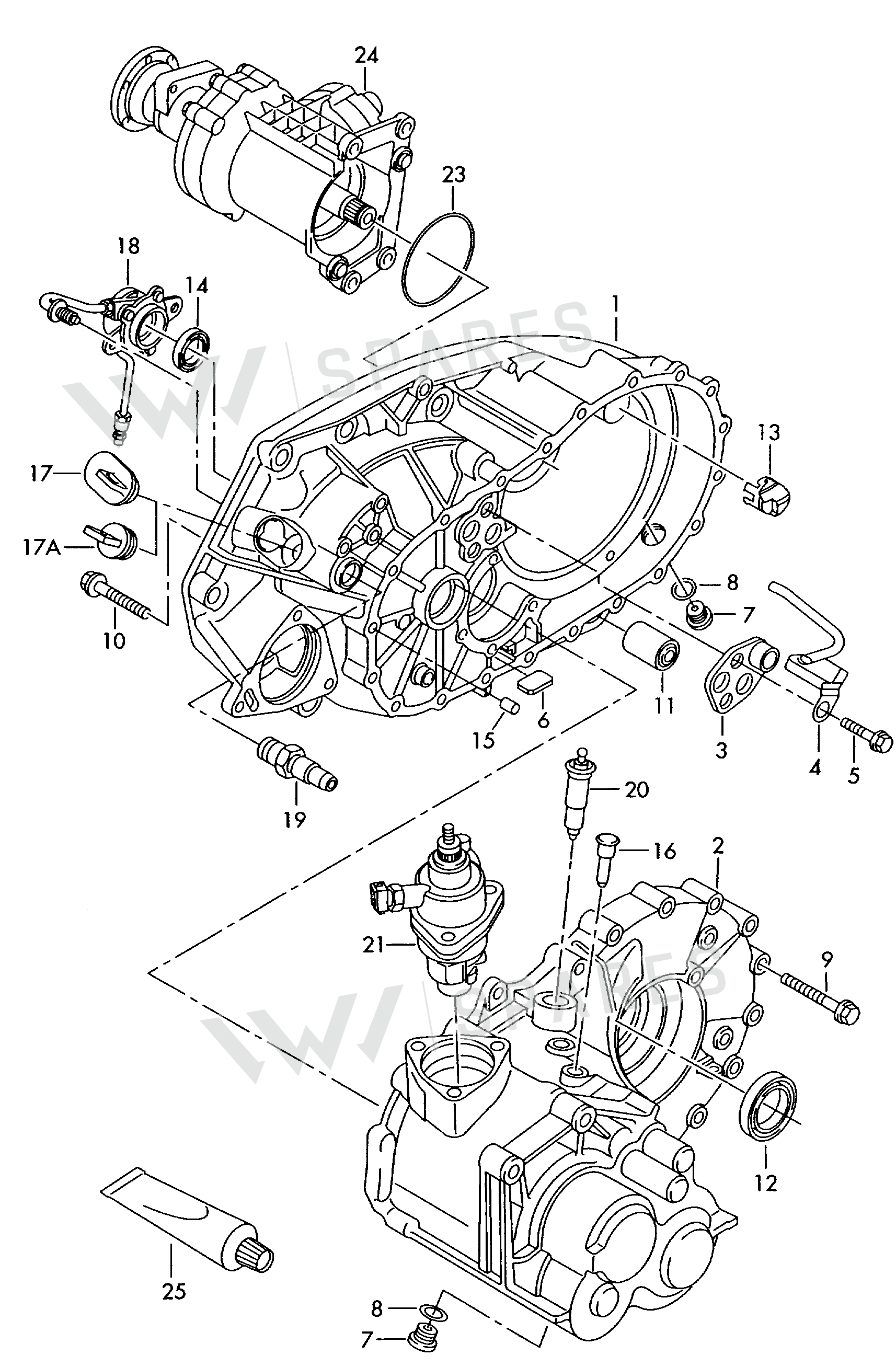

6 vehiclesShaft Oil Seal — locate Shaft Oil Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly16
- 1Housing 02G301107D
- 2Housing 02G301103B
- 4Drip Tray 02G301279A
- 5Bolt N10240001
- 6Magnet 084301143A
- 7Screw N90917801
- 8Seal Ring N0438092
- 9Bolt N10138904
- 13Oil Guide 02G301134B
- 15Sleeve 02M301153
- 17Bungs 02A301115A
- 17ABungs 02M301115B
- 19Valve Unit 02F301363B
- 23Seal Ring 099409637
- 25Seal Greas G052128A1
- 25Seal Comp AMV18820003
Vehicle fitment table6
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TRANSPORTER SYNCRO | 1996-2003 | 12, 7 | 1 |
| Transporter 96 | 1996-1996 | 12, 15 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Eurovan | 1998-2003 | 12, 15 | 1 |
| Eurovan 98 | 1997-1998 | 12, 15 | 1 |
| Eurovan | 1996-1997 | 12, 15 | 1 |
| Eurovan F>>70-T 96 | 1995-1995 | 12, 15 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Shaft Oil Seal is fitted on: TRANSPORTER SYNCRO 1996-2003; Transporter 96 1996-1996; Eurovan 1998-2003; Eurovan 98 1997-1998; Eurovan 1996-1997; Eurovan F>>70-T 96 1995-1995.
