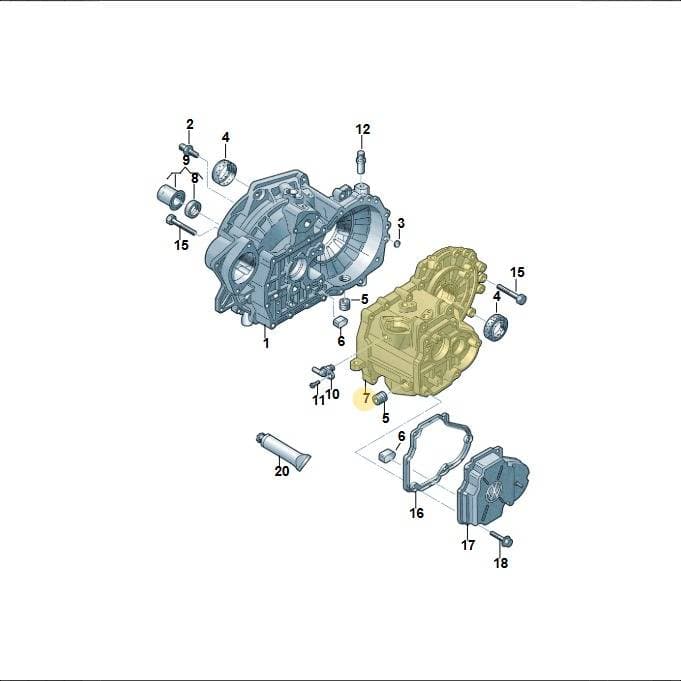

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Gear Housing, part number 02R301103E. This housing forms the main casing for the gearbox, housing internal components like gears and shafts. This part is identified as item 7 in the diagram. Genuine OEM gear housings are cast with precise dimensions to maintain the alignment of internal transmission components.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Spain
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44.5 × 26.5 × 21 cm
- Shipping weight
- 5.11 kg
Parts diagram & fitment
14 vehiclesGear Housing — locate 02R301103E Volkswagen Gear Housing | Transmission in the official exploded view and explore the surrounding assembly.
Superseded by 02R301103H — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(18)
- 1Housing 02R301107B
- 1Housing 02R301107A
- 2Stud 02A141777B
- 3Sleeve 02M301153A
- 5Screw WHT001937
- 6Magnet 084301143A
- 7Housing 02R301103C
- 7Housing 02R301103B
- 8Seal 085311113
- 10Sender 02T906207D
- 10Sender 02T906207C
- 11Screw N90638102
- 12Screw 02J409057
- 15Bolt WHT005480
- 16Seal 02R301215
- 17Cover 02R301211B
- 18Bolt N10143003
- 20Seal Comp AMV18820003
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
02R301103E Volkswagen Gear Housing | Transmission is fitted on: Polo 2009-2012; Polo 2009-2014; Polo 2012-2014; Polo 2014-2022; Ameo 1,0 2016-2020; Fabia Scout 2010-2014; Fabia Ambiente 2009-2013; Rapid Ambition 2011-2021; Rapid 2012-2022; Ibiza Reference 2008-2011; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Audi A1 Sportback 2010-2015; Audi A1 Sportback 2014-2018.
