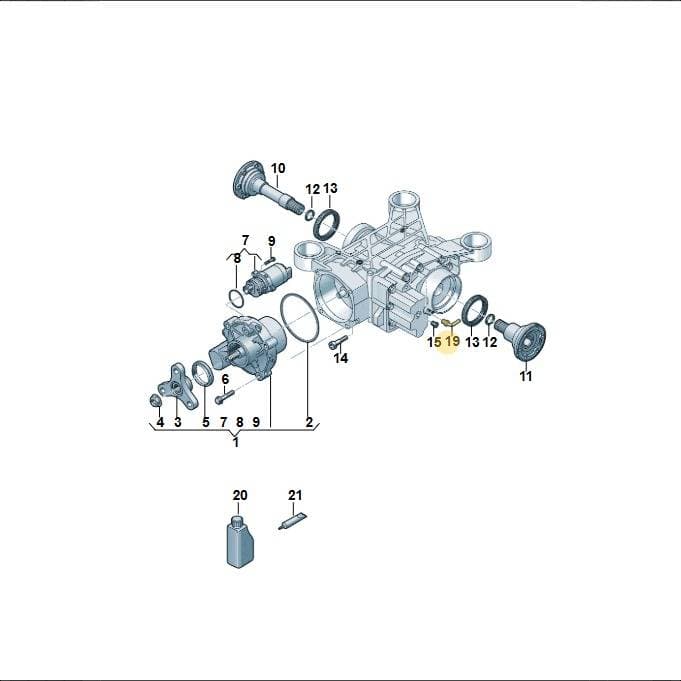

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Elbow Fitting, part number 02W525118A. This fitting connects two fluid lines at a 90-degree angle, redirecting flow within the system. It is located on the differential housing. Its precise threading and material ensure a leak-free connection. Genuine OEM parts guarantee compatibility and durability, essential for maintaining fluid system integrity.
Catalogue entry: BRACKET ×2.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5 × 2 × 1 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

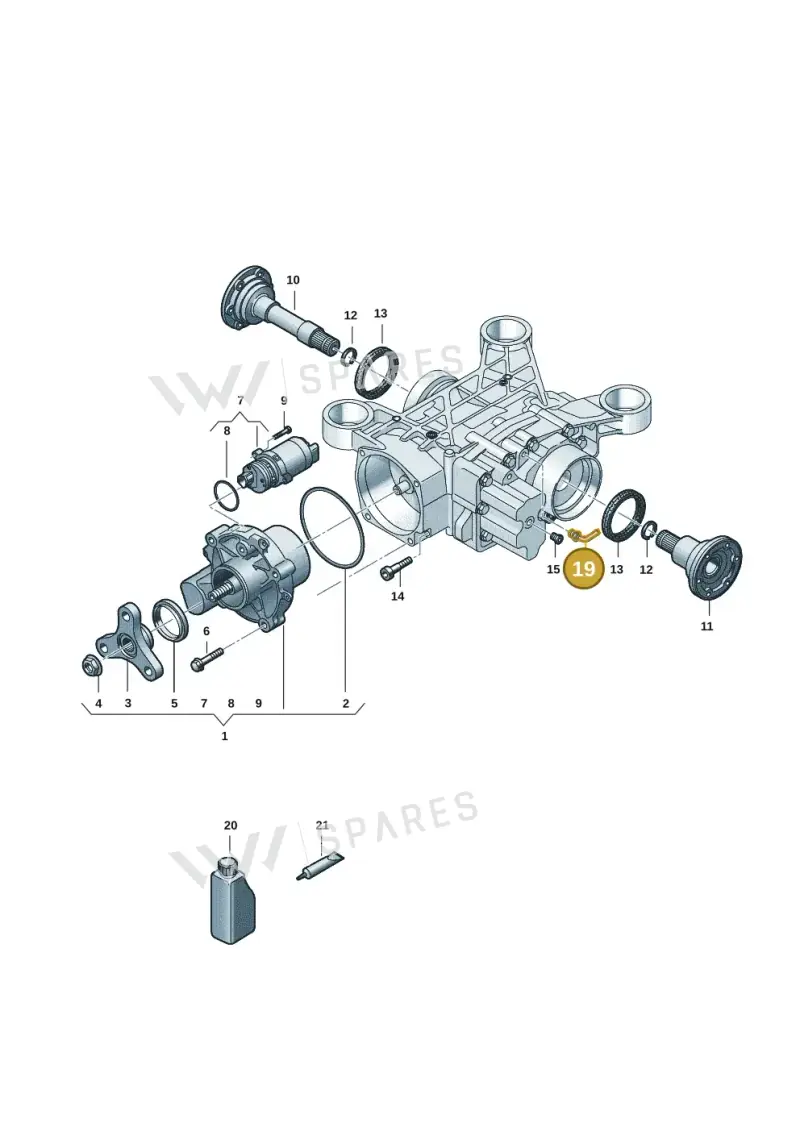

13 vehiclesElbow Fitting — locate 02W525118A Volkswagen Elbow Fitting | Fluid Connector in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Clutch 5WA525554D
- 2Seal Ring N90443301
- 3Flange 02D525289A
- 4Collar Nut WHT001284
- 5Seal Washer 5WA525275A
- 6Bolt N10329102
- 6Screw N91202001
- 7Pump 5WA907554P
- 8Seal Ring WHT010080
- 9Screw N10624302
- 10Flanshaft 01Z525356
- 10Flanshaft 0CR525354
- 11Flanshaft 01Z525355
- 11Flanshaft 0CR525351
- 12Circlip 012409413
- 12Circlip 012409413B
- 13Seal 0CQ525596A
- 14Bolt N91082701
- 15Bolt N90281802
- 19Bracket 0CR525118
- 20Axle Oil G052580A2
- 20Part G065175A2
Vehicle fitment table13
Europe (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan 2.0 4Motion | 2017-2024 | 19 | 2 | |
| Kodiaq | 2016-2024 | 19 | 2 | |
| Sharan BlueMotion | 2015-2022 | 6 | 2 | |
| Audi RSQ3 qu. 2.5 | 2013-2018 | 8 | 2 | 1X1 |
| Sharan Blue Motion | 2010-2015 | 6 | 2 |
Other markets (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Tiguan | 2024- | 19 | 2 | |
| B-Main SUV | 2022- | 6 | 2 | |
| Audi Q6 | 2022- | 8 | 2 | |
| Teramont | 2021-2023 | 6 | 2 | |
| Audi Q3 2.0 | 2019- | 6 | 2 | |
| Atlas Cross Sport | 2019-2023 | 19 | 2 | |
| Atlas | 2016-2023 | 19 | 2 | |
| 30G platform | 6 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
02W525118A Volkswagen Elbow Fitting | Fluid Connector is fitted on: Tiguan 2.0 4Motion 2017-2024; Kodiaq 2016-2024; Sharan BlueMotion 2015-2022; Audi RSQ3 qu. 2.5 2013-2018; Sharan Blue Motion 2010-2015; Tiguan 2024-; B-Main SUV 2022-; Audi Q6 2022-; Teramont 2021-2023; Audi Q3 2.0 2019-; Atlas Cross Sport 2019-2023; Atlas 2016-2023; 30G platform.
