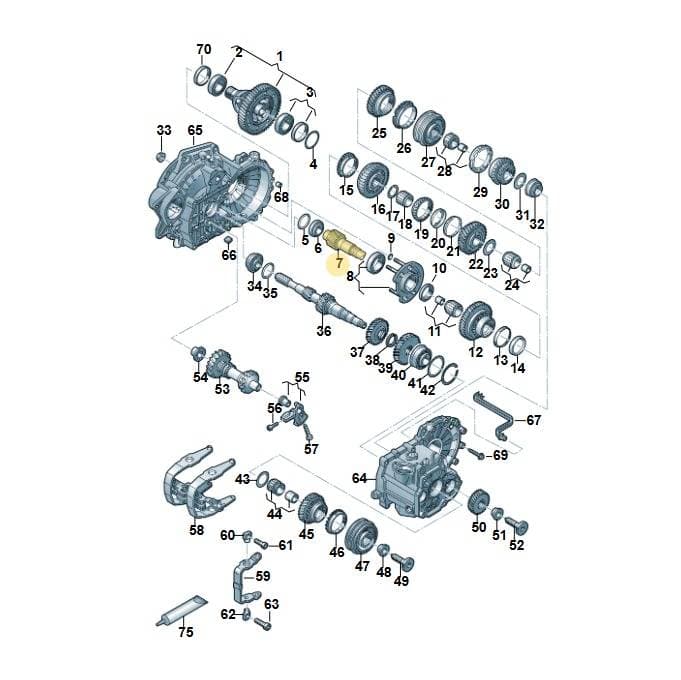

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Output Shaft, part number 02Z311205D. This shaft transmits rotational power from the gearbox to the drive axles. It is located within the gearbox assembly. The shaft is constructed from durable metal. Genuine OEM output shafts ensure efficient power delivery to the drive axles, maintaining vehicle mobility.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 87084099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 25.2 × 5.1 × 5.1 cm
- Shipping weight
- 1.97 kg
Parts diagram & fitment
23 vehiclesOutput Shaft — locate 02Z311205D Volkswagen Output Shaft | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 0C9311220A — the later replacement part.
Parts in this assembly(39)
- 1Shaft 02Z311205E
- 1Shaft 02Z311205C
- 2Shims 02Z398208
- 3Mounting 0C9311220A
- 4Bracket 02Z311206
- 5Seal Ring N90364901
- 6Collar Nut N01508311
- 7Washer 02A311221
- 8Gear 02Z311251A
- 9Bearing 02A311213C
- 10Ring 02J311247D
- 10AOuter Ring 02J311279
- 10BRing 02J311277B
- 11Synchr Hub 02J311239H
- 12Catch 084311313
- 13Spring 02F311336
- 14Ring 091311321A
- 15Bearing 02A311265D
- 19Gear 02J311261M
- 19Gear 02J311261G
- 20Washer 02A311175C
- 21Bearing 02J311325
- 22Gear 02Z311129
- 22Gear 02Z311129B
- 22Gear 02A311129AH
- 23Ring 02J311269E
- 24Synchr Hub 02J311301B
- 25Spring 088311311D
- 26Bearing 02A311115E
- 27Gear 02A311145K
- 27Gear 02Z311145A
- 27Gear 02Z311145
- 28Washer 02A311155A
- 29Sleeve 02Z311375A
- 30Gear 02A311361P
- 30Gear 02Z311361A
- 30Gear 02Z311361
- 31Spring 02Z311324
- 32Screw 0A4311335A
Compatible / alternative parts(12)
- Part 02Z311206
- Part 0C9311220B
- Part 02A311335D
- Part 02A311115D
- Part 0A4311335A
- Part 02A301215A
- Part 02A301215D
- Part 02A311115E
- Part 02A311115J
- Part 02A311324C
- Part 02M301189B
- Part 02M301189C
Diagrams & fitment data powered by oemdiagrams.com
02Z311205D Volkswagen Output Shaft | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
