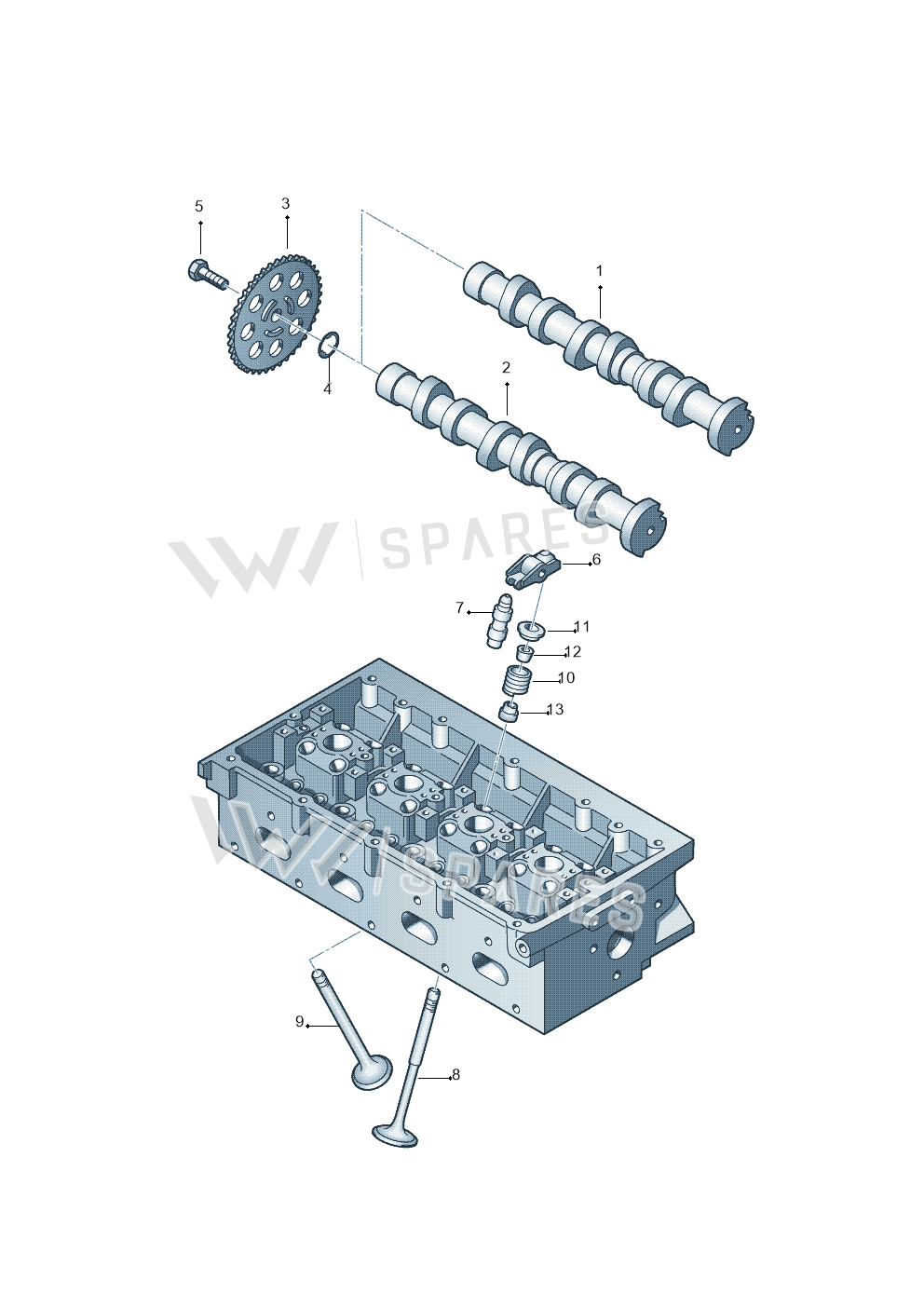

Washer exploded parts diagram — Toledo Reference · 2012-2015, position 4
Exploded view
Toledo Reference · 2012-2015 · position 4Full diagram ↓
036109497C

036109497C Washer

€9.99
incl. 21% VAT

€8.26 excl. VAT

Supersession roadoldest to newest
  1. 036109497BNot stocked
    Jan 2003
  2. 036109497CThis pageDiscontinued
    Oct 2022
Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

14 vehicles

Washer — locate Washer in the official exploded view and explore the surrounding assembly.

Parts in this assembly12
Vehicle fitment table14

Europe (14)

VehicleYearsPos.QtyRemarkPR
Toledo Reference2012-201542
Ibiza Reference2012-201242D21
Ibiza Reference2011-201242D21
Ibiza Reference2008-201142D21
ROOMSTER 06>2006-42
FABIA/COMBI NF 07>2006-42
IBIZA 06>2005-42MA5
CORDOBA 06>2005-42MA5
FABIA/COMBI 05>2004-42
CORDOBA/SE2412002-200542MA5
IBIZA2001-200542MA5
POLO2001-200542AZQMA5
AUDI A22000-20053C1T94
FABIA/COMBI1999-200442

Diagrams & fitment data powered by oemdiagrams.com

Washer is fitted on: Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Ibiza Reference 2008-2011; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; POLO 2001-2005; AUDI A2 2000-2005; FABIA/COMBI 1999-2004.
