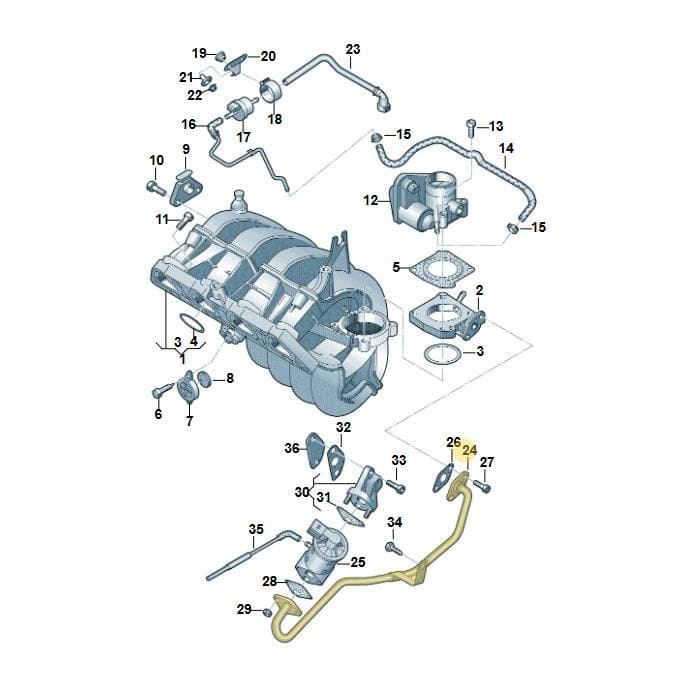

Number 24 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Connecting Pipe, part number 036131521AC. This pipe connects two or more components, often in fluid or gas transfer systems. It is located at position 24 in the diagram. The part weighs 0.2 kg.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45 × 10.5 × 5.5 cm
- Shipping weight
- 0.2 kg
Parts diagram & fitment
27 vehiclesConnecting Pipe — locate 036131521AC Volkswagen Connecting Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Connection 030129711BP
- 2Flange 036133255E
- 3Seal Ring 030133073D
- 3Seal 036133073
- 4Gask Set 030198717
- 4Seal 036129717E
- 5Seal 036133161C
- 6Sensor 036906051
- 6Sensor 06B906051
- 7Cover 036129720
- 8Valve 036129530
- 9Screw N90434702
- 10Screw N90635404
- 12Screw N10080204
- 12Screw N10099302
- 17Air Filter 037133843A
- 21Seal 036131550A
- 23Bolt N90413006
- 33Clamp N90686701
- 35Adapter 036131818A
- 36Seal 036131550H
- 37Seal 036131547F
- 40Collar Nut N0230038
- 41Screw N01472615
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
036131521AC Volkswagen Connecting Pipe | Genuine OEM is fitted on: CADDY-KOMBI/KASTEN 1995-2003; Golf 1998-2000; Jetta Wagon 2001-2001; LUPO/3L TDI 1998-2003; POLO CLASSIC/VARIANT 1999-2001; POLO 1999-2001; POLO 2001-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; New Beetle 2001-2005; New Beetle Cabrio. 2003-2005; POLO LIM.(SEDAN) "BR" 2002-2006; Jetta/Wagon 2002-2006; Golf 'R32' n. "USA" 2004-2004; LUPO/3L TDI 2003-2005; POLO CLASSIC "ZA"03>05 2003-2005; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; INCA (SEAT-VAN) 1995-2003; TOLEDO/LEON/LEON-4 1998-2001; CORDOBA/VARIO 1999-2002; IBIZA 1999-2002; IBIZA 2001-2005; TOLEDO/LEON/LEON-4 2001-2006; CORDOBA/SE241 2002-2005; AUDI A2 2000-2005; OCTAVIA/COMBI/4X4 01> 2000-.
