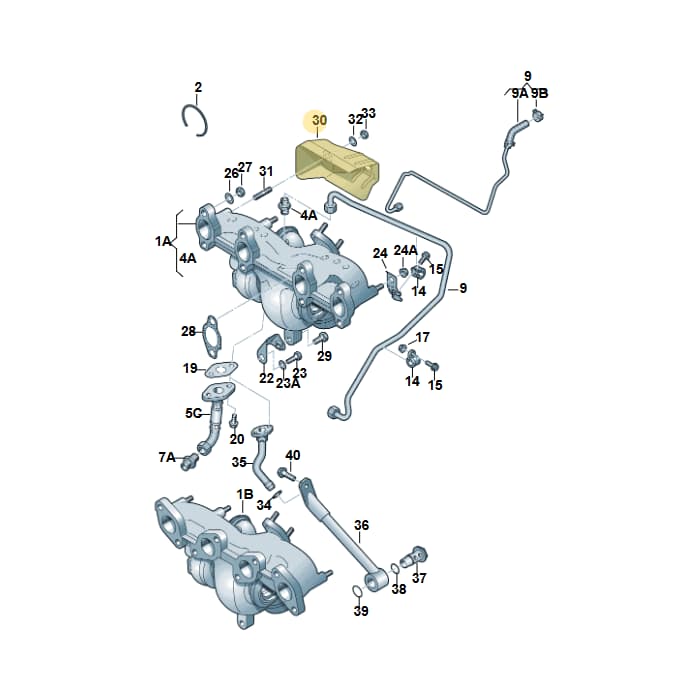

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield, part number 038129969A. This heat shield protects components in the intake system. It is located in the intake assembly. The part weighs 0.036 kg and measures 0.12m x 0.068m x 0.084m. Genuine OEM parts ensure exact fit and factory quality for optimal thermal protection.
Technical details
- Category
- Intake & Turbo
- Country of origin
- Switzerland
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 12 × 6.8 × 8.4 cm
- Shipping weight
- 0.04 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
101 vehiclesHeat Shield — locate 038129969A Volkswagen Heat Shield | Intake in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1ATurbo 038253056E
- 1ATurbo 038253056G
- 1ATurbo 038253056EX
- 1ATurbo 038253056GX
- 1ATurbo JZA253056EX
- 1BTurbo 03G253010JX
- 1BTurbo 03G253010J
- 4AUnion 028145786
- 4AUnion 059145911A
- 5COil Line 038145736C
- 7AUnion N90837101
- 9Oil Pipe 038145771AG
- 14Clamp N0206093
- 15Bolt N10082912
- 17Collar Nut N90175205
- 19Seal 028145757
- 20Bolt N90592703
- 22Support 038145535K
- 23Bolt N0102478
- 23AWasher N0154013
- 24Bracket 038145859F
- 24ACollar Nut N90200201
- 26Washer N90095501
- 28Seal 03G253039
- 28Seal 037253039D
- 29Bolt N10216803
- 30Heat Sh 03G129969G
- 31Bolt N0445113
- 32Washer N01155811
Compatible / alternative parts(5)
Vehicle fitment table101
Europe (89)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Altea XL Reference | 2010-2013 | 30 | 1 | BXE,BXF | |
| Leon Stylance | 2010-2012 | 30 | 1 | BXE,BXF | |
| Fabia Ambiente | 2009-2013 | 3 | 1 | ||
| Jetta Vagon 08> | 2008- | 30 | 1 | ||
| superb comfort | 2008-2013 | 30 | 1 | ||
| octavia ambiente | 2008-2013 | 30 | 1 | BJB,BXE | T71 |
| Audi A3 Sportback | 2008-2013 | 30 | 1 | T71 | |
| passat estate | 2008-2011 | 30 | 1 | ||
| jetta | 2008-2011 | 30 | 1 | ||
| caddy panel van | 2008-2010 | 30 | 1 | D3W | |
| Sharan | 2008-2010 | 13 | 1 | ||
| Touran 1.9 | 2008-2010 | 30 | 1 | BXF,BXE | T71 |
| Polo | 2008-2009 | 3 | 1 | BNV,BNM | |
| transp. caravelle | 2008-2009 | 4 | 1 | ||
| transp. dropside | 2008-2009 | 4 | 1 | ||
| California Camper | 2008-2009 | 4 | 1 | ||
| GOLF VARIANT 07> | 2007- | 30 | 1 | BXE | D3W |
| GOLF PLUS 08> | 2007- | 30 | 1 | BXE,BXF | |
| Passat/4Motion 08 | 2007- | 30 | 1 | ||
| TRANSPORTER GESCHL. 08 | 2007- | 4 | 1 | ||
| TRANSPORTER OFFEN 08 | 2007- | 4 | 1 | ||
| CAMPMOBIL-T5 08 | 2007- | 4 | 1 | ||
| Audi A3/S3/Sportb./qu. 08 | 2007- | 30 | 1 | BXE | T71 |
| JETTA 06> | 2006- | 30 | 1 | BKC,BXE | |
| TOURAN | 2006- | 30 | 1 | BXF,BXE | |
| ALTEA 07> | 2006- | 30 | 1 | BKC,BXE,BXF | |
| ROOMSTER 06> | 2006- | 3 | 1 | BNV,BNM | TA4 |
| FABIA/COMBI NF 07> | 2006- | 3 | 1 | BNV,BNM | TA4 |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 6 | 1 | TR0 | |
| Alhambra | 2006-2010 | 13 | 1 | ||
| TRANSPORTER/4MOTION 07 | 2006-2007 | 4 | 1 | ||
| TRANSPORTER OFFEN (7J) 07 | 2006-2007 | 4 | 1 | ||
| CAMPMOBIL (T5) 07 | 2006-2007 | 4 | 1 | ||
| FOX M.05> | 2005- | 3, 30 | 1 | ||
| GOLF PLUS 05> | 2005- | 30 | 1 | BKC,BRU,BXF, | |
| POLO | 2005- | 3 | 1 | BNV,BNM | |
| JETTA 06> | 2005- | 30 | 1 | BKC,BXE | D3W |
| New Beetle 06> | 2005- | 16 | 1 | BSW,BEW | |
| New Beetle Cabrio. 06> | 2005- | 16 | 1 | D3W | |
| SHARAN/4MOTION | 2005- | 13 | 1 | ||
| LEON 06> | 2005- | 30 | 1 | BKC,BXE,BXF | |
| IBIZA 06> | 2005- | 3 | 1 | BNM,ANV | D4S |
| CORDOBA 06> | 2005- | 3 | 1 | BNM,ANV | D4S |
| ALHAMBRA/4MOTION | 2005- | 13 | 1 | ||
| Audi A4/S4/Av./qu. 05> | 2005- | 6 | 1 | BKE,BPW,BRB | |
| Passat/4Motion | 2005-2007 | 30 | 1 | ||
| Audi A3/S3/quattro | 2005-2007 | 30 | 1 | BKC,BXE | T71 |
| TOURAN | 2005-2006 | 30 | 1 | ||
| TRANSPORTER/4MOTION 06 | 2005-2006 | 4 | 1 | ||
| TRANSPORTER 06 | 2005-2006 | 4 | 1 | ||
| CADDY | 2004- | 30 | 1 | D3W | |
| TOLEDO 05> | 2004- | 30 | 1 | BKC,BXE,BXF, | |
| OCTAVIA/COMBI/4X4 04> | 2004- | 30 | 1 | BJB,BKC,BXE | T71 |
| FABIA/COMBI 05> | 2004- | 3 | 1 | ||
| CAMPMOBILE(T5) | 2004-2006 | 4, 30 | 1 | ||
| ALTEA | 2004-2006 | 30 | 1 | BKC,BXE,BJB | |
| New Beetle Cabrio. | 2003-2005 | 16, 30 | 1 | MS7 | |
| TOURAN | 2003-2005 | 30 | 1 | AVQ,BKC,BRU | |
| TRANSPORTER | 2003-2005 | 4, 30 | 1 | ||
| GOLF | 2003-2005 | 30 | 1 | T71 | |
| Jetta/Wagon | 2002-2006 | 16, 30 | 1 | ATD,ARL,ASZ | |
| PASSAT/4MOTION/W8 | 2002-2005 | 6, 7 | 1 | ||
| SHARAN/4MOTION | 2002-2005 | 7 | 1 | ||
| CORDOBA/SE241 | 2002-2005 | 3 | 1 | D3 | |
| ALHAMBRA/4MOTION | 2002-2005 | 13 | 1 | ||
| SUPERB 02> | 2001- | 6 | 1 | ||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 16 | 1 | ARL,ASZ | |
| POLO | 2001-2005 | 3 | 1 | 0Y3 | |
| New Beetle | 2001-2005 | 16, 30 | 1 | ATD,BEW | MS7 |
| IBIZA | 2001-2005 | 3 | 1 | D3 | |
| Audi A4/S4/Av./qu. | 2001-2004 | 6 | 1 | ||
| Audi A6/Wagon/quattro | 2001-2004 | 6 | 1 | T9J | |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 16, 30 | 1 | ATD,ARL,ASZ | D3 |
| Jetta Wagon 02 | 2001-2002 | 16, 30 | 1 | ATD,ARL,ASZ | |
| Jetta Wagon | 2001-2001 | 16, 30 | 1 | ATD,ARL,ASZ | |
| PASSAT 00> | 2000- | 6, 13 | 1 | ||
| OCTAVIA/COMBI/4X4 01> | 2000- | 16 | 1 | ASZ,ATD | D3E |
| AUDI A2 | 2000-2005 | 26 | 1 | ||
| AUDI A3/S3/QUATTRO | 2000-2003 | 16 | 1 | ATD,ASZ,AXR | |
| Passat/4Motion/W8 | 2000-2002 | 6, 7 | 1 | D3E | |
| SHARAN/4MOTION | 2000-2002 | 7 | 1 | MF7 | |
| ALHAMBRA/4MOTION | 2000-2002 | 13 | 1 | ||
| FABIA/COMBI | 1999-2004 | 3 | 1 | ||
| New Beetle | 1998-2001 | 16, 30 | 1 | ATD | |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 16 | 1 | ARL | |
| Golf | 1998-2000 | 16, 30 | 1 | ATD,ARL,ASZ | |
| Passat | 1997-2000 | 6 | 1 | AVB | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 16 | 1 | ASZ | |
| SHARAN/SYNCRO | 1995-2000 | 13 | 1 | ANU |
Other markets (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| DIES.-IND.-MOT.1,9>2,0 08> | 2007- | 18 | 1 | ||
| Jetta City "Mex"08> | 2007- | 30 | 1 | ||
| Golf/Rabbit 08> | 2007- | 30 | 1 | BXE,BXF | T71 |
| Jetta City "MEX"05>07 | 2006-2007 | 30 | 1 | ||
| Jetta "USA"05> | 2005- | 30 | 1 | BKC,BXE | D3W |
| POLO CLASSIC "ZA"05> | 2005- | 3 | 1 | T0U | |
| Golf/Rabbit | 2005-2007 | 30 | |||
| Golf 'R32' n. "USA" | 2004-2004 | 16, 30 | 1 | ATD,ARL,ASZ | |
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 3 | 1 | MS7 | |
| Golf "BR.","USA"03>07 | 2002-2007 | 30 | 1 | "PR."+BEW | MS7 |
| BORA (FAW) | 2001-2006 | 16, 30 | 1 | ||
| Jetta USA | 2001-2005 | 30 | 1 | BEW | MS7 |
Diagrams & fitment data powered by oemdiagrams.com
038129969A Volkswagen Heat Shield | Intake is fitted on: Altea XL Reference 2010-2013; Leon Stylance 2010-2012; Fabia Ambiente 2009-2013; Jetta Vagon 08> 2008-; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3 Sportback 2008-2013; passat estate 2008-2011; jetta 2008-2011; caddy panel van 2008-2010; Sharan 2008-2010; Touran 1.9 2008-2010; Polo 2008-2009; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; JETTA 06> 2006-; TOURAN 2006-; ALTEA 07> 2006-; ROOMSTER 06> 2006-; FABIA/COMBI NF 07> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; Alhambra 2006-2010; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; FOX M.05> 2005-; GOLF PLUS 05> 2005-; POLO 2005-; JETTA 06> 2005-; New Beetle 06> 2005-; New Beetle Cabrio. 06> 2005-; SHARAN/4MOTION 2005-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; ALHAMBRA/4MOTION 2005-; Audi A4/S4/Av./qu. 05> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; CADDY 2004-; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; FABIA/COMBI 05> 2004-; CAMPMOBILE(T5) 2004-2006; ALTEA 2004-2006; New Beetle Cabrio. 2003-2005; TOURAN 2003-2005; TRANSPORTER 2003-2005; GOLF 2003-2005; Jetta/Wagon 2002-2006; PASSAT/4MOTION/W8 2002-2005; SHARAN/4MOTION 2002-2005; CORDOBA/SE241 2002-2005; ALHAMBRA/4MOTION 2002-2005; SUPERB 02> 2001-; TOLEDO/LEON/LEON-4 2001-2006; POLO 2001-2005; New Beetle 2001-2005; IBIZA 2001-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; PASSAT 00> 2000-; OCTAVIA/COMBI/4X4 01> 2000-; AUDI A2 2000-2005; AUDI A3/S3/QUATTRO 2000-2003; Passat/4Motion/W8 2000-2002; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; FABIA/COMBI 1999-2004; New Beetle 1998-2001; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; Passat 1997-2000; AUDI A3/S3/QUATTRO 1996-2000; SHARAN/SYNCRO 1995-2000; DIES.-IND.-MOT.1,9>2,0 08> 2007-; Jetta City "Mex"08> 2007-; Golf/Rabbit 08> 2007-; Jetta City "MEX"05>07 2006-2007; Jetta "USA"05> 2005-; POLO CLASSIC "ZA"05> 2005-; Golf/Rabbit 2005-2007; Golf 'R32' n. "USA" 2004-2004; POLO CLASSIC "ZA"03>05 2003-2005; Golf "BR.","USA"03>07 2002-2007; BORA (FAW) 2001-2006; Jetta USA 2001-2005.
