Alternator exploded parts diagram — SURAN (FOX MPV) "RA."06> · 2006-, position 1

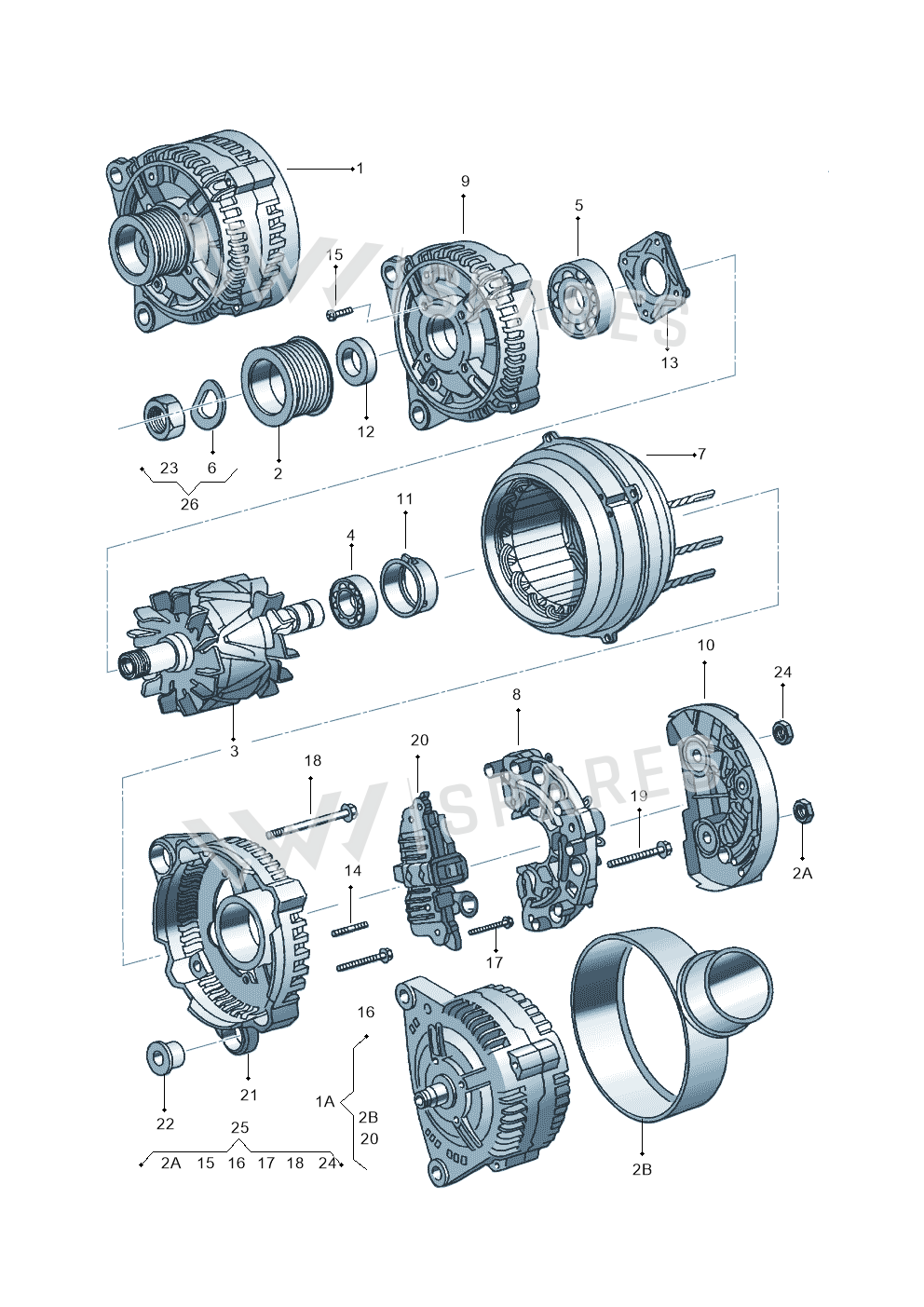

Exploded view
SURAN (FOX MPV) "RA."06> · 2006- · position 1Full diagram ↓
038903023L

038903023L Alternator

€656.87
incl. 21% VAT

€542.87 excl. VAT

Supersession roadforks into 2
  1. 038903023LThis pageNot stocked
  2. 038903024DNot stocked
    Apr 2005
  1. 038903018PDiscontinued
    Oct 2025
  2. 022903119CCurrent number
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

2 vehicles

Alternator — locate Alternator in the official exploded view and explore the surrounding assembly.

Parts in this assembly29
Vehicle fitment table54

Other markets (2)

VehicleYearsPos.Remark
SURAN (FOX MPV) "RA."06>2006-114V/90A
Jetta "USA"99>011998-200114ALH

Listed without a diagram position (52)

VehicleYearsPos.Remark
Ibiza Reference2008-201113BLS,BXJ
Polo2008-200913ASY,ATD,AXR,
ROOMSTER 06>2006-13BSW,AXR
FABIA/COMBI NF 07>2006-13BSW
POLO2005-13ASY,ATD,AXR,
New Beetle 06>2005-5BSW,BEW
New Beetle Cabrio. 06>2005-5BSW
IBIZA 06>2005-13ASY,ASZ,ATD,
CORDOBA 06>2005-13ASY,ASZ,ATD,
FABIA/COMBI 05>2004-13ASY
CAMPMOBILE(T5)2004-20061AXB
FOX 04>2003-10ASY
New Beetle Cabrio.2003-20056AXR
TRANSPORTER2003-20051AXB,AXC
Jetta/Wagon2002-20069AQN,BDE,AQM,
SHARAN/4MOTION2002-20051ANU,AUY
CORDOBA/SE2412002-200513ASY,ASZ,ATD
ALHAMBRA/4MOTION2002-20051ANU,AUY
TOLEDO/LEON/LEON-42001-20062AGR,ALH,BDE,
POLO2001-20058ASY,ATD,AXR,
New Beetle2001-200510AQN,ALH,ATD
IBIZA2001-200513ASY,ASZ,ATD,
GOLF/VAR./4MOT. A4 022001-20029AQN,BDE,AQM,
Jetta Wagon 022001-20029AQN,BDE,AQM,
Jetta Wagon2001-200114AHF,AGZ,AJM,
OCTAVIA/COMBI/4X4 01>2000-6AQM,AGR,ALH,
AUDI A3/S3/QUATTRO2000-20036ALH,ATD,AHF,
SHARAN/4MOTION2000-20021ANU,AUY
ALHAMBRA/4MOTION2000-20021ANU,AUY
FABIA/COMBI1999-200413ASY,ATD,ASZ
CORDOBA/VARIO1999-20027
IBIZA1999-20027
POLO CLASSIC/VARIANT1999-20017
New Beetle1998-200114ALH,AQN,ATD
TOLEDO/LEON/LEON-41998-200114AGR,ALH,AHF,
Golf1998-200014AGP,AGR,AHF,
ALHAMBRA1996-200014AFN,AJH,AVG
OCTAVIA/COMBI/4X41996-200014AGP,AGR,AHF
AUDI A3/S3/QUATTRO1996-200014AGR,AHF,ALH,
CADDY-KOMBI/KASTEN1995-200313AYQ,ALH
INCA (SEAT-VAN)1995-200313AYQ
SHARAN/SYNCRO1995-200014AHU,AFN,AJH,
DIES.-IND.-MOT.1,9>2,01990-20072PR:8GD:BJC
OTTO-IND.-MOT. 77>1977-2PR:LE1+BMF
POLO HATCH "BR."07>2006-11ASY
POLO SEDAN "BR."07>2006-11ASY
POLO CLASSIC "ZA"05>2005-13ASZ,ATD
Golf 'R32' n. "USA"2004-20049ASZ,AXR,ATD,
POLO CLASSIC "ZA"03>052003-200515
POLO-BRASIL2002-200611ASY
POLO LIM.(SEDAN) "BR"2002-200611ASY
Jetta USA2001-200510ALH.BDF,BEW

Diagrams & fitment data powered by oemdiagrams.com

Alternator is fitted on: SURAN (FOX MPV) "RA."06> 2006-; Jetta "USA"99>01 1998-2001.
