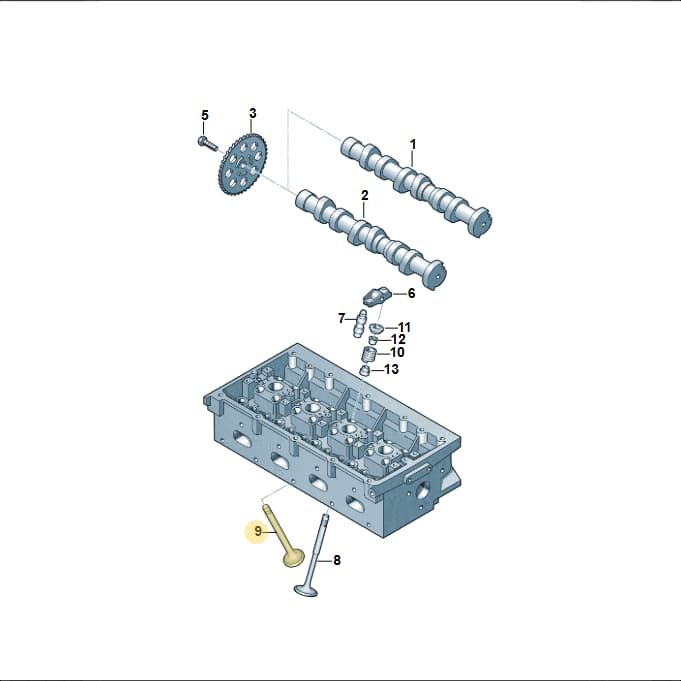

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Exhaust Valve, part number 03C109611R. This critical component controls the precise release of hot exhaust gases from the engine's combustion chamber. It is located within the cylinder head, opening and closing in sync with the camshaft to manage exhaust flow. Weighing approximately 0.037 kg and measuring 0.102 m in length, it is constructed from specialized heat-resistant steel alloy. Choosing a genuine OEM exhaust valve ensures factory-specified material composition and precise dimensions for optimal sealing, extreme temperature resistance, and long-term engine performance.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 10.2 × 2.6 × 2.6 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment
16 vehiclesExhaust Valve — locate 03C109611R Audi Engine Exhaust Valve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(16)
- 1Camshaft 03C109101CR
- 2Camshaft 03C109101CS
- 3Adjuster 03C109088C
- 4Sleeve 03C103825A
- 5Screw 03C109282C
- 6Chn Sprckt 03C109571F
- 7Bolt N90256202
- 8Roller Roc 036109411G
- 9Equal Element 036109423D
- 10Valve 03C109601M
- 10Valve 03C109601J
- 11Valve 03C109611G
- 12Spring 036109623R
- 13Springseat 036109641B
- 14Cotter Pin 036109651
- 15Seal 06B109675B
Compatible / alternative parts(12)
- Part 036109601AD
- Part 030109675G
- Part 036109601AL
- Part 03C109601J
- Part 03C109601M
- Part 036103384B
- Part 036109675
- Part 036109675A
- Part 036109675C
- Part 03E103383F
- Part 03E103383H
- Part 06B109675B
Diagrams & fitment data powered by oemdiagrams.com
03C109611R Audi Engine Exhaust Valve | Genuine OEM is fitted on: TOURAN (SVW) "CN"04> 2004-; Polo Vivo 2017-; Tiguan 2009-2019; New Polo (SVW) 2010-2019; New Passat 2011-2019; Polo Vivo 2014-2017; jetta 2014-2017; Jetta 1.6 2014-2018; Ameo 1,0 2016-2020; OCTAVIA "CN."07> 2007-; Fabia Jingrui 2008-2014; Superb Ambition 2009-2015; Fabia Scout 2010-2014; Fabia Ambiente 2009-2013; Rapid Ambition 2011-2021; Rapid 2012-2022.
