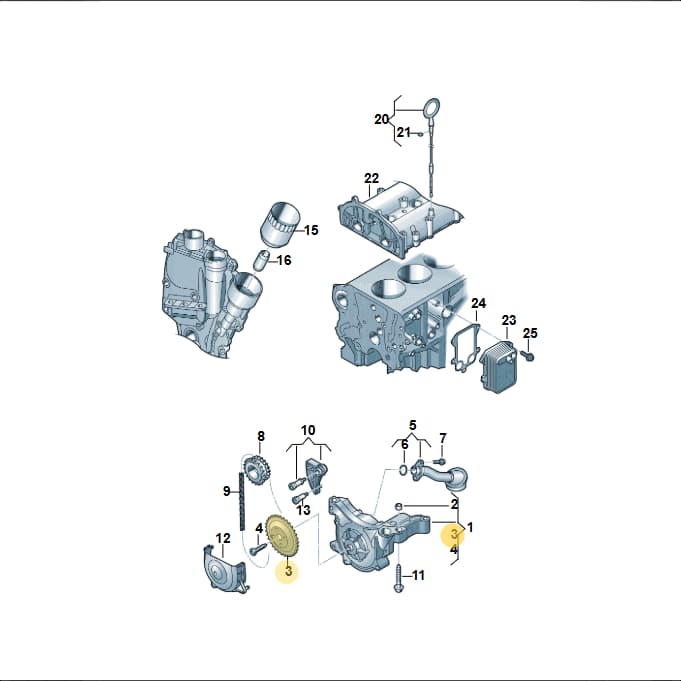

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Engine Sprocket, part number 03C115121J. This toothed wheel is a vital component within the engine, designed to engage with a drive chain or belt to transmit rotational motion and power. It is typically found in assemblies such as the oil pump drive or timing system, ensuring precise synchronization of engine components. With a diameter of approximately 74mm, this sprocket is engineered for durability and accurate engagement. Using a genuine OEM sprocket guarantees the correct tooth profile, material hardness, and dimensional accuracy, which are crucial for smooth operation, reduced wear on the chain, and the overall longevity of the engine's internal mechanisms.
Catalogue entry: CHN SPRCKT Z=29 CAVE,CAVF,; CNUB,CTHF,; CTJB,CTHE,; CTJC.
Fitted with: 03C115121N CHN SPRCKT, N90365901 BOLT.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84139100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 7.4 × 7.4 × 1.2 cm
- Shipping weight
- 0.15 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- TF0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
61 vehiclesChain Sprocket — locate 03C115121J Audi Engine Sprocket | Oil Pump Drive in the official exploded view and explore the surrounding assembly.
Superseded by 034115147A — the current replacement part (via 03C109287F).
Parts in this assembly18
- 1Oil Pump 03C115105Q
- 2Sleeve 03C115143
- 4Bolt N90365901
- 5Part 03C115251M
- 6Seal Ring N0282222
- 7Bolt N10124408
- 9Chain 03C115225A
- 10Tensioner 03C109507AD
- 11Bolt N90704006
- 12Cover 03C103669E
- 13Screw 03C103714B
- 15Oil Filter 03C115561B
- 16Union 03C115721D
- 20Oil Dipsti 03C115611T
- 21Seal Ring 03C115331A
- 23Oil Cooler 03C117021J
- 24Seal 03C115111D
- 25Bolt N10451405
Compatible / alternative parts(12)
Vehicle fitment table61
Europe (53)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Beetle | 2016-2019 | 3 | 1 | ||
| new beetle cabriolet | 2016-2019 | 3 | 1 | ||
| Jetta 1.6 | 2014-2018 | 3 | 1 | ||
| Scirocco 2.0 | 2014-2017 | 3 | 1 | ||
| jetta | 2014-2017 | 3 | 1 | ||
| Yeti | 2013-2017 | 3 | 1 | D4X | |
| Jetta 1.4 | 2013-2015 | 3 | 1 | ||
| superb | 2013-2015 | 3 | |||
| jetta | 2013-2014 | 3 | 1 | ||
| Altea XL Reference | 2013-2013 | 3 | 1 | D33 | |
| Rapid | 2012-2022 | 3 | |||
| Toledo Reference | 2012-2015 | 3 | 1 | TU0 | |
| Polo | 2012-2014 | 3 | 1 | D32 | |
| Ibiza Reference | 2012-2012 | 3 | 1 | CAV | E,C |
| Tiguan 4Motion | 2011-2018 | 3 | 1 | ||
| new beetle | 2011-2016 | 3 | 1 | ||
| new beetle cabriolet | 2011-2016 | 3 | 1 | ||
| Golf Cabriolet | 2011-2016 | 3 | 1 | D4L | |
| Passat CC | 2011-2016 | 3 | 1 | D4L | |
| Golf Plus | 2011-2014 | 3 | 1 | D4X | |
| Golf | 2011-2013 | 3 | 1 | D4X | |
| Ibiza Reference | 2011-2012 | 3 | 1 | CAVE,CAVF | TF0 |
| Sharan Blue Motion | 2010-2015 | 3 | 1 | D31 | |
| Touran 2.0 | 2010-2015 | 3 | 1 | ||
| Passat saloon | 2010-2015 | 3 | 1 | D4X | |
| Eos BlueMotion | 2010-2015 | 3 | 1 | ||
| Roomster | 2010-2015 | 3 | 1 | ||
| Audi A1 Sportback | 2010-2015 | 3 | 1 | DP4 | |
| jetta | 2010-2014 | 3 | 1 | ||
| Fabia Scout | 2010-2014 | 3 | 1 | ||
| Altea XL Reference | 2010-2013 | 3 | 1 | D33 | |
| Alhambra Stylance | 2010-2013 | 3 | 1 | ||
| Golf | 2009-2014 | 3 | 1 | TT3 | |
| golf estate | 2009-2013 | 3 | 1 | ||
| Yeti | 2009-2013 | 3 | 1 | D4X | |
| Fabia Ambiente | 2009-2013 | 3 | 1 | D3H | |
| Scirocco 2.0 | 2008-2014 | 3 | 1 | D4X | |
| superb comfort | 2008-2013 | 3 | |||
| octavia ambiente | 2008-2013 | 3 | |||
| passat estate | 2008-2011 | 3 | 1 | D42 | |
| Touran 1.9 | 2008-2010 | 3 | 1 | ||
| GOLF VARIANT 07> | 2007- | 3 | 1 | ||
| GOLF PLUS 08> | 2007- | 3 | 1 | BLG,BMY | D4P |
| Passat/4Motion 08 | 2007- | 3 | 1 | D4X | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 3 | 1 | D33,G0K | |
| JETTA 06> | 2006- | 3 | 1 | BLG,BMY | D4P |
| TOURAN | 2006- | 3 | 1 | BMY,BLG | D4R |
| FABIA/COMBI NF 07> | 2006- | 3 | 1 | ||
| ALTEA 07> | 2006- | 3 | 1 | D33 | |
| GOLF PLUS 05> | 2005- | 3 | 1 | BLG,BMY | D4P |
| LEON 06> | 2005- | 3 | 1 | D33 | |
| TOURAN | 2005-2006 | 3 | 1 | BMY | D4R |
| TOLEDO 05> | 2004- | 3 | 1 | D33 |
Other markets (8)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Sagitar | 2011- | 3 | 1 | ||
| Rapid Ambition | 2011-2021 | 3 | 1 | D3H | |
| Magotan 1.4 | 2011-2012 | 3 | 1 | TT3 | |
| bora | 2008-2016 | 3 | 1 | TT3 | |
| Golf/Rabbit 08> | 2007- | 3 | 1 | BLG,BMY | D4P |
| MAGOTAN (PASSAT) 07> | 2007- | 3 | 1 | ||
| BORA-FAW "CN" 06> | 2005- | 3 | 1 | ||
| Golf/Rabbit | 2005-2007 | 3 | 1 | BLG,BMY | D4P |
