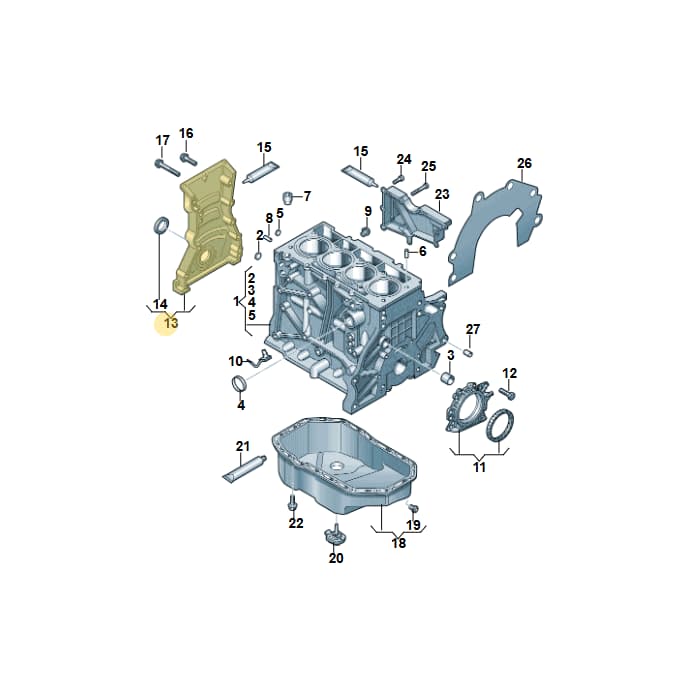

Number 13 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Timing Case, part number 03F109210D. This case houses and protects the engine's timing components, ensuring accurate synchronization of the crankshaft and camshaft. It is located on the front of the engine, enclosing the timing belt or chain. Constructed from durable cast aluminum for long-lasting performance.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.3 × 20 × 4.6 cm
- Shipping weight
- 0.71 kg
Parts diagram & fitment
27 vehiclesTiming Case — locate 03F109210D Volkswagen Timing Case | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1Cylinder Block 03F103101B
- 2Cover N0119096
- 3Cover 03C103113
- 4Cover 036103113
- 5Cover N10218603
- 6Sleeve 03C103143
- 7Valve 03F103156A
- 8Part N0432072
- 9Screw N90856005
- 10Vent 03C103157A
- 11Flange 036103171B
- 12Bolt N90842402
- 14Radial Sea 038103085C
- 15Seal D176501A1
- 16Socket N10734501
- 17Socket N10734401
- 18Oil Sump 03C103601BK
- 19Bolt N90813202
- 21Seal D176600A1
- 22Screw N10248003
- 23Separator 03F103464D
- 24Bolt N90737803
- 25Screw N10470703
- 26Spacer Pl 03C103551L
Compatible / alternative parts(12)
- Part 058103598D
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
- Part D176404A2
- Part D176404A3
- Part D176404M2
- Part D176501A1
- Part D176600A1
- Part D176600M1
- Part DCN176501Z1
Diagrams & fitment data powered by oemdiagrams.com
03F109210D Volkswagen Timing Case | Genuine OEM is fitted on: Polo 2009-2014; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Golf 2011-2013; Golf Plus 2011-2014; Polo 2012-2014; Polo 1.6 2013-2022; jetta 2014-2017; Polo 2014-2022; Beetle 2016-2019; new beetle cabriolet 2016-2019; octavia ambiente 2008-2013; Yeti 2009-2013; Fabia Scout 2010-2014; Roomster 2010-2015; Rapid 2012-2022; Yeti 2013-2017; Leon Stylance 2010-2012; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; Altea XL Reference 2013-2013; Audi A1 Sportback 2010-2015.
