03G131521A Connecting Pipe
€179.69 excl. VAT
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

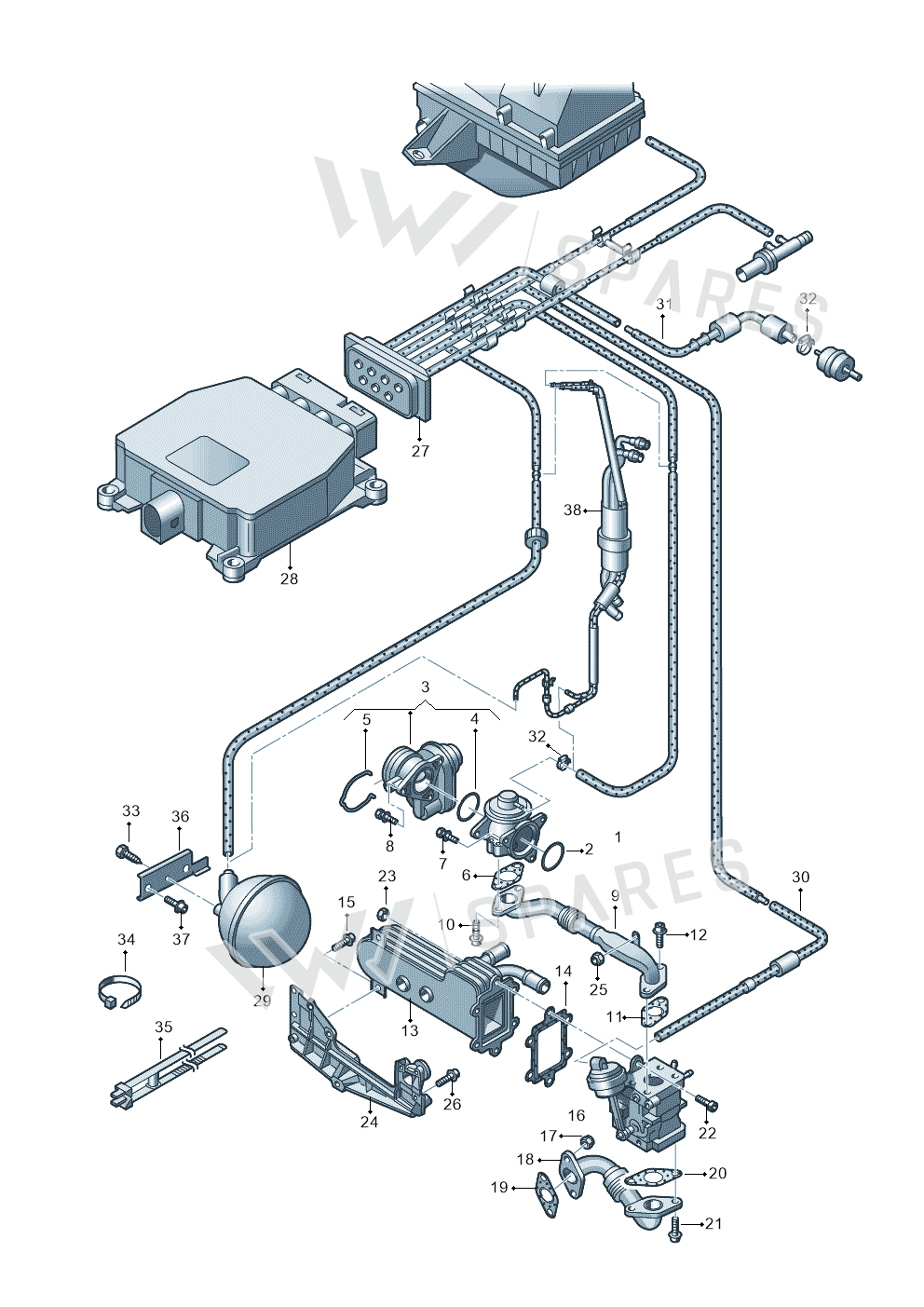

25 vehiclesConnecting Pipe — locate Connecting Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Valve 038131501AN
- 2Seal Ring N90927302
- 3Thr Flap 038128063L
- 4Seal Ring N90978701
- 5Clip 1J0145769G
- 6Seal 069131547D
- 7Bolt N10124408
- 8Screw N10553101
- 8Screw N90338204
- 10Screw N91048802
- 13Radiator 03G131512L
- 14Seal 038131547
- 17Collar Nut N90200201
- 18Pipe 03G131521T
- 19Seal 038131547A
- 22Screw N10653601
- 23Part N01100636
- 24Bracket 03G131159
- 25Collar Nut N01508213
- 27Hose 03G131051H
- 27Hose 03G131051L
- 29Damper 7M0129808
- 30Hose 03G131605K
- 32Clamp N10279301
- 33Screw N0138845
- 34Cable Tie 3D0971838N
- 35Binder 4A0820199
- 36Bracket 03G103369
Vehicle fitment table25
Europe (22)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Altea XL Reference | 2010-2013 | 9 | 1 | D3X |
| Leon Stylance | 2010-2012 | 9 | 1 | D3X |
| superb comfort | 2008-2013 | 9 | 1 | |
| octavia ambiente | 2008-2013 | 9 | 1 | |
| Touran 1.9 | 2008-2010 | 9 | 1 | |
| GOLF VARIANT 07> | 2007- | 9 | 1 | D3X |
| GOLF PLUS 08> | 2007- | 9 | 1 | |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 9 | 1 | T9G |
| JETTA 06> | 2006- | 9 | 1 | |
| TOURAN | 2006- | 9 | 1 | |
| ALTEA 07> | 2006- | 9 | 1 | D3X |
| GOLF PLUS 05> | 2005- | 9 | 1 | |
| JETTA 06> | 2005- | 9 | 1 | |
| LEON 06> | 2005- | 9 | 1 | D3X |
| Passat/4Motion | 2005-2007 | 9 | 1 | |
| Audi A3/S3/quattro | 2005-2007 | 9 | 1 | T9G |
| TOURAN | 2005-2006 | 9 | 1 | |
| TOLEDO 05> | 2004- | 9 | 1 | D3X |
| OCTAVIA/COMBI/4X4 04> | 2004- | 9 | 1 | |
| ALTEA | 2004-2006 | 9 | 1 | D3X |
| TOURAN | 2003-2005 | 9 | 1 | |
| GOLF | 2003-2005 | 9 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 9 | 1 | |
| Jetta "USA"05> | 2005- | 9 | 1 | |
| Golf/Rabbit | 2005-2007 | 9 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Pipe is fitted on: Altea XL Reference 2010-2013; Leon Stylance 2010-2012; superb comfort 2008-2013; octavia ambiente 2008-2013; Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; GOLF PLUS 08> 2007-; Audi A3/S3/Sportb./qu. 08 2007-; JETTA 06> 2006-; TOURAN 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; OCTAVIA/COMBI/4X4 04> 2004-; ALTEA 2004-2006; TOURAN 2003-2005; GOLF 2003-2005; Golf/Rabbit 08> 2007-; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007.
