Product overview

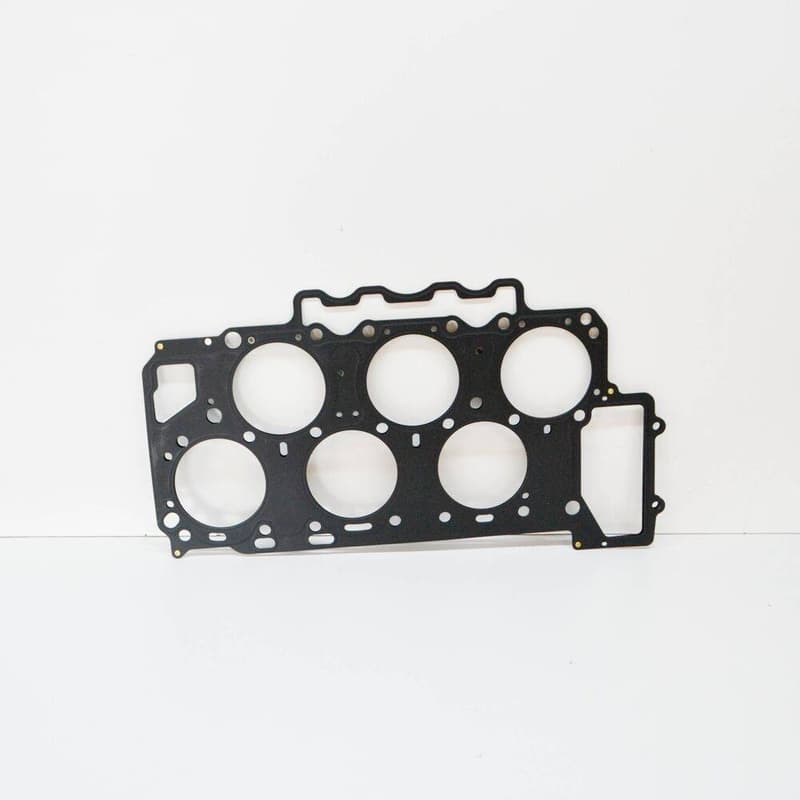

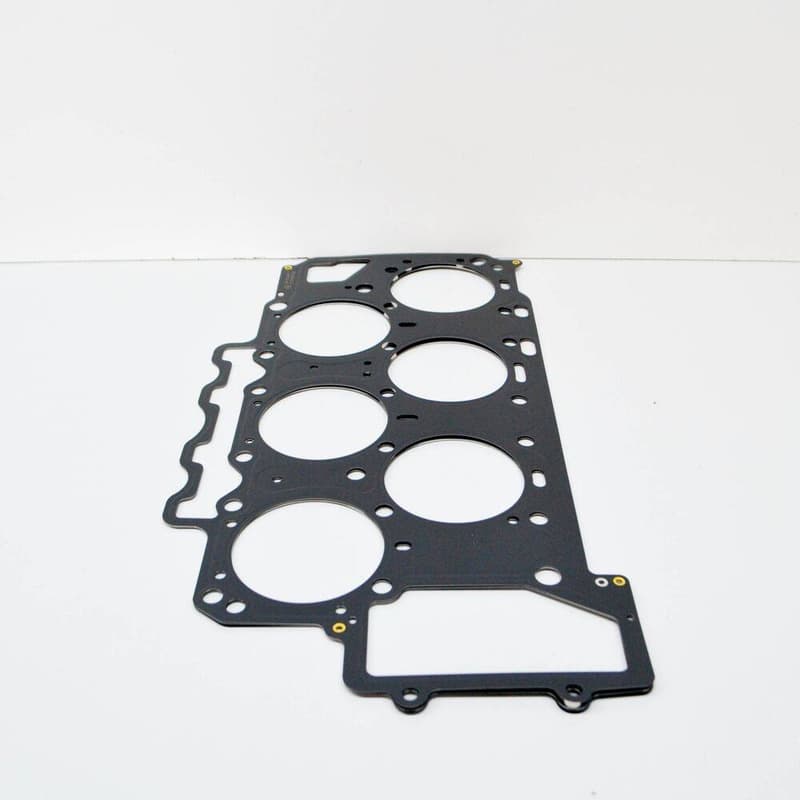

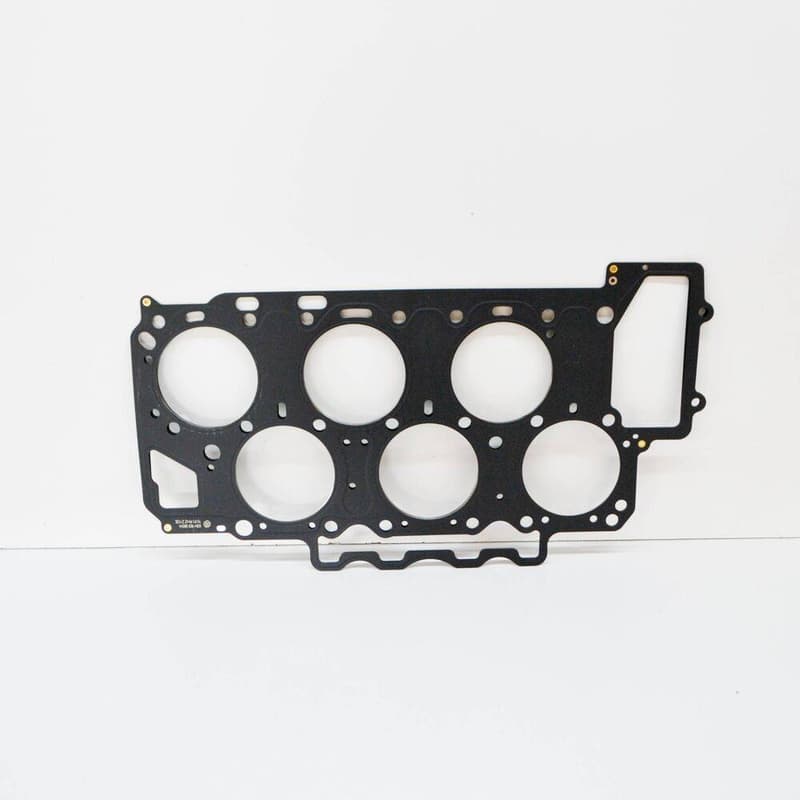

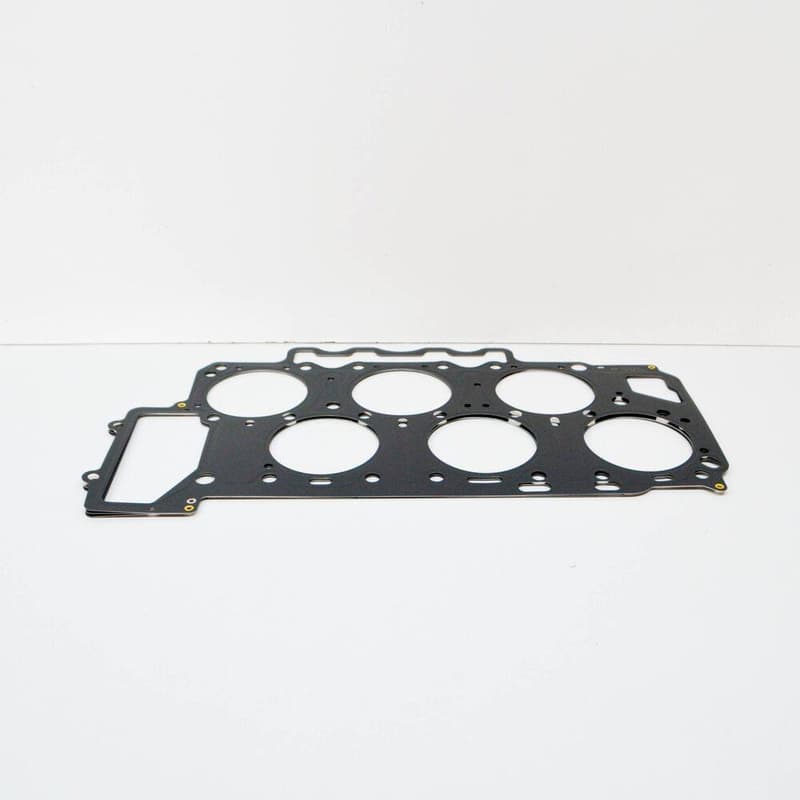

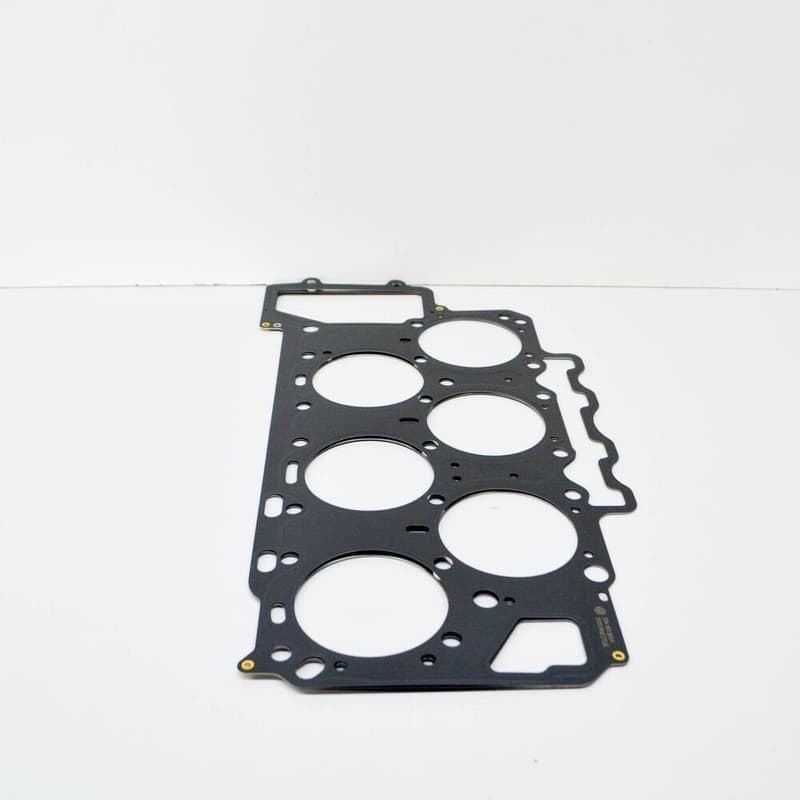

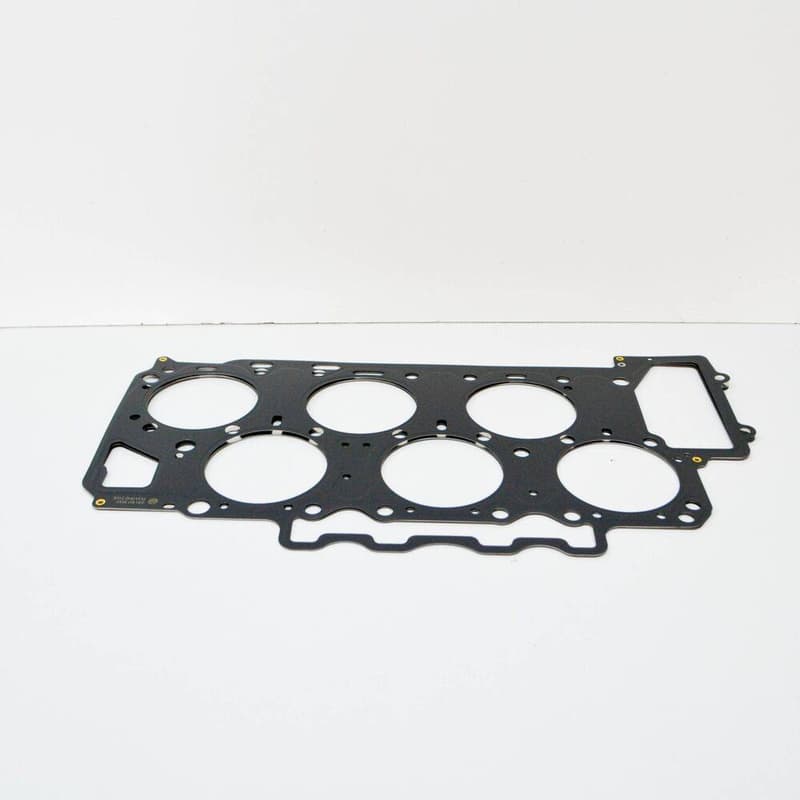

Genuine OEM Audi Cylinder Head Gasket, part number 03H103383K. This critical component is positioned between the cylinder head and engine block, providing a vital seal for the combustion chambers, coolant passages, and oil galleries. It maintains engine compression and prevents the intermixing of fluids. Weighing 0.473 kg and with a thickness of 0.003 m, this gasket is typically a multi-layer steel (MLS) design. Choosing a genuine OEM cylinder head gasket ensures the correct material, thickness, and sealing properties, which are essential for engine integrity and preventing catastrophic failures.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 51.2 × 29.3 × 0.3 cm
- Shipping weight
- 0.47 kg
Parts diagram & fitment
27 vehiclesCylinder Head Gasket (metal) — locate 03H103383K Audi Cylinder Head Gasket | Engine Seal in the official exploded view and explore the surrounding assembly.
Superseded by WHT000497A — the later replacement part.
Parts in this assembly(22)
- 1Cylinder Head 03H103063AG
- 2Bolt 030103397A
- 3Collar Nut N90279006
- 4Bolt N0444087
- 5Cover N90898202
- 6Part N90332701
- 8Screw WHT005465
- 9Screw WHT005466
- 10Cover 03H109122J
- 11Seal 03H109091
- 12Bolt N10124408
- 13Seal D176501A1
- 14Retainer 03H103390E
- 15Retainer 022103392
- 16Screw N91084201
- 17Cover 03H103429K
- 17Cover 03H103429S
- 18Bolt 03H103831
- 19Seal 03H103483E
- 20Cover 06B103485C
- 21Seal 06A103483D
- 22Hose 03H103202D
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03H103383K Audi Cylinder Head Gasket | Engine Seal is fitted on: Atlas Cross Sport 2019-2023; 06A platform; Passat/4Motion 2005-2007; Touareg 2005-2006; Touareg 08> 2007-; Passat/4Motion 08 2007-; Passat CC 2008-2012; EOS 2.0 2008-2010; passat estate 2008-2011; phaeton 4motion 2008-2010; New Passat 2011-2015; touareg 2010-2012; Passat saloon 2010-2015; 3C0 platform; phaeton 4motion 2010-2016; New Passat 2011-2019; Magotan 1.4 2011-2012; Passat CC 2011-2016; touareg 2012-2014; Touareg BlueMotion 2014-2018; Atlas 2016-2023; New Passat 2015-2022; Audi Q7 07> 2006-; Audi Q7 qu. 3.0 TDI 2009-2015; superb comfort 2008-2013; superb 2013-2015.
