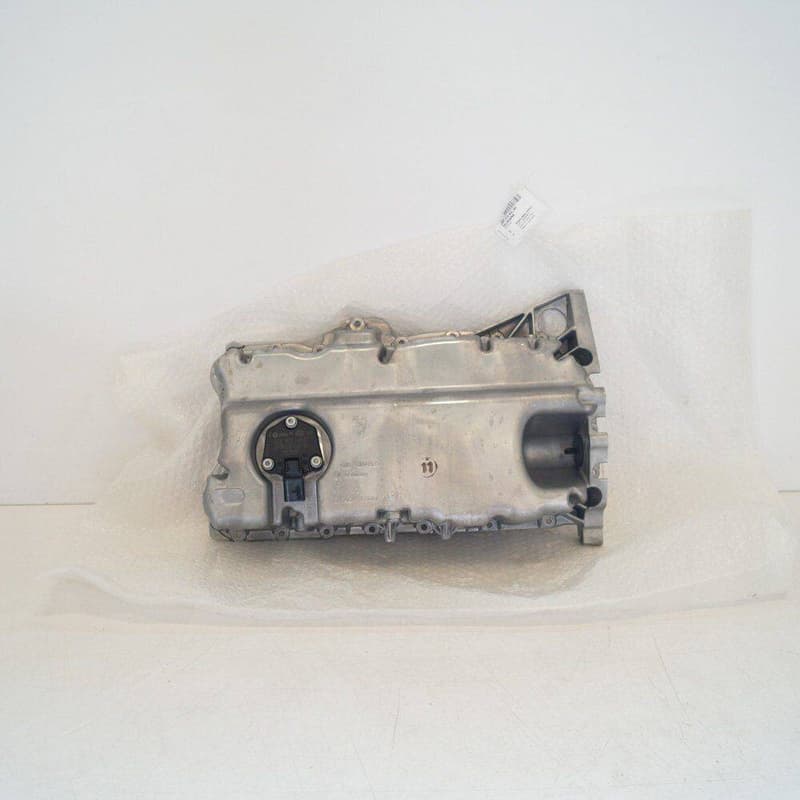

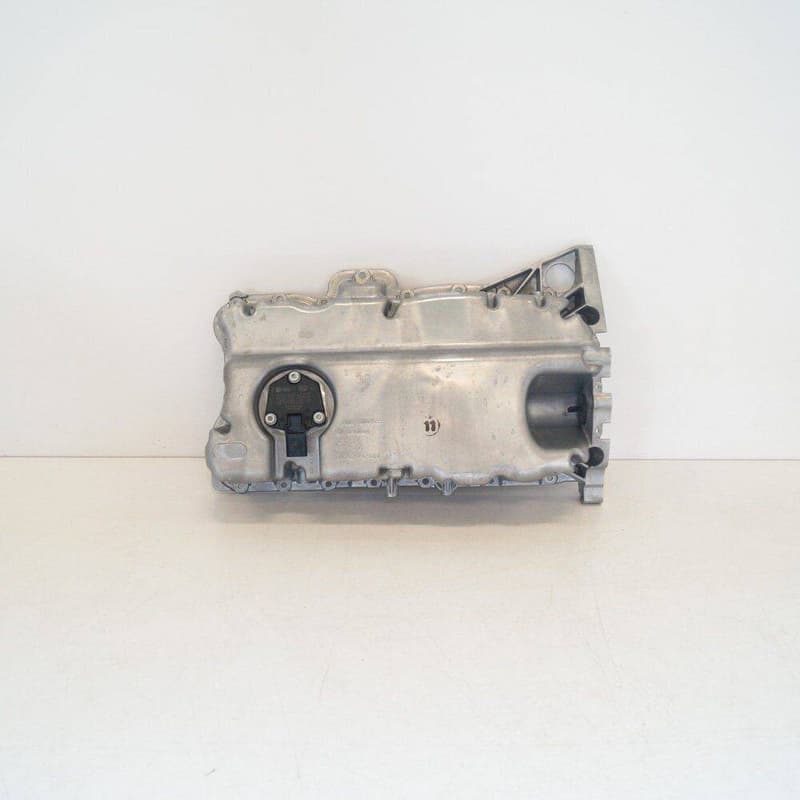

Genuine OEM Volkswagen Engine Oil Sump Pan, part number 03H103601AK. This essential component is located at the bottom of the engine, serving as a reservoir to store engine oil for lubrication and cooling. It often includes provisions for an oil level sensor and the oil drain plug. Weighing 3.185 kg, this pan is typically made from cast aluminum or stamped steel. A genuine OEM oil pan ensures precise fitment, proper oil capacity, and compatibility with integrated sensors, preventing leaks and maintaining engine health.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 30 × 13 cm
- Shipping weight
- 3.19 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesEngine Oil Sump With Oil Level Sensor — locate 03H103601AK Volkswagen Engine Oil Sump Pan | Oil Storage in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 2Bungs 022103498A
- 3Bolt N90813202
- 5Bolt N10124408
- 6Seal D176501A1
- 7Screw N90365801
- 9Cover N10218603
- 10Cover 036103113A
- 11Bungs 03H103141
- 13Connection 071103233
- 14Part N91017001
- 15Vent 03H103157
- 16Sleeve 022103139B
- 17Sleeve N90502601
- 18Flange 03H103173
- 18Flange 03H103173D
- 19Seal 021103051C
- 20Bolt N10116003
- 21Bolt N10082912
- 22Screw N90355905
- 23Flange 03H103151B
- 24Bolt N10029205
- 25Cleaner D291091A1
Vehicle fitment table5
Other markets (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Atlas Cross Sport | 2019-2023 | 1 | 1 |
| Atlas | 2016-2023 | 1 | 1 |
| New Passat | 2015-2022 | 1 | 1 |
| New Passat | 2011-2019 | 1 | 1 |
| 3C0 platform | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03H103601AK Volkswagen Engine Oil Sump Pan | Oil Storage is fitted on: Atlas Cross Sport 2019-2023; Atlas 2016-2023; New Passat 2015-2022; New Passat 2011-2019; 3C0 platform.
