Target · Diagram
Find this reference above

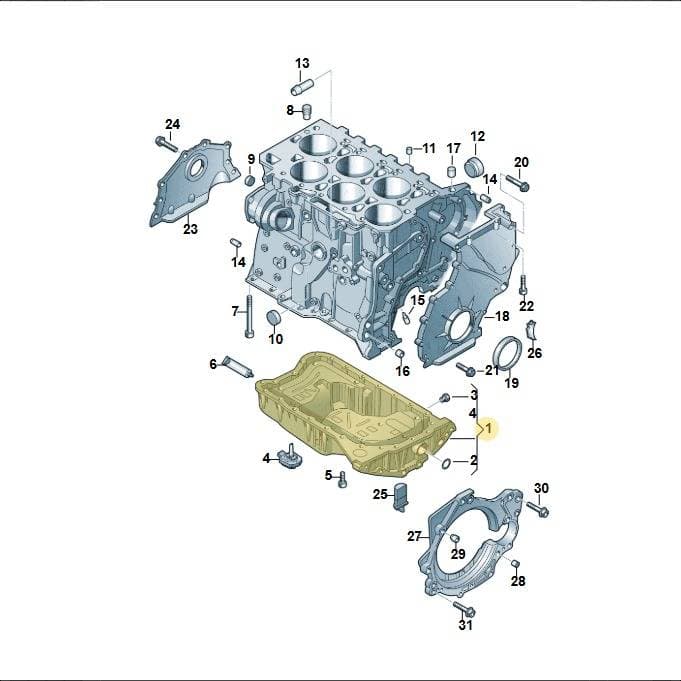

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Oil Sump, part number 03H103601M. This sump collects and stores engine oil, providing a reservoir for the lubrication system. It is the lowest part of the engine's oil system. Made from stamped steel or aluminum for durability and corrosion resistance. Genuine OEM oil sumps are designed with precise dimensions to ensure proper oil capacity and drainage, critical for engine longevity.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 46 × 30.5 × 13.5 cm
- Shipping weight
- 4.53 kg
Parts diagram & fitment
1 vehicleEngine Oil Sump With Oil Level Sensor — locate 03H103601M Volkswagen Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 3Bolt N90813202
- 5Bolt N10124408
- 6Cleaner D291091A1
- 6Seal D176501A1
- 7Screw N90365801
- 9Cover N10218603
- 10Cover 036103113A
- 11Bungs 03H103141
- 13Connection 071103233
- 14Part N91017001
- 15Vent 03H103157
- 16Sleeve 022103139B
- 17Sleeve N90502601
- 18Flange 03H103173
- 19Seal 021103051C
- 20Bolt N10116003
- 21Bolt N10082912
- 22Screw N90355905
- 23Flange 03H103151B
- 24Bolt N10029205
- 25Part 022103534A
- 26Bungs 03H103037
- 27Spacer Pl 022103551A
- 29Sleeve 012301153
- 30Screw N91055101
- 31Screw N90780802
Diagrams & fitment data powered by oemdiagrams.com
03H103601M Volkswagen Engine Oil Sump | Genuine OEM is fitted on: phaeton 4motion 2010-2016.
