Target · Diagram
Find this reference above

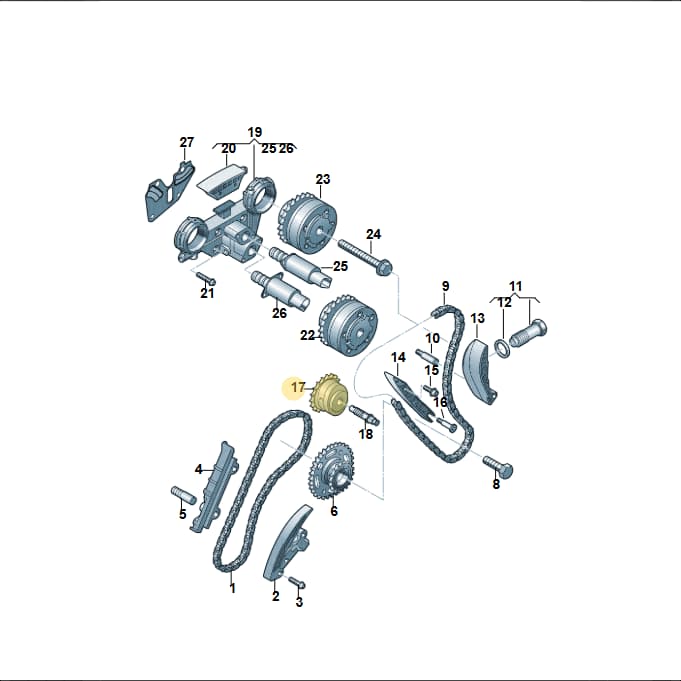

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Chain Sprocket, part number 03H109570N. This sprocket is a critical component in the engine's timing system, responsible for engaging with the timing chain to maintain the precise synchronization between the camshaft and crankshaft. It is located within the engine's timing assembly. Constructed from high-quality metal, this sprocket is designed for durability and optimal performance. Genuine OEM parts are essential for timing components to ensure exact tolerances and reliable operation, preventing potential engine damage.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 84839089
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 5.9 × 5.9 × 3.3 cm
- Shipping weight
- 0.26 kg
Parts diagram & fitment
3 vehiclesChain Sprocket — locate 03H109570N Volkswagen Chain Sprocket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Timing Cha 03H109465
- 1Timing Cha 03H109465A
- 2Tensioner 03H109467
- 2Tensioner 03H109467A
- 3Screw N90923801
- 4Seatrunner 021109469
- 5Part 021109471
- 6Chn Sprckt 03H109569C
- 8Bolt N10203803
- 9Timing Cha 03H109503
- 9Timing Cha 03H109503B
- 10Part 066109511D
- 11Tensioner 03H109507A
- 11Tensioner 03H109507B
- 12Seal Ring N0138271
- 13Tensioner 03H109509A
- 14Seatrunner 03H109513B
- 15Screw N10613901
- 16Part WHT008987
- 17Chn Sprckt 03H109570E
- 18Shaft 03H109296C
- 19Case 03H109210C
- 19Case 03H109210D
- 20Seatrunner 066109514A
- 21Bolt N90965802
- 22Adjuster 03H109087D
- 23Adjuster 03H109088E
- 24Bolt N91118001
- 27Seal 03H109140B
Diagrams & fitment data powered by oemdiagrams.com
03H109570N Volkswagen Chain Sprocket | Genuine OEM is fitted on: Atlas Cross Sport 2019-2023; Atlas 2016-2023; New Passat 2015-2022.
