Product overview

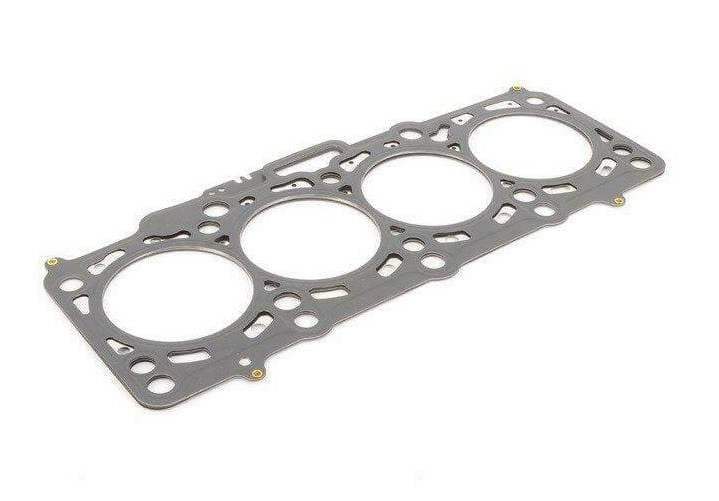

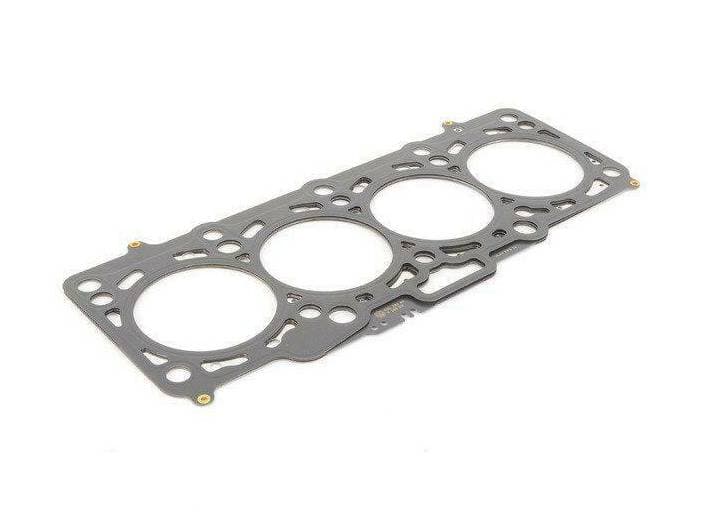

Genuine OEM Audi Cylinder Head Gasket, part number 03L103383AR. This crucial component creates a tight seal between the cylinder head and the engine block, preventing combustion gases, coolant, and oil from mixing or escaping. It is positioned directly between these two major engine assemblies. Weighing 0.415 kg and measuring 0.38m in length, this gasket is engineered to precise factory tolerances. Using a genuine OEM gasket ensures the correct material composition and sealing properties for long-term engine reliability and performance.
Technical details
- Category
- Gaskets & Seals
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38 × 15.5 × 0.2 cm
- Shipping weight
- 0.42 kg
Parts diagram & fitment

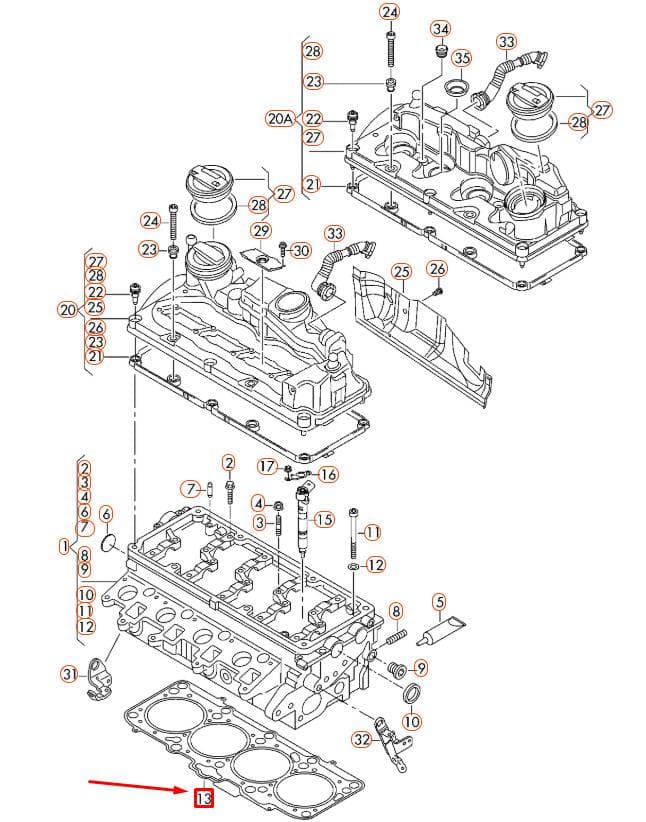

29 vehiclesCylinder Head Gasket — locate 03L103383AR Audi Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT002131 — the later replacement part.
Parts in this assembly(26)
- 1Cylinder Head 03L103265X
- 1Cylinder Head 03L103351J
- 2Bolt N10205604
- 3Bolt N91164201
- 4Collar Nut N90446502
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085C
- 11Screw WHT002131A
- 12Washer N90115701
- 13Seal 03L103383AS
- 13Seal 03L103383AQ
- 20Cover 03L103469
- 21Seal 03L103483
- 22Bolt 06B103831J
- 23Decoup Ele 057103831B
- 25Heat Sh 03L129969D
- 26Bolt N10555702
- 27Cover 06C103485P
- 28Seal 036115111B
- 29Cover 03L103113
- 30Screw N90427502
- 33Pipe 03L103493AL
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L103383AR Audi Cylinder Head Gasket | Genuine OEM is fitted on: DIES.-IND.-MOT.1,9>2,0 08> 2007-; Jetta "USA"05> 2005-; GOLF VARIANT 07> 2007-; Jetta Vagon 08> 2008-; TIGUAN 08> 2007-; Passat CC 2008-2012; Scirocco 2.0 2008-2014; jetta 2008-2011; golf estate 2009-2013; jetta variant 2009-2014; jetta 2010-2014; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf 2011-2013; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Exeo ST Reference 2008-2011; Leon Stylance 2010-2012; Altea XL Reference 2010-2013.
