Product overview

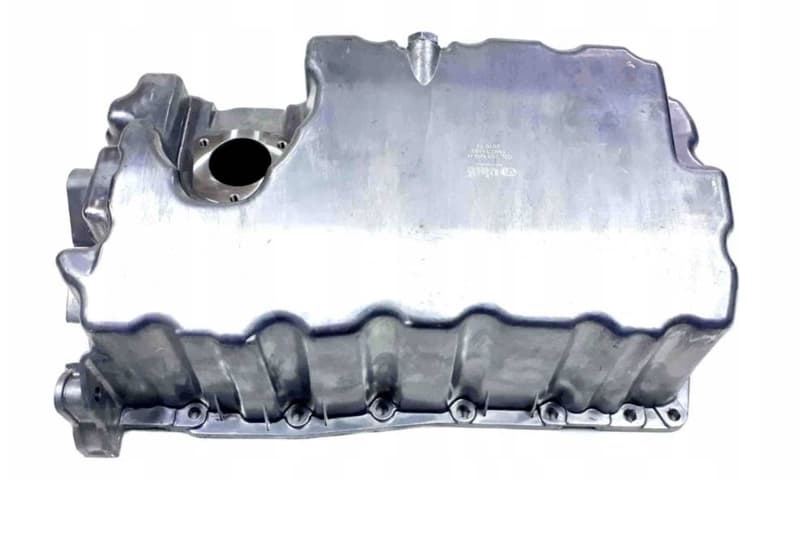

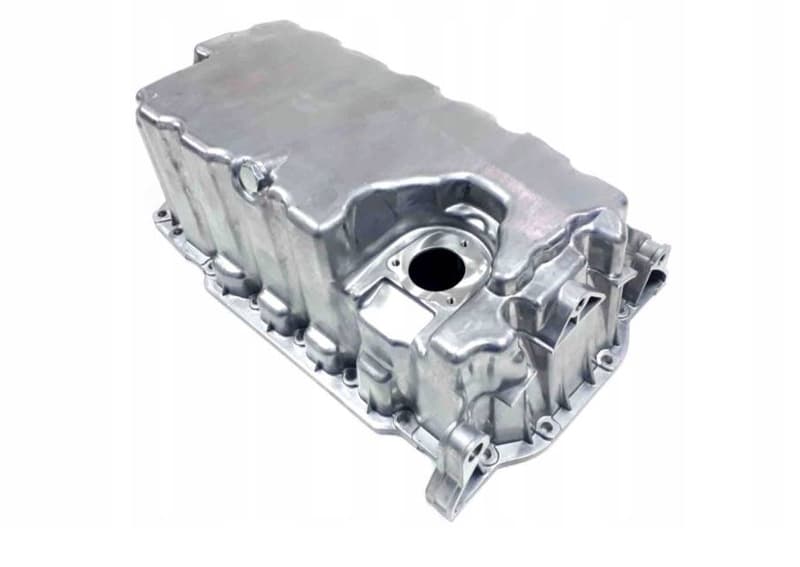

Genuine OEM Volkswagen Engine Oil Sump, part number 03L103603H. This critical engine component is positioned at the bottom of the engine, functioning as the reservoir for the engine's lubricating oil. It encloses the crankshaft and other lower engine components, collecting oil as it drains from the engine. Constructed from robust cast metal, it measures approximately 0.43 meters in length and weighs 2.31 kg. Using a genuine OEM oil sump ensures precise fitment, proper sealing, and the structural integrity required to protect the engine's vital internal components and prevent oil leaks.
Catalogue entry: OIL SUMP.
Fitted with: N90813202 BOLT, N90735604 BOLT, D176501A1 SEAL.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 43.2 × 27.2 × 17.5 cm
- Shipping weight
- 2.31 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- QG1
- QG0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

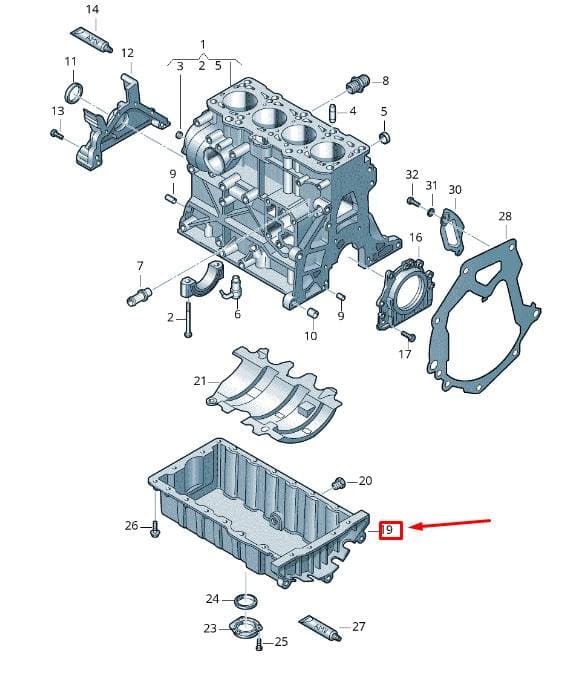

9 vehiclesOil Sump — locate 03L103603H Volkswagen Engine Oil Sump | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Crankcase 03L103011AM
- 1Crankcase 03L103011AR
- 1Crankcase 03L103011AL
- 2Bolt N90889701
- 3Cover N01190710
- 4Sleeve 028103039A
- 5Cover 036103113A
- 6Vent 038103157B
- 7Connection 038103499
- 9Part N0432072
- 10Sleeve 022103139B
- 11Seal 038103085E
- 12Flange 03G103153B
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 03L103171
- 20Bolt N90813202
- 21Lock 03L103623B
- 26Bolt N90735604
- 28Cover 03L103647G
- 28Coverplate 03L103645A
- 30Cover 038103648G
- 31Washer N01152427
- 32Bolt N01020812
Vehicle fitment table9
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| caravelle | 2015-2019 | 19 | 1 | QG1 | |
| Single-cab transp. | 2015-2019 | 19 | 1 | ||
| California Camper | 2015-2019 | 19 | 1 | QG1 | |
| transp. caravelle | 2011-2015 | 19 | 1 | ||
| transp. dropside | 2011-2015 | 19 | 1 | ||
| California Camper | 2011-2015 | 19 | 1 | ||
| transp. caravelle | 2009-2011 | 19 | 1 | ||
| transp. dropside | 2009-2011 | 19 | 1 | ||
| California Camper | 2009-2011 | 19 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03L103603H Volkswagen Engine Oil Sump | Genuine OEM is fitted on: caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011.
