Product overview

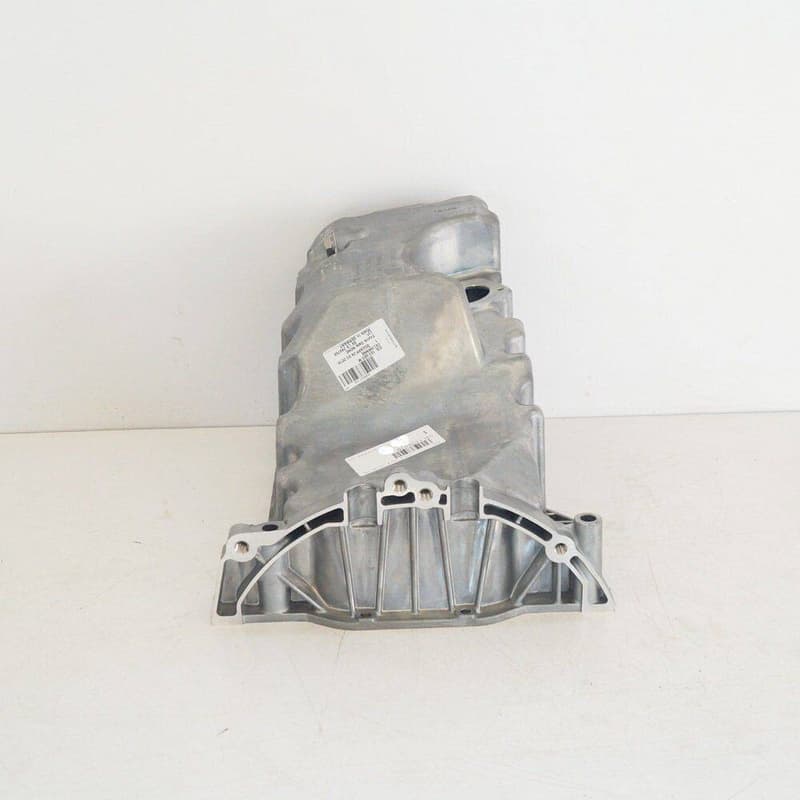

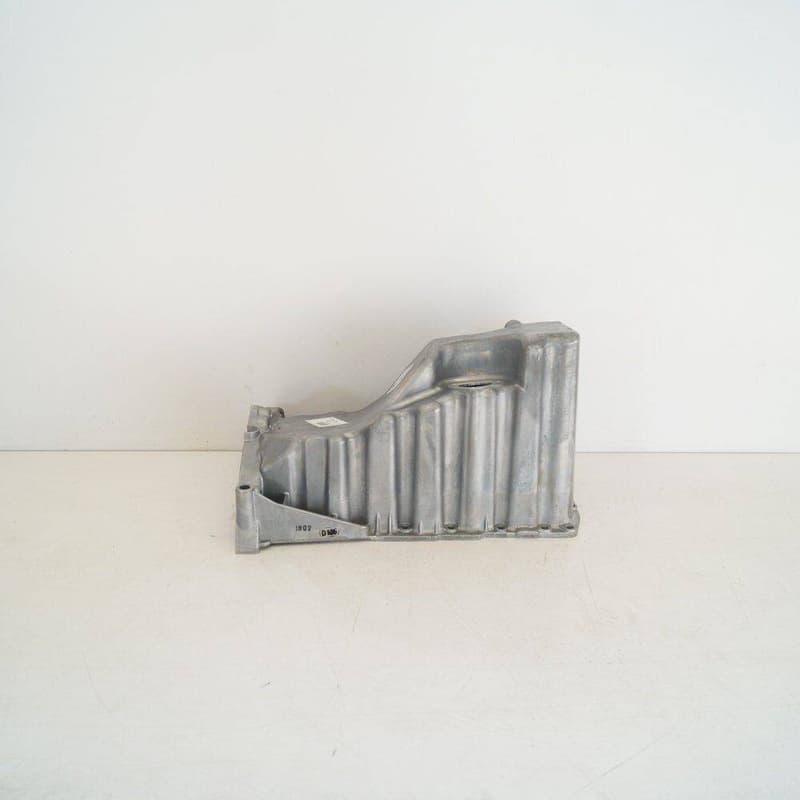

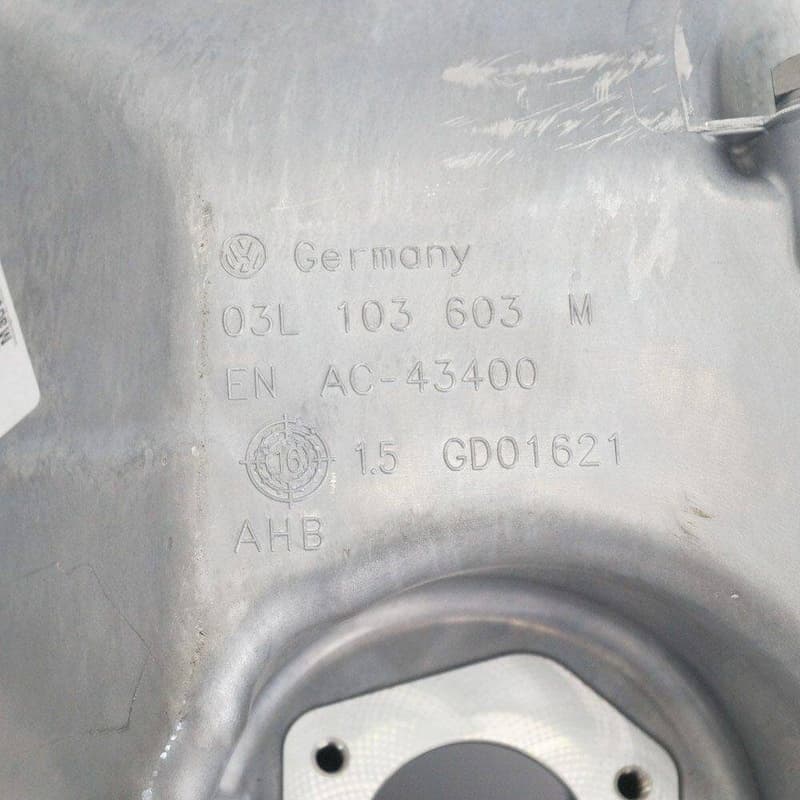

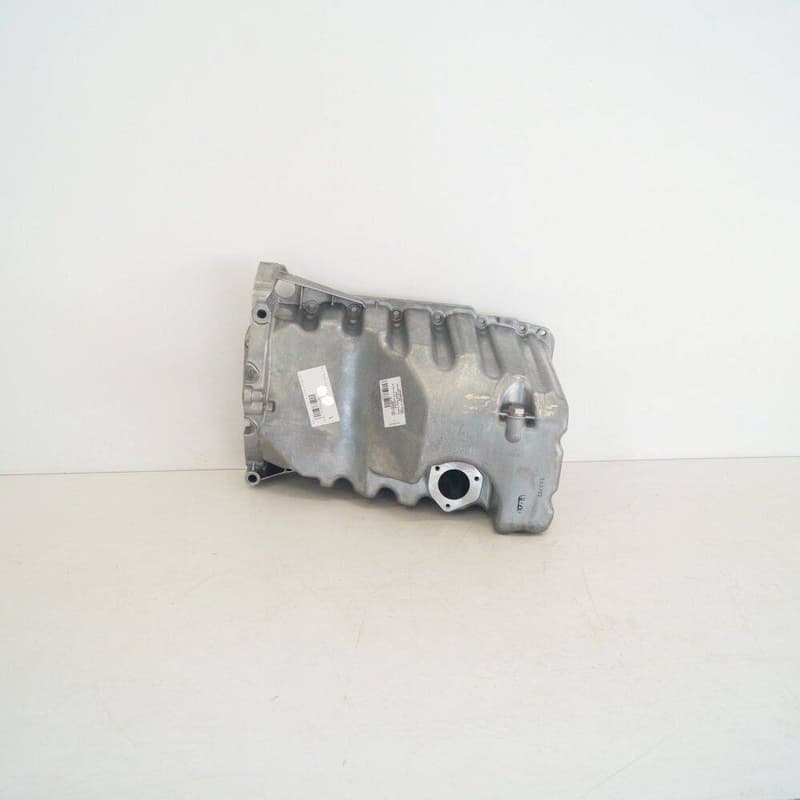

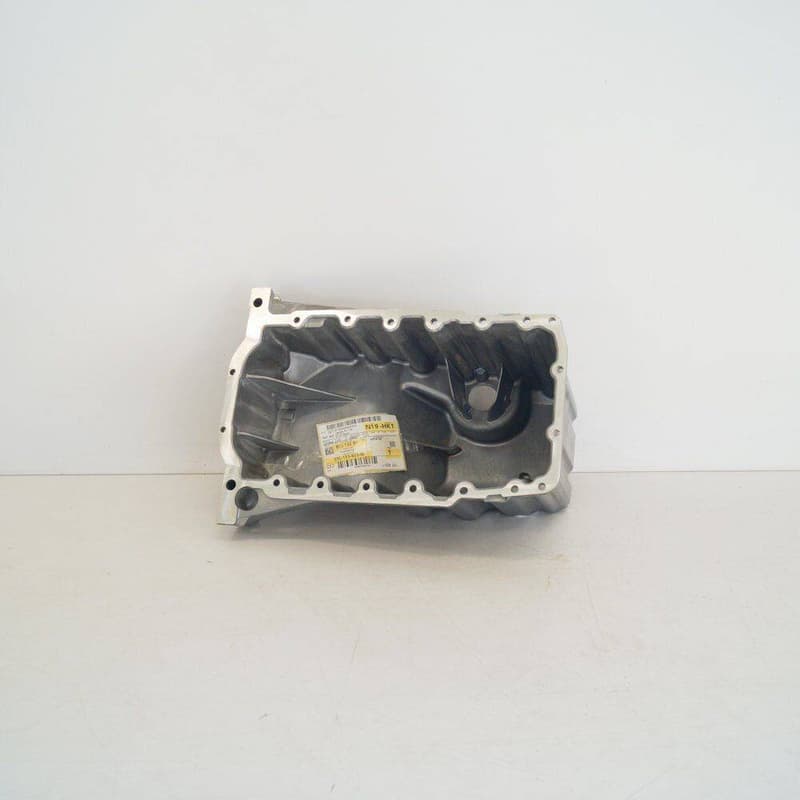

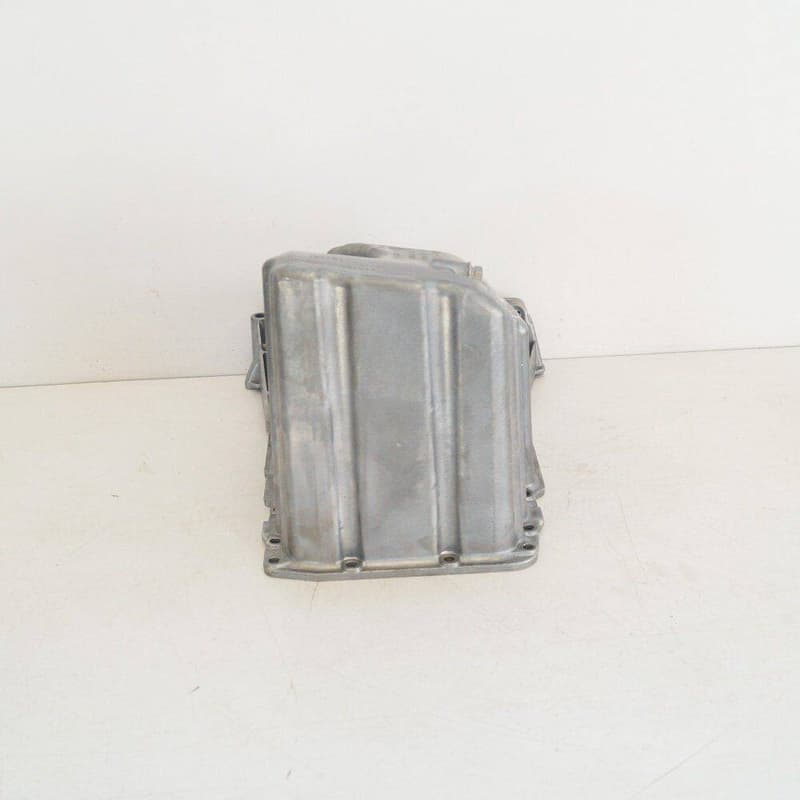

Genuine OEM Volkswagen Engine Oil Pan, part number 03L103603M. This cast metal pan is located at the bottom of the engine, serving as a reservoir for engine oil, which is vital for lubrication and cooling. It often includes internal baffles to manage oil flow during vehicle movement. Weighing 3.481 kg, this pan is designed for durability and heat dissipation. Using a genuine OEM oil pan ensures precise fitment, proper oil capacity, and resistance to impacts and corrosion, which is critical for maintaining engine health and preventing oil leaks.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 40 × 26 × 24.5 cm
- Shipping weight
- 3.48 kg
Parts diagram & fitment
3 vehiclesOil Sump — locate 03L103603M Volkswagen Engine Oil Pan | Engine Lubrication in the official exploded view and explore the surrounding assembly.
Parts in this assembly(26)
- 1Part 03L103011AM
- 1Part 03L103011AN
- 1Part 03L103011AL
- 2Bolt WHT008383
- 3Cover N01190710
- 4Sleeve 028103039A
- 5Cover 036103113A
- 6Vent 038103157C
- 9Part N0432072
- 10Sleeve 022103139B
- 11Radial Sea 03L103085B
- 12Flange 03G103153E
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 03L103171A
- 21Cover 03G103707
- 22Seal Ring 038103196
- 23Screw N91065201
- 24Lock 03L103623A
- 25Bolt N90704006
- 26Bolt N90813202
- 28Bolt N90735604
- 29Bolt N10672701
- 31Cover 03L103647N
- 31Cover 03L103647K
- 32Part 022103534A
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L103603M Volkswagen Engine Oil Pan | Engine Lubrication is fitted on: Amarok twin cab 2022-; Amarok twin cab 2012-2016; Amarok twin cab 2016-2022.
