03L103660A Cover For Oil Sump
€104.94 excl. VAT
- 03L103660Not stocked
Mar 2009 - 03L103660AThis pageNot stocked
May 2009 - 03L103660CCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

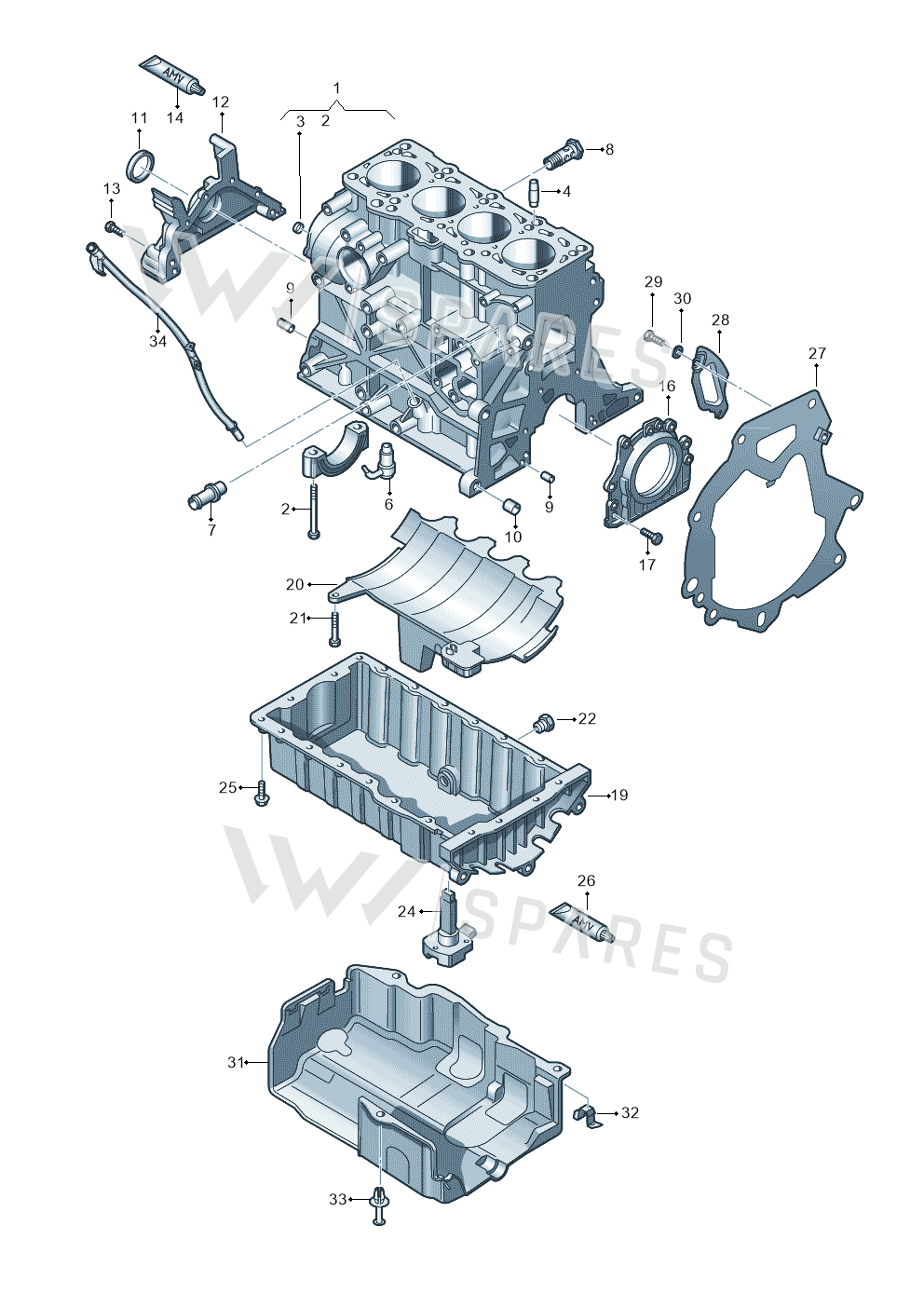

7 vehiclesCover For Oil Sump — locate Cover For Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly26
- 1Crankcase 03L103011A
- 1Crankcase 03L103011AS
- 2Bolt N90889701
- 3Cover N01190710
- 4Sleeve 028103039A
- 6Vent 038103157B
- 7Connection 038103499
- 9Part N0432072
- 10Sleeve 022103139B
- 11Seal 038103085E
- 12Flange 038103153Q
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 03L103171
- 19Oil Sump 03G103603AD
- 20Lock 03G103623A
- 21Bolt N90704006
- 22Bolt N90813202
- 25Bolt N90735604
- 27Cover 038103645E
- 28Cover 038103648G
- 29Bolt N01020812
- 30Washer N01152427
- 31Cover 03L103660C
- 32Part 03L103728
- 33Spring Rivet 03L863788A
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf Plus 1.6 | 2009-2011 | 31 | 1 | TU3 | |
| Audi A3 Sportback | 2008-2013 | 26 | 1 | CBAA,CBCB, | D91,D93,D94 |
| passat estate | 2008-2011 | 31 | 1 | D91,D93,D94,D96,D92 | |
| jetta | 2008-2011 | 26 | 1 | ||
| TIGUAN 08> | 2007- | 26 | 1 | TG3 | |
| Audi TT Coupe/Roadster 08> | 2007- | 26 | 1 | D93,7MG,G0L | |
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 26 | 1 | CBAA CBAB | D91,D94 |
Diagrams & fitment data powered by oemdiagrams.com
Cover For Oil Sump is fitted on: Golf Plus 1.6 2009-2011; Audi A3 Sportback 2008-2013; passat estate 2008-2011; jetta 2008-2011; TIGUAN 08> 2007-; Audi TT Coupe/Roadster 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013.
