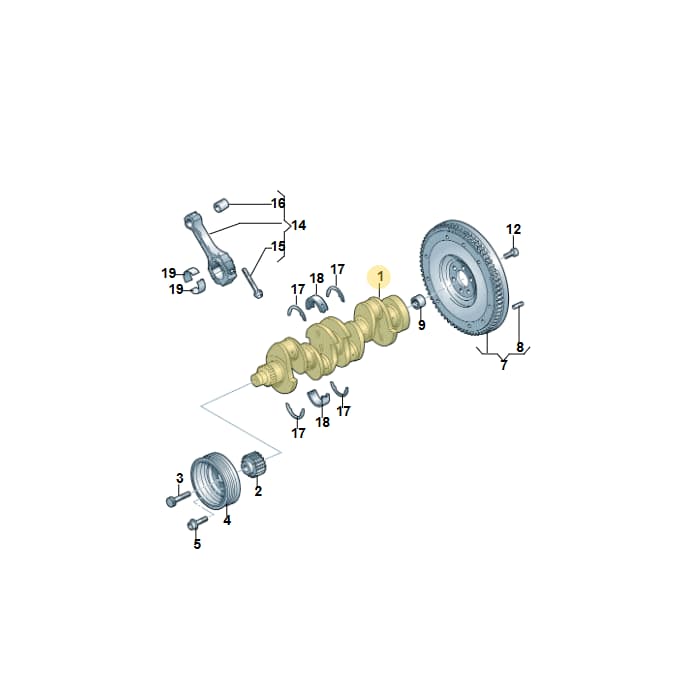

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Crankshaft, part number 03L105021F. This crankshaft is a critical engine component that converts linear piston motion into rotational force. It is the main rotating assembly in the engine. Weighs 13.453 kg. Genuine OEM crankshafts are manufactured to precise tolerances for optimal engine balance and longevity.
Catalogue entry: CRANKSHAFT.
Fitted with: WHT005322 BOLT, N91048804 SCREW, 06B105313D BEARING, 045105425 BOLT, 026198421 THRUST PLA, 03L105561 BRG SHELL, 03L105561GLB YELLOW, 038105561AB BRG SHELL, 038105561AB007 YELLOW, 03L105591 BRG SHELL, 03L105591GLB YELLOW, 038105591AC BRG SHELL.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84831029
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45 × 13 × 13 cm
- Shipping weight
- 13.45 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
8 vehiclesCrankshaft — locate 03L105021F Volkswagen Crankshaft | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 1Crankshaft 03L105021A
- 2Pulley 03P105263A
- 3Bolt WHT005322
- 4Damper 038105243M
- 5Screw N91048804
- 7Flywheel 03L105266DN
- 7Flywheel 04L105269
- 7Flywheel 038105269D
- 8Part N10105801
- 9Bearing 06B105313D
- 12Bolt N90501402
- 12Screw N90665001
- 14Con Rod 03L105401A
- 15Bolt 045105425
- 17Thrust Pla 026198421
- 18Brg Shell 038105561AB
- 18Brg Shell 038105591AC
- 18Brg Shell 03L105561
- 18Brg Shell 03L105591
- 19Bearing 03L105701D
- 19Bearing 03L105701E
- 19Bearing 04L105701
- 19Bearing 04L105701A
Vehicle fitment table8
Europe (6)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| caddy kombi | 2015-2020 | 1 | 1 |
| jetta | 2014-2017 | 1 | 1 |
| new beetle | 2011-2016 | 1 | 1 |
| new beetle cabriolet | 2011-2016 | 1 | 1 |
| Golf Cabriolet | 2011-2016 | 1 | |
| Caddy Maxi Kombi | 2010-2015 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Polo | 2014-2022 | 1 | |
| Rapid Ambition | 2011-2021 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03L105021F Volkswagen Crankshaft | Genuine OEM is fitted on: caddy kombi 2015-2020; jetta 2014-2017; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Caddy Maxi Kombi 2010-2015; Polo 2014-2022; Rapid Ambition 2011-2021.
