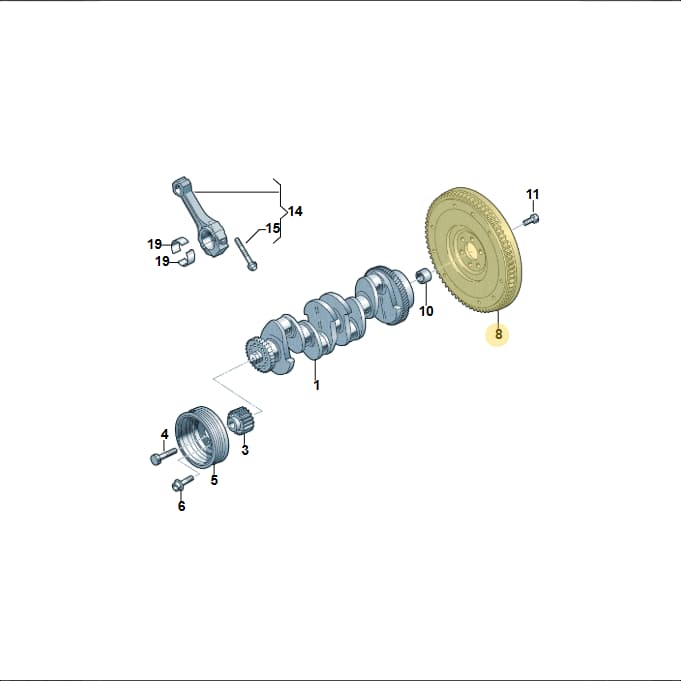

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Flywheel, part number 03L105266DR. This flywheel is a heavy rotating mass that connects the engine's crankshaft to the transmission. It smooths out the power pulses from the engine and provides a friction surface for the clutch assembly. It is mounted to the end of the crankshaft. Genuine OEM flywheels are balanced to exact specifications to prevent vibration and ensure smooth operation.
Technical details
- Category
- Engine
- Customs (HS) code
- 84835020
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.5 × 29.5 × 6 cm
- Shipping weight
- 12.11 kg
Parts diagram & fitment
3 vehiclesFlywheel — locate 03L105266DR Volkswagen Flywheel | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Crankshaft 03L105021C
- 1Crankshaft 03L105021G
- 1AGear 03G105212D
- 2Pulley 03P105263A
- 3Bolt WHT005322
- 4Damper 038105243M
- 5Screw N91048804
- 6Cover 038105278A
- 7Flywheel 03L105266BL
- 7Flywheel 03L105266CA
- 7Flywheel 03L105266CC
- 7Flywheel 03L105266CG
- 7Flywheel 03L105266DJ
- 7Flywheel 03L105266DL
- 7Flywheel 03L105266DQ
- 7Flywheel 04L105266B
- 7ABearing 06B105313D
- 9Clutch Pla 038105327E
- 10Washer 051105301
- 11Shim 056105303
- 12Bolt N90946201
- 12Screw N90665001
- 14Part 038105401J
- 14Part 04L105401A
- 15Bolt 045105425
- 17Thrust Pla 026198421
- 18Brg Shell 038105591AC
- 18Brg Shell 03L105561
- 18Brg Shell 03L105591
- 18Brg Shell 038105561AB
- 19Bearing 038105701A
- 19Bearing 04L105701C
- 19Bearing 038105701B
- 19Bearing 04L105701B
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L105266DR Volkswagen Flywheel | Genuine OEM is fitted on: Tiguan 4Motion 2011-2018; Sharan BlueMotion 2015-2022; Alhambra Stylance 2015-2022.
