03L109119C Toothed Belt
€61.06 excl. VAT
- 03L109119CThis pageNot stocked
Oct 2011 - 03L109119GNot stocked
Jan 2013 - 03L109119JNot stocked
Apr 2015 - 03L109119ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

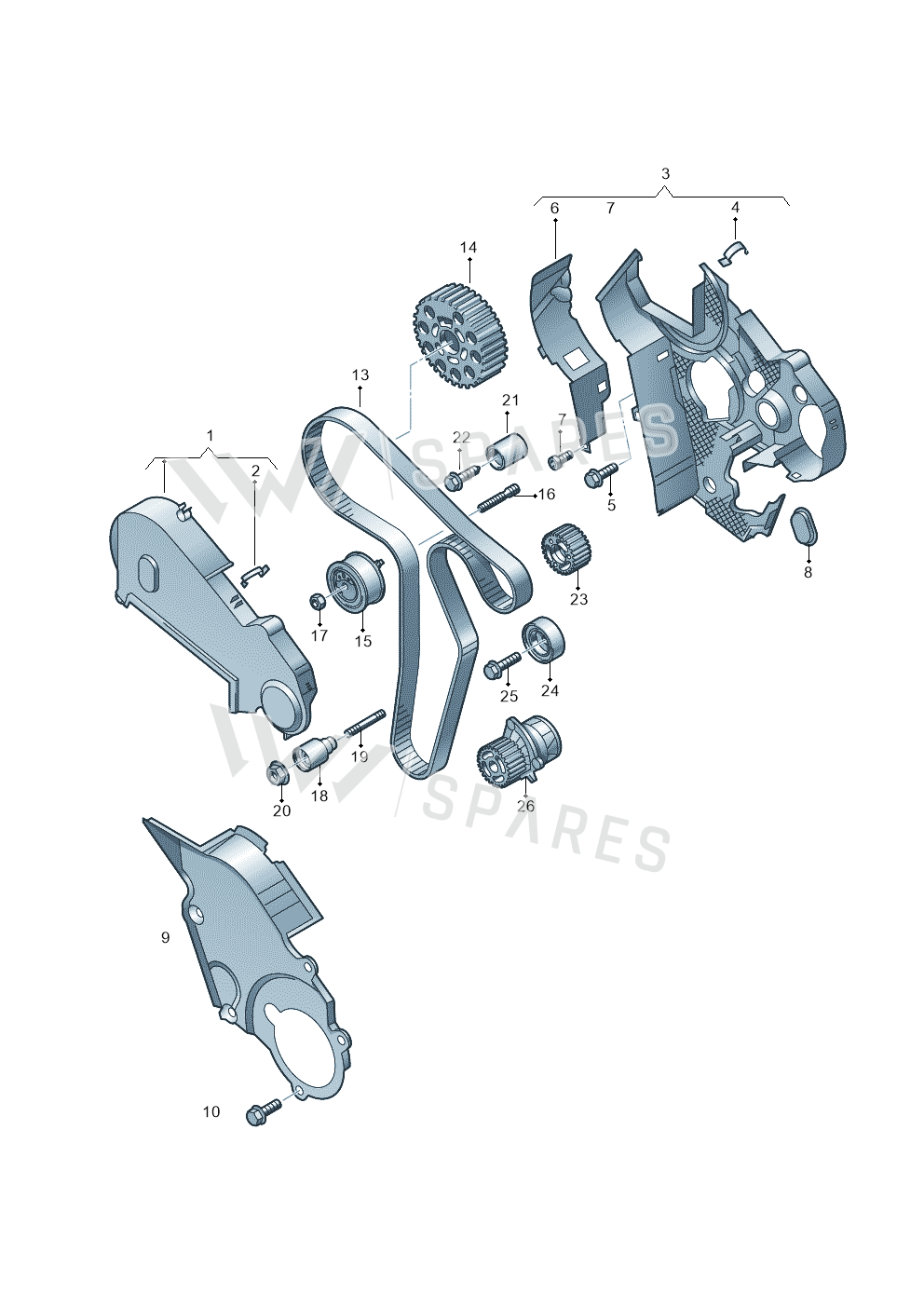

18 vehiclesToothed Belt — locate Toothed Belt in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Protection 03L109107B
- 2Clip 026109150A
- 3Part 03L109145B
- 5Bolt N10082912
- 6Heat Sh 03L129969K
- 7Bolt N10555702
- 8Bungs 038971904
- 9Protection 03L109147
- 10Bolt N10451405
- 15Tens Roll 03L109243F
- 16Bolt N90905502
- 17Collar Nut 038109454A
- 18Roller 038109244J
- 18Roller 03L109244G
- 19Bolt N10444702
- 20Collar Nut N10609201
- 21Roller 03L109244D
- 22Bolt N10675602
- 24Roller 03L109244
- 25Bolt N10699901
Vehicle fitment table18
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A1 Sportback | 2010-2015 | 13 | 1 | TF3 | |
| audi a6 2.0 tdi | 2010-2015 | 13 | 1 | TM4 | |
| Audi TTS Coupe 2.0 | 2010-2014 | 14 | 1 | D93 | |
| Yeti | 2009-2013 | 13 | 1 | ||
| Polo | 2009-2012 | 13 | 1 | ||
| Amarok twin cab | 2009-2012 | 13 | 1 | ||
| Golf Plus 1.6 | 2009-2011 | 13 | 1 | D36 | |
| transp. caravelle | 2009-2011 | 13 | 1 | ||
| transp. dropside | 2009-2011 | 13 | 1 | TV3 | |
| California Camper | 2009-2011 | 13 | 1 | ||
| Audi A3 Sportback | 2008-2013 | 14, 13 | 1 | CFFB,CFFA, | D91,D93,D94 |
| superb comfort | 2008-2013 | 13 | 1 | ||
| octavia ambiente | 2008-2013 | 13 | 1 | ||
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 13 | 1 | ||
| golf 2.0 | 2008-2011 | 13 | 1 | D36 | |
| passat estate | 2008-2011 | 13 | 1 | D38 | |
| AUDI A4 08> | 2007- | 13 | 1 | ||
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 14, 13 | 1 | CFFA,CFFB | D91,D94 |
Diagrams & fitment data powered by oemdiagrams.com
Toothed Belt is fitted on: Audi A1 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi TTS Coupe 2.0 2010-2014; Yeti 2009-2013; Polo 2009-2012; Amarok twin cab 2009-2012; Golf Plus 1.6 2009-2011; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; Audi A3 Sportback 2008-2013; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi Q5 qu. 2.0 TDI 2008-2012; golf 2.0 2008-2011; passat estate 2008-2011; AUDI A4 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013.
