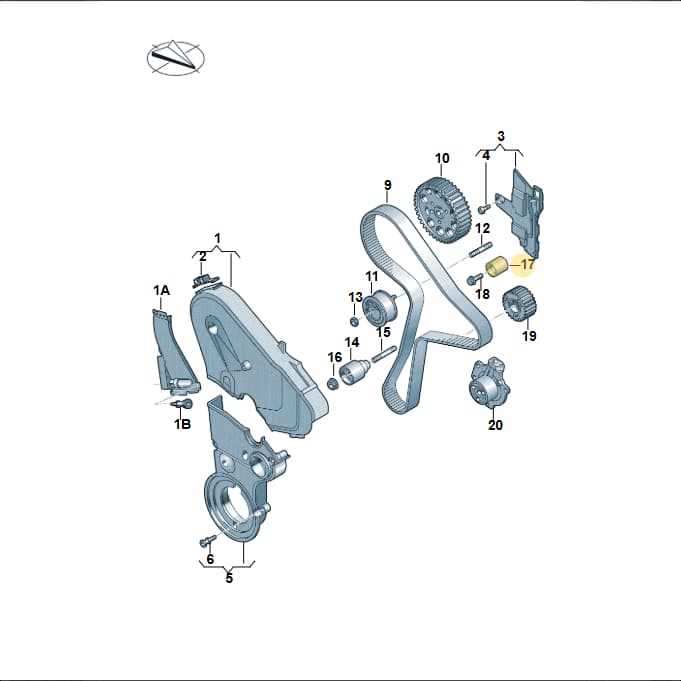

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Idler Pulley, part number 03L109244K. This idler pulley is a component within the timing belt system, guiding and maintaining tension on the belt. It is located in the timing belt assembly. Made from durable metal for long service life. Genuine OEM parts ensure precise fitment and optimal performance.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 84835080
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3 × 2.8 × 2.8 cm
- Shipping weight
- 0.06 kg
Parts diagram & fitment
5 vehiclesIdler Pulley — locate 03L109244K Volkswagen Idler Pulley | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(20)
- 1Protection 04L109107F
- 1AShield 05L129968
- 1BBolt WHT005821
- 3Cover 04L109145A
- 4Bolt WHT005822
- 5Protection 04L109147D
- 9Tooth Belt 04L109119D
- 9Tooth Belt 04L109119J
- 11Tens Roll 04L109243AA
- 11Tens Roll 04L109243D
- 11Tens Roll 04L109243G
- 11Tens Roll 04L109243K
- 11Tens Roll 04L109243T
- 12Bolt N10762501
- 13Collar Nut 038109454A
- 14Roller 03L109244G
- 15Bolt N10444702
- 16Collar Nut N10609201
- 17Roller 03L109244D
- 18Bolt N10675602
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L109244K Volkswagen Idler Pulley | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021.
