03L109521A Equalizing Element Hydraulic
€15.00 excl. VAT
- 059109521FNot stocked
Jan 2003 - 059109521GNot stocked
Sep 2016 - 03L109521AThis pageNot stocked
Dec 2020 - 03L109521Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

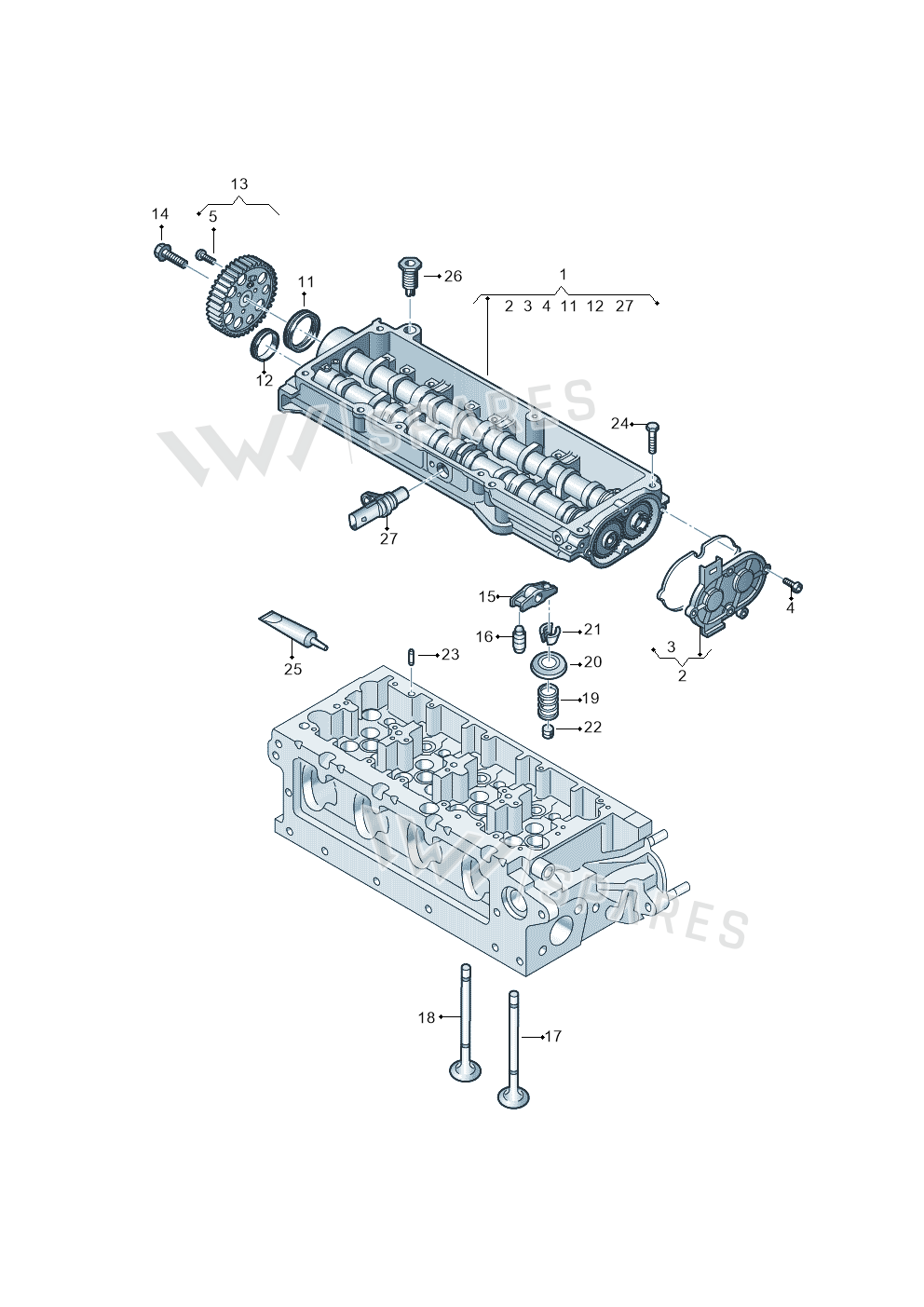

38 vehiclesEqualizing Element Hydraulic — locate Equalizing Element Hydraulic in the official exploded view and explore the surrounding assembly.
Parts in this assembly21
- 1Camshaft 04L103044K
- 2Cover 04L109283C
- 2Cover 04L109283
- 3Seal 04L145215C
- 3Seal 04L145215B
- 4Bolt N10700201
- 11Radial Sea 03L103085C
- 12Cover 03L103113A
- 13Pulley 04L109105
- 14Bolt N10628401
- 15Roller Roc 059109417J
- 17Valve 04L109601B
- 18Valve 04L109611B
- 19Spring 059109633J
- 20Springseat 059109641K
- 21Cotter Pin 036109651A
- 22Seal 036109675A
- 23Part 06D103251
- 24Bolt N10156206
- 25Seal D176501A1
- 26Screw WHT006764
Vehicle fitment table38
Europe (36)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Tarraco FR | 2018-2024 | 16 | 16 | ||
| Arona FR | 2017- | 16 | 16 | ||
| Ibiza FR | 2017- | 16 | 16 | ||
| Tiguan 2.0 4Motion | 2017-2024 | 16 | 16 | ||
| Ateca Style | 2016- | 8, 16 | 16 | ||
| Leon ST Stylance | 2016-2020 | 8 | 16 | ||
| Beetle | 2016-2019 | 16 | 16 | ||
| new beetle cabriolet | 2016-2019 | 16 | 16 | ||
| Ibiza Stylance | 2015- | 8 | 12 | ||
| Alhambra Stylance | 2015-2022 | 16 | 16 | ||
| Toledo Reference | 2015-2019 | 8, 16 | 12 | ||
| Golf 1.4 BlueMotion | 2014-2017 | 16 | 16 | ||
| jetta | 2014-2017 | 8, 16 | 16 | ||
| Golf Estate 1.4 | 2014-2017 | 16 | 16 | ||
| Altea XL Reference | 2013-2013 | 8 | 16 | ||
| Leon ST Stylance | 2012-2016 | 16 | 16 | ||
| Toledo Reference | 2012-2015 | 8, 16 | 12 | ||
| Ibiza Reference | 2012-2012 | 8 | 12 | D28 | |
| new beetle | 2011-2016 | 8, 16 | 16 | ||
| new beetle cabriolet | 2011-2016 | 8, 16 | 16 | ||
| Ibiza Reference | 2011-2012 | 8 | 12 | D28 | |
| jetta | 2010-2014 | 8 | 16 | ||
| Altea XL Reference | 2010-2013 | 8 | 16 | ||
| Alhambra Stylance | 2010-2013 | 8 | 16 | TL4 | |
| Leon Stylance | 2010-2012 | 8 | 16 | ||
| jetta variant | 2009-2014 | 8 | 16 | ||
| golf estate | 2009-2013 | 8 | 16 | ||
| Jetta Vagon 08> | 2008- | 8 | 16 | ||
| jetta | 2008-2011 | 8 | 16 | ||
| Ibiza Reference | 2008-2011 | 8 | 12 | D28 | |
| Exeo ST Reference | 2008-2011 | 8, 14 | 16 | ||
| GOLF VARIANT 07> | 2007- | 8 | 16 | ||
| JETTA 06> | 2006- | 8 | 16 | ||
| ALTEA 07> | 2006- | 8 | 16 | D38 | |
| LEON 06> | 2005- | 8 | 16 | D38 | |
| SUPERB 02> | 2001- | 14 | 24 | BDG | D1P |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 8, 14 | 16 | ||
| MARINE-MOTOR 02> | 2002- | 11 | 24 |
Diagrams & fitment data powered by oemdiagrams.com
Equalizing Element Hydraulic is fitted on: Tarraco FR 2018-2024; Arona FR 2017-; Ibiza FR 2017-; Tiguan 2.0 4Motion 2017-2024; Ateca Style 2016-; Leon ST Stylance 2016-2020; Beetle 2016-2019; new beetle cabriolet 2016-2019; Ibiza Stylance 2015-; Alhambra Stylance 2015-2022; Toledo Reference 2015-2019; Golf 1.4 BlueMotion 2014-2017; jetta 2014-2017; Golf Estate 1.4 2014-2017; Altea XL Reference 2013-2013; Leon ST Stylance 2012-2016; Toledo Reference 2012-2015; Ibiza Reference 2012-2012; new beetle 2011-2016; new beetle cabriolet 2011-2016; Ibiza Reference 2011-2012; jetta 2010-2014; Altea XL Reference 2010-2013; Alhambra Stylance 2010-2013; Leon Stylance 2010-2012; jetta variant 2009-2014; golf estate 2009-2013; Jetta Vagon 08> 2008-; jetta 2008-2011; Ibiza Reference 2008-2011; Exeo ST Reference 2008-2011; GOLF VARIANT 07> 2007-; JETTA 06> 2006-; ALTEA 07> 2006-; LEON 06> 2005-; SUPERB 02> 2001-; Jetta "USA"05> 2005-; MARINE-MOTOR 02> 2002-.
