Product overview
Genuine OEM Audi Oil Dipstick Guide Tube, part number 03L115607C. This component is an integral part of the engine's lubrication system, designed to precisely guide the oil dipstick into the oil pan for accurate engine oil level measurement. It is installed directly into the engine block. Weighing approximately 0.06 kg and measuring 0.425 meters in length, this tube ensures a sealed pathway for the dipstick. Using a genuine OEM guide tube guarantees correct dimensions, material integrity, and a proper seal, preventing oil leaks and ensuring reliable oil level readings.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 42.5 × 13 × 6.6 cm
- Shipping weight
- 0.06 kg

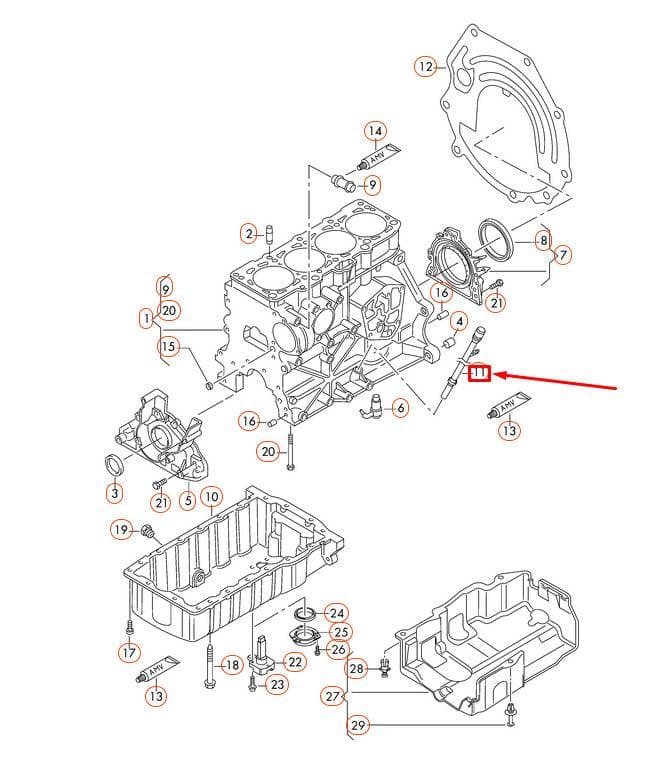

Parts diagram & fitment
3 vehiclesTube For Oil Dipstick — locate 03L115607C Audi Oil Dipstick Guide Tube | Engine in the official exploded view and explore the surrounding assembly.
Parts in this assembly(18)
- 2Sleeve 028103039A
- 3Seal 038103085E
- 5Sleeve 022103139B
- 6Flange 03G103153B
- 7Vent 038103157B
- 8Flange 03L103171
- 10Connection 038103499
- 11Oil Sump 03L103603D
- 14Cover 038103647AB
- 16Seal D176404A2
- 17Locking D000600A2
- 19Cover N01190710
- 21Part N0432072
- 25Bolt N90628303
- 25Bolt N90735604
- 27Bolt N90813202
- 28Bolt N90130001
- 30Bolt N90945002
Diagrams & fitment data powered by oemdiagrams.com
03L115607C Audi Oil Dipstick Guide Tube | Engine is fitted on: Audi A5/S5 Coupe 08> 2007-; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016.
