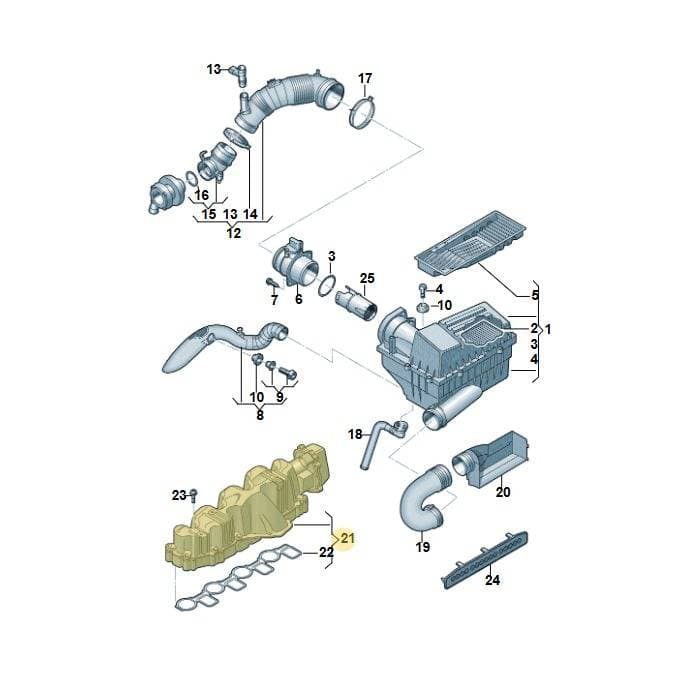

Number 21 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Intake Connection, part number 03L129711AQ. This connection links the intake manifold to the cylinder head, facilitating air intake into the engine. It is located in the engine assembly. Manufactured from durable materials to exact factory specifications for optimal performance and durability. Genuine OEM intake connections ensure proper air-fuel mixture and engine efficiency.
Technical details
- Category
- Engine
- Country of origin
- Spain
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39.5 × 26.5 × 16.33 cm
- Shipping weight
- 1.67 kg
Parts diagram & fitment
11 vehiclesIntake Connection — locate 03L129711AQ Volkswagen Intake Connection | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 03L129711AR — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(25)
- 1Air Filter 3C0129607BD
- 1Air Filter 3C0129607BE
- 2Air Filter 1K0129620E
- 2Air Filter 1K0129620D
- 3Seal Ring 028129646
- 4Bolt 1K0129381
- 5Insert 3C0129668A
- 5Insert 3C0129668
- 6Air Meter 03L906461
- 7Screw N90172004
- 8Intake Man 1K0129565AC
- 9Part 3C0145830
- 10Grommet 867129669
- 12Hose 3C0129654AG
- 12Hose 3C0129654M
- 13Pipe 5N0906391
- 14Clamp N90656101
- 15Adapter 3C0129635
- 16Seal Ring 3C0129646
- 17Clamp N90656501
- 18Hose 1K0129637D
- 19Air Guide 1K0129618BQ
- 22Seal 03L129717H
- 22Seal 03L129717J
- 23Sckt Bolt N10408602
Diagrams & fitment data powered by oemdiagrams.com
03L129711AQ Volkswagen Intake Connection | Genuine OEM is fitted on: JETTA 06> 2006-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; passat estate 2008-2011; jetta 2008-2011; Polo 2009-2012; LEON 06> 2005-; ALTEA 07> 2006-; Ibiza Reference 2008-2011; Audi A3 Sportback 2008-2013; Roomster 2010-2015.
