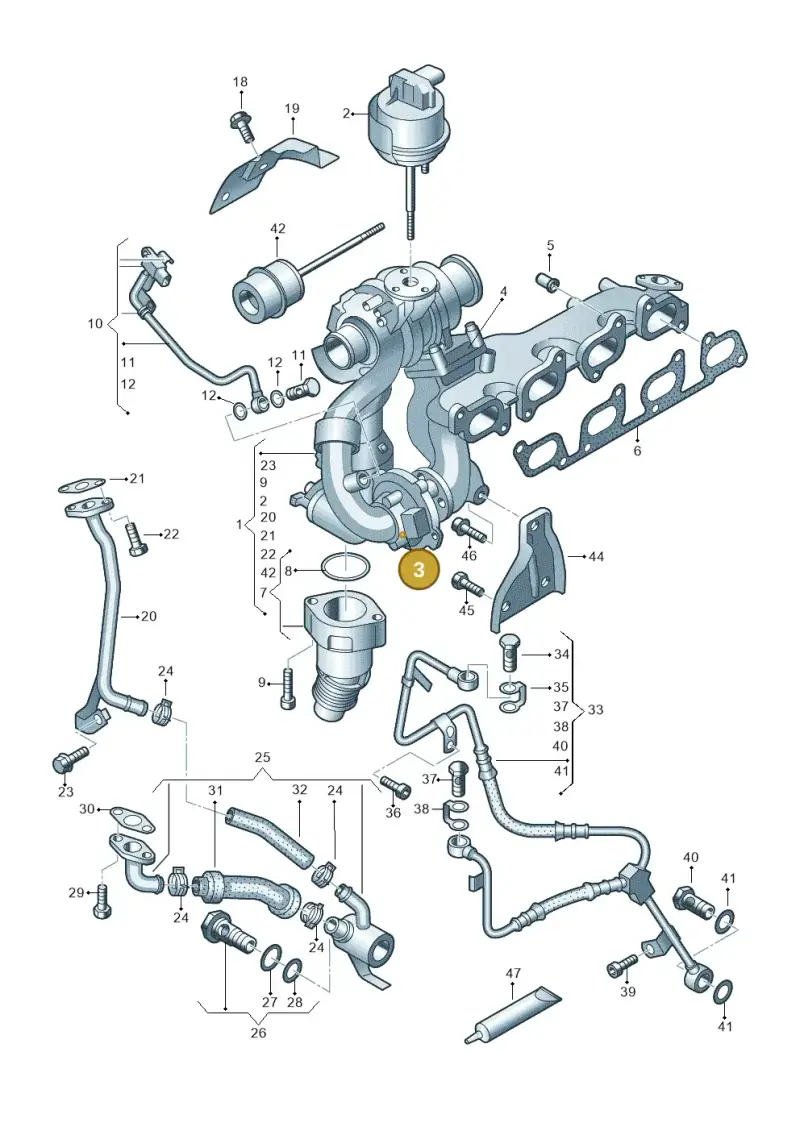

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Exhaust Gas Turbocharger Repair Set, part number 03L198701A. This comprehensive repair set includes the necessary components to service and restore the functionality of the exhaust gas turbocharger. It is designed for precise fitment within the turbocharger assembly. Using genuine OEM parts ensures that all seals, gaskets, and small components meet the original factory specifications for optimal performance and longevity. This is crucial for maintaining the efficiency and power delivery of the turbocharger system.
Technical details
- Category
- Tools & Accessories
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17.5 × 7.5 × 4.5 cm
- Shipping weight
- 0.32 kg
Parts diagram & fitment
5 vehiclesRepair Set For Exhaust Gas Turbocharger — locate 03L198701A Volkswagen Turbocharger Repair Set | Exhaust Gas in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Turbo 03L145715M
- 2Repair Kit 03L198716H
- 4Part 03L198701B
- 5Part WHT007845
- 6Seal 03L253039H
- 7Damper 03L131111T
- 9Screw N10624701
- 10Sensor 2H0145049C
- 10Sensor 2H0145049
- 11Screw N0210719
- 12Seal Ring N0138133
- 18Bolt N10688402
- 19Plate 03L145811D
- 20Oil Line 03L145735G
- 21Seal 03L145757F
- 22Bolt N90592705
- 23Screw N10613601
- 24Clamp N10201901
- 25Oil Line 03L145735F
- 26Screw WHT005420
- 31Hose 03L115655B
- 32Hose 03L115655C
- 33Pipe 03L145771AH
- 35Seal Ring 03L145117D
- 37Screw WHT005485
- 38Seal Ring 07Z145117A
- 39Screw N10717701
- 40Screw N0210748
- 41Seal Ring N0138495
- 42Repair Kit 03L198716G
- 44Support 03L145536E
- 45Screw N91134301
- 46Screw N10702603
- 47Paste G052112A3
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03L198701A Volkswagen Turbocharger Repair Set | Exhaust Gas is fitted on: Amarok twin cab 2022-; Amarok twin cab 2009-2012; Crafter 35 panel 2011-2016; Amarok twin cab 2012-2016; Amarok twin cab 2016-2022.
