Product overview
Genuine OEM Audi Fuel Hose with Noise Insulation, part number 03L201384A. This component is designed to transport fuel within the vehicle's fuel system while simultaneously reducing operational noise. It is an integral part of the fuel delivery assembly. Weighing 0.0328 kg, this hose features specialized insulation for acoustic dampening. Using a genuine OEM fuel hose ensures proper fuel flow, leak-free connections, and effective noise reduction for optimal system performance.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 40093100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.5 × 9 × 2.5 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment

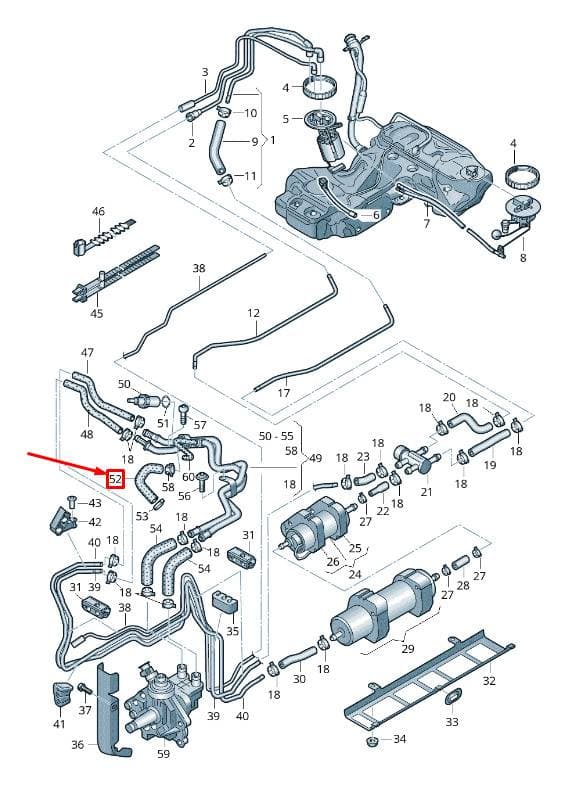

7 vehiclesFuel Hose With Noise Insulation — locate 03L201384A Audi Fuel Hose | With Noise Insulation in the official exploded view and explore the surrounding assembly.
Parts in this assembly(38)
- 1Pipe 8K0201220B
- 2Pipe 8K0201227C
- 9Fuel Line 8K0201545AG
- 9Fuel Line 8T0201545AK
- 10Clip 8K0201190B
- 11Clamp 4B0422379
- 12Hose 8K0201541R
- 13Hose 8K0201543K
- 14Valve 8T0127247C
- 15Hose 8K0201541G
- 16Hose 8K0201543B
- 17Clamp N90986501
- 18Pump 8K0906089A
- 19Seal 8K0201196M
- 20Seal 8K0201196N
- 24Plate 8K0201710A
- 25Grommet 8K0201180
- 26Collar Nut N01508210
- 27Seal 8T0201196B
- 28Prot Plate 8K0201192A
- 29Bolt N10406504
- 30Fuel Line 8K0201545BF
- 31Fuel Line 8K0201547L
- 33Seal 8K0201196K
- 34Clip 8K0201449P
- 35Part 4D0201834C
- 36Binder 4A0820199
- 37Cable Tie N90643701
- 38Hose 8K0201541AA
- 39Hose 8K0201543Q
- 40Pipe 03L201360K
- 41Sensor 059919523A
- 42Seal Ring WHT002287C
- 45Hose 03L201153
- 48Screw N10544703
- 50Fuel Line 8K0201547E
- 50Fuel Line 8T0201547D
- 51Hose 03L201908
Compatible / alternative parts(12)
- Part 03L130089A
- Part 03L130235S
- Part 03L130277
- Part 03L130301
- Part 03L130301B
- Part 03L130301C
- Part 03L130301R
- Part 03L130321
- Part 03L130755
- Part 03L130755A
- Part 03L130851AX
- Part 03L130851X
Diagrams & fitment data powered by oemdiagrams.com
03L201384A Audi Fuel Hose | With Noise Insulation is fitted on: Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016; Exeo ST Reference 2008-2011.
