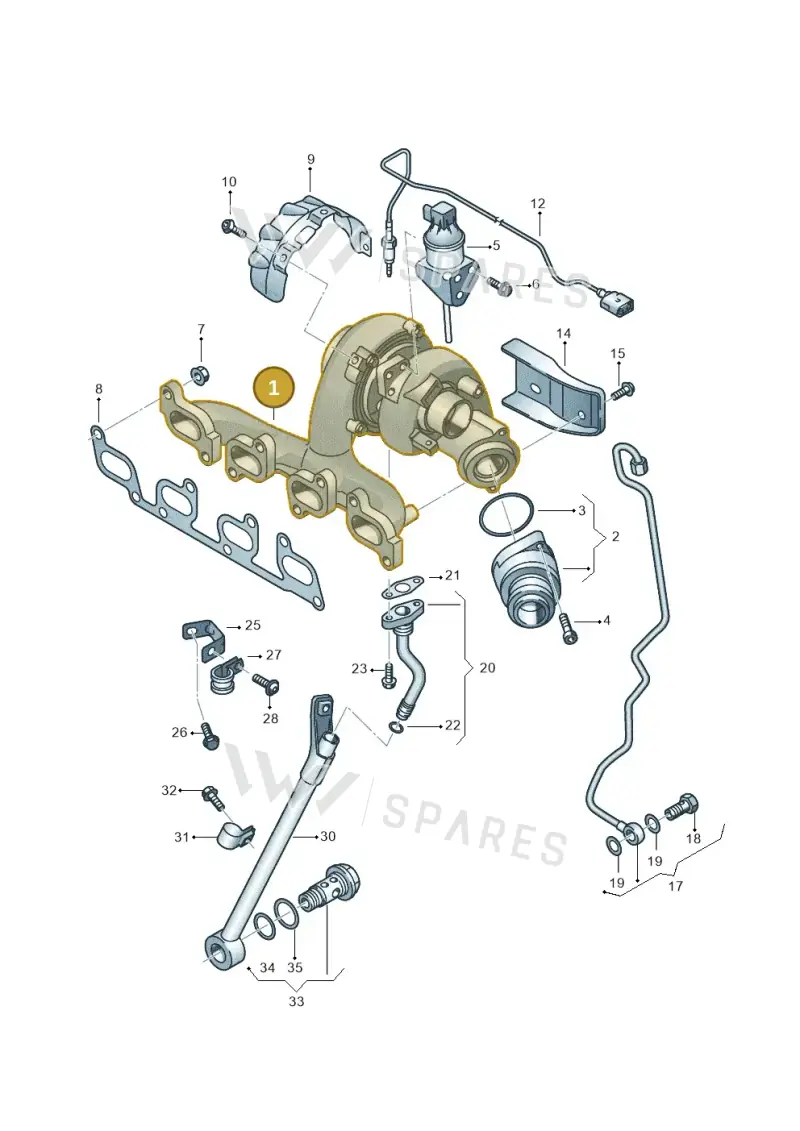

Number 1 marks the part’s position in the exploded view (SEAT Altea XL (2013-)).
Product overview
Genuine OEM Volkswagen Exhaust Manifold with Turbocharger, part number 03L253010GX. Fits SEAT Altea XL (2013). Shown as position 1 in the engine diagram 650145750.
Catalogue entry: TURBO; For vehicles with variable.
Fitted with: 03L253056T TURBO, 03L145117 SEAL. RING, N91117502 SCREW, N90894601 hexagon nut, self-locking, 03L253039E SEAL, 03L145757Q SEAL, WHT001965 SEAL. RING, N90592705 BOLT.
Technical details
- Category
- Intake & Turbo
- Diagram sheet
- SEAT 650145750, position 1
- ETKA group
- 1 / 45 (145)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- D91
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
27 vehiclesExhaust Manifold With Turbocharger — locate 03L253010GX Volkswagen Exhaust Manifold with Turbocharger in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2024-10-01); contact us to check current availability.
Parts in this assembly30
- 1Part 03L253010G
- 2Damper 03L131111G
- 3Seal Ring 03L145117
- 4Screw N91117502
- 5Repair Kit 03L198716M
- 6Union 059145911A
- 7Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 8Seal 03L253039E
- 9Heat Sh 03L129969A
- 10Bolt N10680303
- 11Seal Ring N90707001
- 13Bolt N90188902
- 14Heat Sh 03L129969AC
- 16Bolt N0445093
- 17Pipe 03L145771AN
- 18Screw N0210719
- 19Seal Ring N0138133
- 20Oil Line 03L145736D
- 21Seal 03L145757Q
- 22Seal Ring WHT001965
- 23Bolt N90592705
- 25Part 03L145764A
- 26Bolt N90440003
- 27Clamp N0206096
- 28Bolt N91096603
- 30Support 03L145535D
- 31Clip N91204701
- 32Bolt N10741402
- 33Screw WHT005635A
- 34Seal Ring N90715601
Compatible / alternative parts(12)
Vehicle fitment table27
Europe (26)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| caddy kombi | 2015-2020 | 1 | |||
| jetta | 2014-2017 | 1 | |||
| Altea XL Reference | 2013-2013 | 1 | |||
| Tiguan 4Motion | 2011-2018 | 1 | |||
| new beetle | 2011-2016 | 1 | 1 | ||
| new beetle cabriolet | 2011-2016 | 1 | 1 | ||
| Golf Cabriolet | 2011-2016 | 1 | |||
| Passat CC | 2011-2016 | 1 | |||
| Audi Q3 quattro | 2011-2015 | 1 | 1 | CFFA,CFFB, | |
| Golf Plus | 2011-2014 | 1 | |||
| Golf | 2011-2013 | 1 | |||
| Sharan Blue Motion | 2010-2015 | 1 | |||
| Caddy Maxi Kombi | 2010-2015 | 1 | |||
| Touran 2.0 | 2010-2015 | 1 | |||
| Passat saloon | 2010-2015 | 1 | |||
| Eos BlueMotion | 2010-2015 | 1 | |||
| jetta | 2010-2014 | 1 | 1 | ||
| Alhambra Stylance | 2010-2013 | 1 | 1 | ||
| Golf Plus 1.6 | 2009-2011 | 1 | |||
| Scirocco 2.0 | 2008-2014 | 1 | |||
| Audi A3 Sportback | 2008-2013 | 1 | 1 | CFFA,CFFB, | |
| Passat CC | 2008-2012 | 1 | |||
| golf 2.0 | 2008-2011 | 1 | |||
| jetta | 2008-2011 | 1 | |||
| TIGUAN 08> | 2007- | 1 | |||
| Audi A3 Cab. 2.0 TDI | 2007-2013 | 1 | 1 | TL4 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Passat | 2011-2015 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03L253010GX Volkswagen Exhaust Manifold with Turbocharger is fitted on: caddy kombi 2015-2020; jetta 2014-2017; Altea XL Reference 2013-2013; Tiguan 4Motion 2011-2018; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Passat CC 2011-2016; Audi Q3 quattro 2011-2015; Golf Plus 2011-2014; Golf 2011-2013; Sharan Blue Motion 2010-2015; Caddy Maxi Kombi 2010-2015; Touran 2.0 2010-2015; Passat saloon 2010-2015; Eos BlueMotion 2010-2015; jetta 2010-2014; Alhambra Stylance 2010-2013; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; Audi A3 Sportback 2008-2013; Passat CC 2008-2012; golf 2.0 2008-2011; jetta 2008-2011; TIGUAN 08> 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; New Passat 2011-2015.
