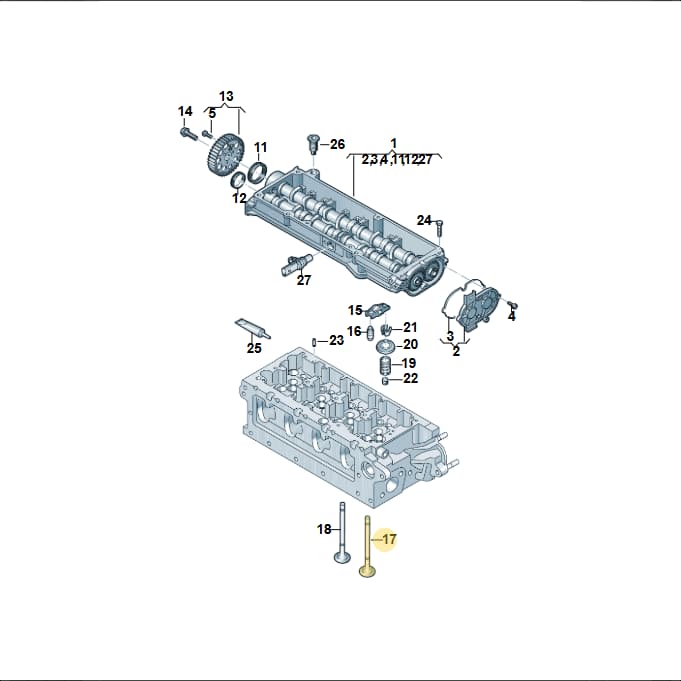

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Intake Valve, part number 03N109601. This valve precisely controls the flow of air into the engine's combustion chamber, a critical function for engine performance. It is located within the cylinder head assembly. Weighing 0.057 kg and measuring 0.1 m in height, this valve is manufactured to exact factory tolerances. Using a genuine OEM valve ensures precise timing, proper sealing, and long-term durability, which are essential for engine health and efficiency.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.9 × 2.9 × 10 cm
- Shipping weight
- 0.06 kg
Parts diagram & fitment
5 vehiclesInlet Valve — locate 03N109601 Volkswagen Engine Intake Valve | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 03N109611A — the later replacement part.
Parts in this assembly(20)
- 1Camshaft 03N103044D
- 2Cover 04L109283
- 3Seal 04L145215B
- 4Bolt N10700201
- 5Bolt N10335207
- 11Radial Sea 03L103085C
- 12Cover 03L103113A
- 13Pulley 04L109105
- 14Bolt N10628401
- 15Roller Roc 059109417J
- 16Equal Element 05L109521
- 18Valve 03N109611A
- 19Spring 03N109633
- 20Springseat 059109641K
- 21Cotter Pin 036109651A
- 22Seal 036109675A
- 22Seal 06L109675C
- 23Part 06D103251
- 24Bolt N10156207
- 25Seal D176501A1
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
03N109601 Volkswagen Engine Intake Valve | Genuine OEM is fitted on: Passat saloon 2014-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024.
