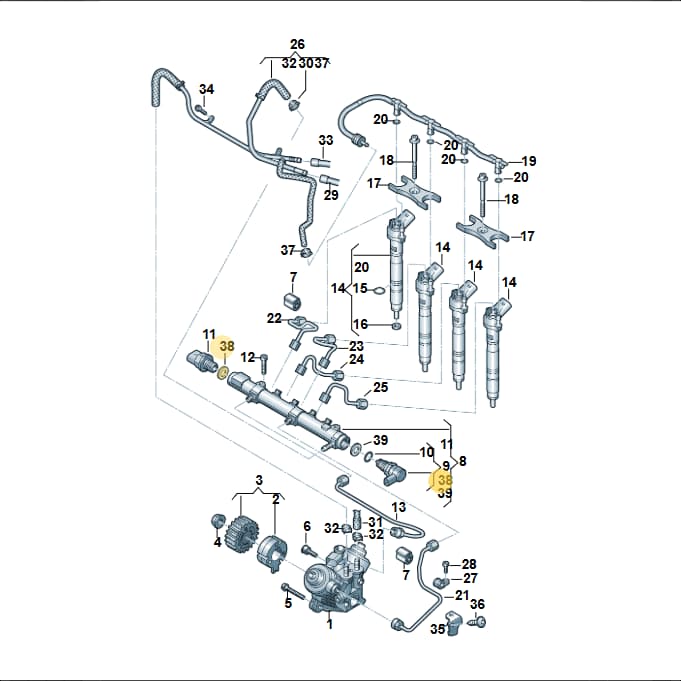

Number 38 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal, part number 03N130519. This seal is a critical component for maintaining system integrity within the fuel system. It is located in the fuel injection assembly. Made from durable rubber, it ensures a tight fit and prevents leaks. Genuine OEM parts are manufactured to exact specifications for optimal performance and longevity, ensuring proper sealing and system function.
Catalogue entry: SEAL.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.7 × 1.7 × 0.3 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 15.2x8x1
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesSeal — locate 03N130519 Volkswagen Seal | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Pump 03N130755A
- 3Pulley 04L130101
- 4Collar Nut WHT002244
- 5Screw N10714501
- 6Bolt N10665001
- 7Damper 03L130118
- 8Rail 03N130093A
- 9Valve 04L130764C
- 9Valve 04L130764D
- 10Seal Ring WHT004740A
- 10Seal Ring WHT008239
- 11Sensor 03N906054
- 12Screw N91128701
- 13Pipe 03N130322
- 14Injector 03N130277
- 15Seal Ring WHT000884
- 16Seal Ring 059130519
- 17Clamp Piec 03L130216
- 18Screw WHT005490
- 19Pipe 03N130235A
- 20Seal Ring 059130119
- 21Pipe 03N130321A
- 22Pipe 03N130301
- 23Pipe 03N130302
- 24Pipe 03N130303
- 25Pipe 03N130304
- 26Fuel Line 03N201360C
- 27Clamp N91171101
- 28Bolt N10335206
- 30Clamp N90986501
- 32Clamp 4B0422379
- 35Bracket 03N130190B
- 36Bolt N10451405
- 37Clamp N10757201
Compatible / alternative parts(4)
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Tiguan 2.0 4Motion | 2017-2024 | 38 | 1 |
| Arteon | 2017-2023 | 38 | 1 |
| Tiguan 2.0 4Motion | 2016-2024 | 38 | 1 |
| Kodiaq | 2016-2024 | 38 | 1 |
| Passat saloon | 2014-2024 | 38 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
03N130519 Volkswagen Seal | Genuine OEM is fitted on: Tiguan 2.0 4Motion 2017-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024; Passat saloon 2014-2024.
