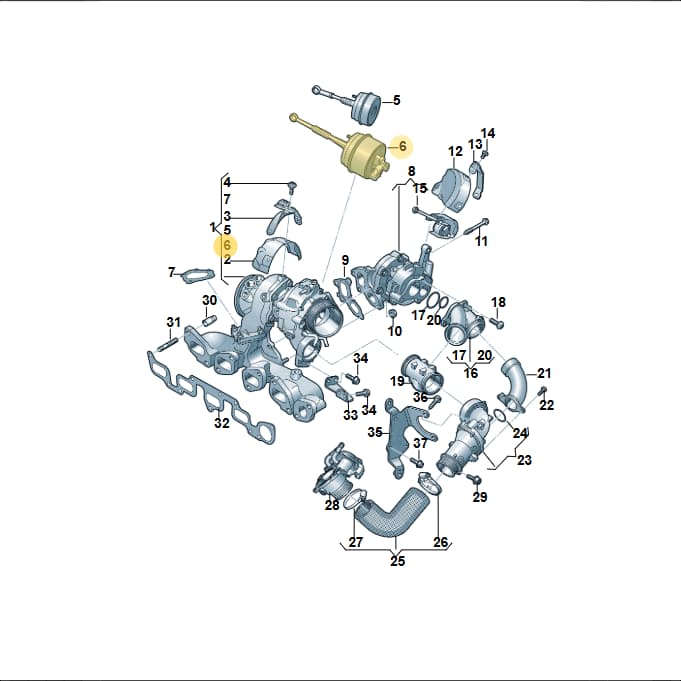

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Repair Set, part number 03N198716A. This set contains essential components for the repair of the turbocharger system, including the wastegate actuator and associated hardware. Ensuring proper function of the turbocharger is vital for engine performance and efficiency. Using genuine OEM parts guarantees compatibility and reliability for a lasting repair.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 39239000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 28.5 × 9.5 × 9.5 cm
- Shipping weight
- 0.87 kg
Parts diagram & fitment
5 vehiclesRepair Set — locate 03N198716A Volkswagen Repair Set | Turbocharger Components in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 1Turbo 03N253020H
- 1Turbo 03N253020HX
- 2Heat Sh 03N253731F
- 3Bracket 03N971501C
- 4Bolt N91096603
- 5Repair Kit 03N198716
- 7Repair Kit 03N198701
- 8Turbo 03N145401J
- 9Seal 03N145774A
- 10Collar Nut N91130802
- 11Screw WHT007403
- 12Heat Sh 03N253731H
- 13Bracket 03N971501E
- 15Repair Kit 03N198716F
- 16Pipe 03N253368
- 17Seal Ring 03N145215A
- 18Bolt N10124309
- 19Pipe 03N253367
- 20Seal Ring 03N145215B
- 21Pipe 03N253369
- 22Bolt N91071702
- 22Bolt N10571403
- 23Bypassvalv 03N145901
- 25Chargetube 03N145762D
- 26Clamp N10544401
- 29Screw N90870602
- 30Part 057131529G
- 31Bolt N0444076
- 32Seal 03N253039D
- 33Bracket 03N253040G
- 34Screw N91026802
- 35Bracket 03N103369C
- 37Screw N91128001
Compatible / alternative parts(12)
- Part 3Q0253115
- Part 3Q0253725A
- Part N90846101
- Part N10784701
- Part N90846102
- Part 03N145215A
- Part N10784702
- Part N10784801
- Part 04L131547AF
- Part 03N145215B
- Part 04L131547AB
- Part 04L131547AG
Diagrams & fitment data powered by oemdiagrams.com
03N198716A Volkswagen Repair Set | Turbocharger Components is fitted on: Passat saloon 2014-2024; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2016-2024.
