Product overview
Genuine OEM Volkswagen Cylinder Head Gasket, part number 03P103383D. This gasket forms a seal between the cylinder head and the engine block, preventing the escape of combustion gases and the mixing of coolant and oil. It is a critical component of the engine's sealing system. The gasket is approximately 0.235 meters in length and 0.16 meters in width. Genuine OEM cylinder head gaskets are engineered with specific materials and multi-layer designs to withstand extreme temperatures and pressures, ensuring a reliable seal for the life of the engine.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 23.5 × 16 × 0.3 cm
- Shipping weight
- 0.25 kg
Parts diagram & fitment

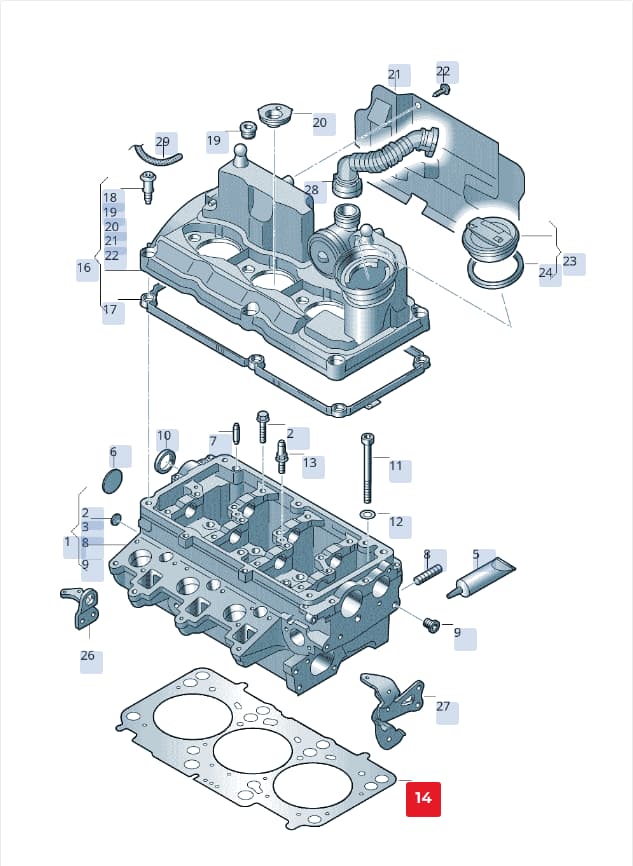

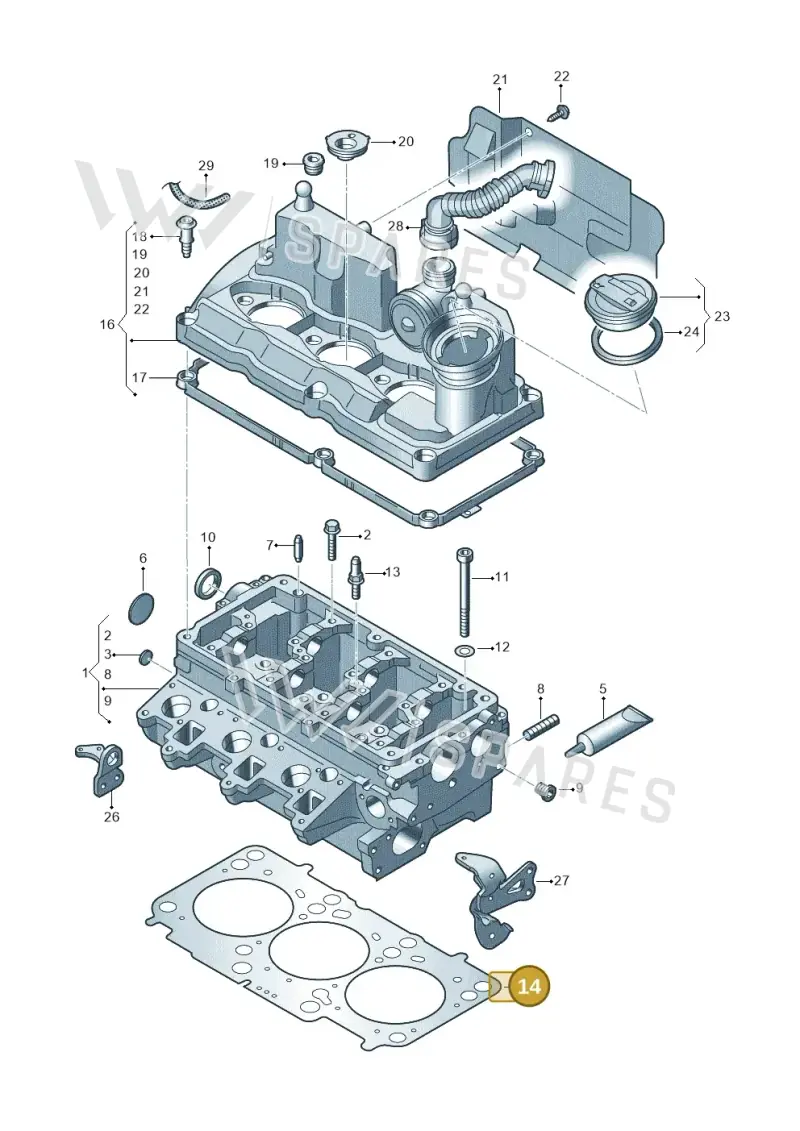

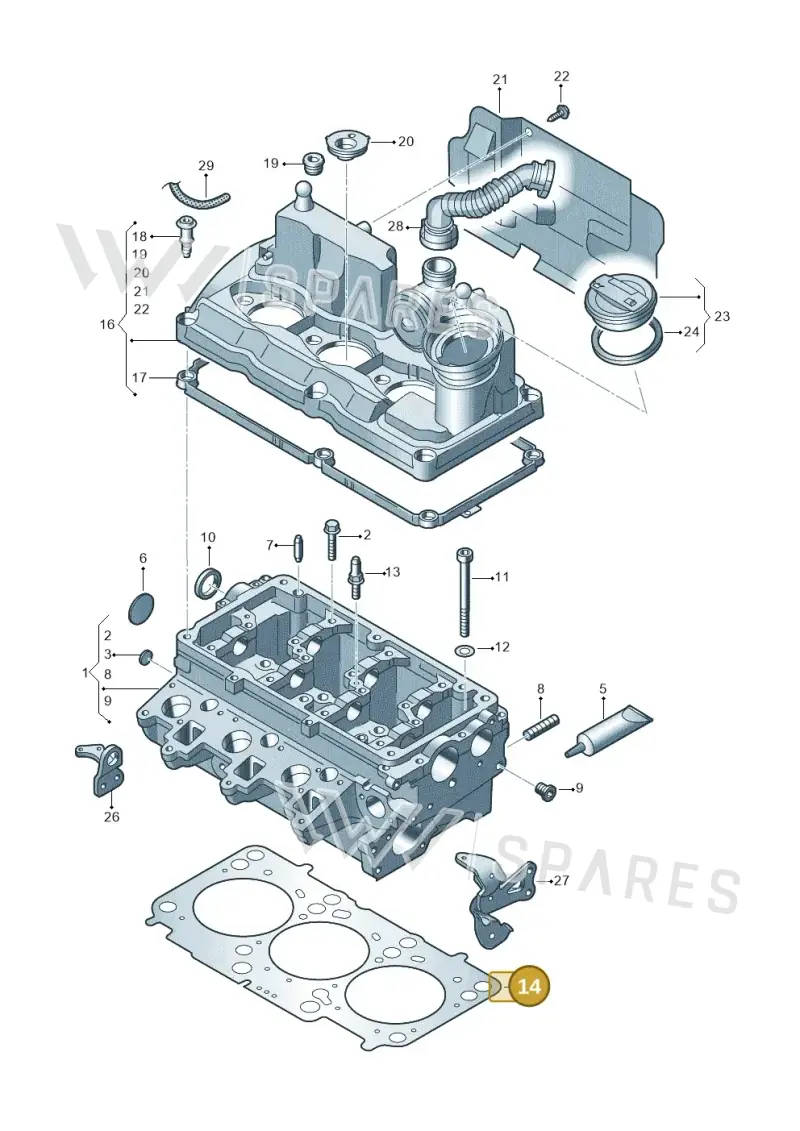

8 vehiclesCylinder Head Gasket — locate 03P103383D Volkswagen Cylinder Head Gasket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by WHT002131 — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(27)
- 1Cylinder Head 03P103063
- 1Cylinder Head 03P103265X
- 1Cylinder Head 03P103351
- 2Bolt N10205604
- 3Cover N01191410
- 5Seal D176501A1
- 6Cover 03L103113A
- 7Part 06D103251
- 8Bolt N90188902
- 9Bolt N90281802
- 10Radial Sea 03L103085
- 11Screw WHT002131
- 12Washer N90115701
- 13Bolt WHT004737
- 14Seal 03P103383A
- 14Seal 03P103383B
- 14Seal 03P103383E
- 16Cover 03P103469A
- 17Seal 03P103483
- 18Bolt 03G103448B
- 19Seal 03P103487
- 20Seal Ring 03P103070
- 21Heat Sh 03P129969D
- 22Bolt N90974701
- 23Cover 06C103485P
- 24Seal 036115111B
- 28Pipe 03P103493A
Compatible / alternative parts(12)
- Part 03P103483
- Part WHT002131A
- Part 03P253039
- Part 03L145757G
- Part 04B145757
- Part WHT004710
- Part 03P129717
- Part 058103598D
- Part 038121688B
- Part 03L103085
- Part 03P130519
- Part 1K0253115T
Diagrams & fitment data powered by oemdiagrams.com
03P103383D Volkswagen Cylinder Head Gasket | Genuine OEM is fitted on: Polo 2009-2012; Polo 2009-2014; Polo 2012-2014; Fabia Scout 2010-2014; Roomster 2010-2015; Fabia Ambiente 2009-2013; Ibiza Reference 2011-2012; Ibiza Reference 2012-2012.
