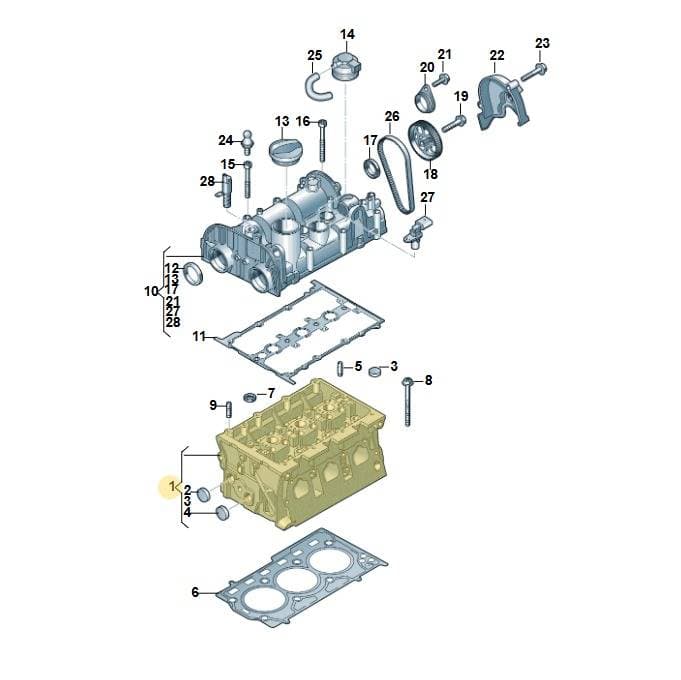

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Cylinder Head, part number 04C103063K. This is a critical engine component that houses the valves and combustion chambers, forming the top of the engine block. It is located at position 1 in the engine diagram. This cylinder head weighs 9.845 kg and has dimensions of 0.27722m x 0.21411m x 0.09589m. Genuine OEM cylinder heads are cast and machined to exact specifications for proper sealing and performance.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 27.72 × 21.41 × 9.59 cm
- Shipping weight
- 9.85 kg
Parts diagram & fitment
3 vehiclesCylinder Head With Valves — locate 04C103063K Volkswagen Cylinder Head | Engine in the official exploded view and explore the surrounding assembly.
Superseded by 04C103063M — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(30)
- 1Cylinder Head 04C103063N
- 1Cylinder Head 04C103063NX
- 2Cover N01190110
- 3Cover N01190710
- 4Cover N01191410
- 5Bolt N10773501
- 6Seal 04C103383H
- 7Strainer 036115175B
- 8Screw WHT004926
- 9Part 026103139
- 10Cylinder Head 04C103469K
- 10Cylinder Head 04C103469P
- 10Cylinder Head 04C103469F
- 11Seal 04C103483E
- 11Seal 04C103483G
- 11Seal 04C103483B
- 12Seal 04E103085B
- 13Cover 03C103485B
- 14Valve 04E103175
- 15Bolt N91165001
- 16Bolt N91097401
- 17Seal 04E103085
- 18Pulley 04C109111G
- 19Bolt N91145502
- 20Cover 04C103335
- 21Bolt N91096701
- 22Protection 04C109121C
- 23Screw N91097201
- 24Ball Screw WHT000355
- 25Hose 04C103560C
Diagrams & fitment data powered by oemdiagrams.com
04C103063K Volkswagen Cylinder Head | Engine is fitted on: up! BlueMotion 2011-2016; Mii reference 2011-2019; Citigo 2011-2019.
