Product overview

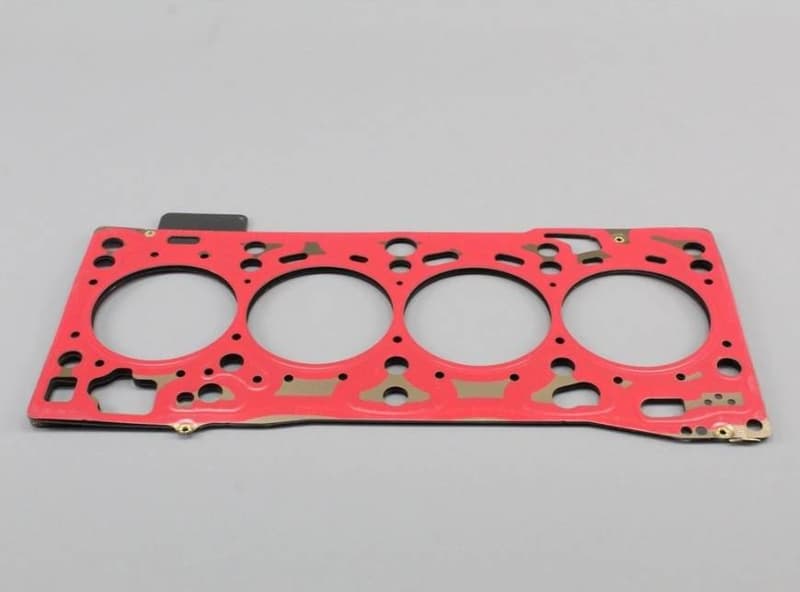

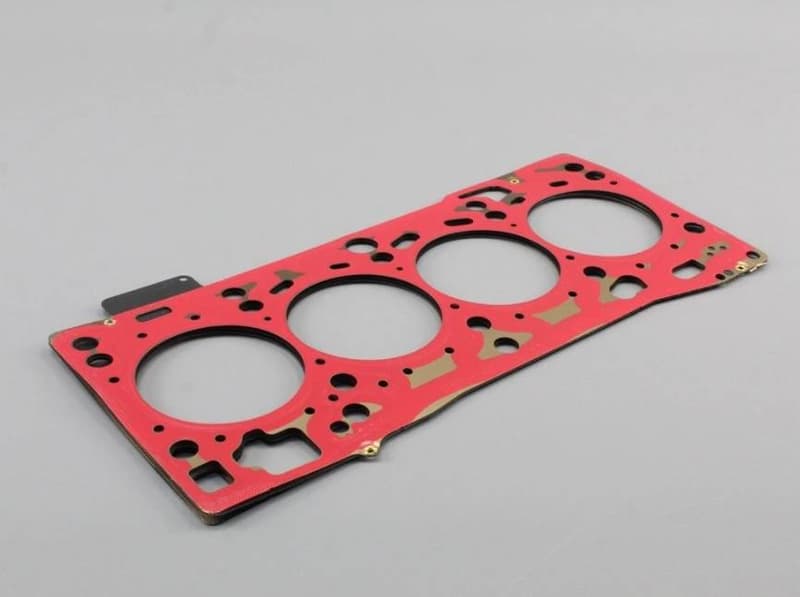

Genuine OEM Volkswagen Cylinder Head Gasket, part number 04L103383AM. This gasket is a critical component that seals the cylinder head to the engine block, preventing combustion gases from escaping and coolant or oil from entering the combustion chambers. It is designed to withstand high temperatures and pressures within the engine. Genuine OEM gaskets are manufactured to precise tolerances for optimal sealing and engine performance.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84841000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 38 × 18 × 0.3 cm
- Shipping weight
- 0.43 kg

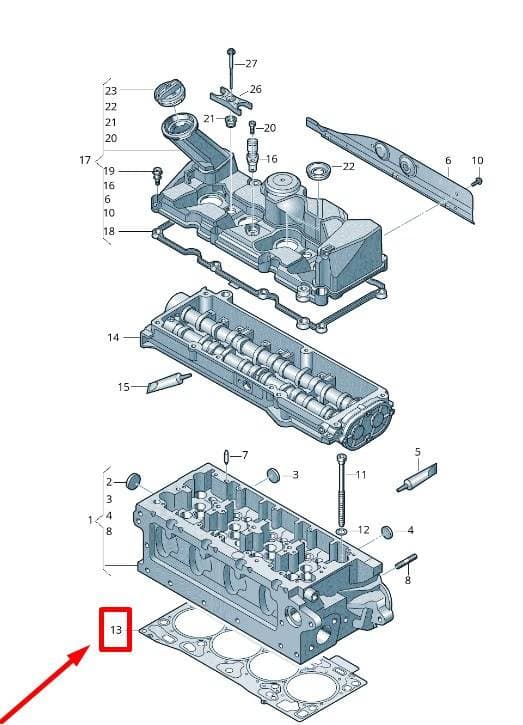

Parts diagram & fitment
8 vehiclesCylinder Head Gasket — locate 04L103383AM Volkswagen Cylinder Head Gasket | Engine in the official exploded view and explore the surrounding assembly.
Superseded by WHT007433 — the later replacement part.
Parts in this assembly(22)
- 1Cylinder Head 04L103061H
- 2Cover N90976102
- 3Cover N01191410
- 4Cover N01190710
- 5Locking D000600A2
- 6Heat Sh 04L129686
- 7Part 06D103251
- 8Bolt N90188902
- 10Bolt N10555702
- 11Bolt WHT007433
- 12Washer WHT005676
- 13Seal 04L103383AN
- 13Seal 04L103383AP
- 15Seal D176501A1
- 16Sender 05E907601D
- 17Cover 04L103469J
- 18Seal 04L103483A
- 19Bolt 04L103831
- 20Screw N10721401
- 21Grommet 04B103631
- 22Seal Ring 04L103070B
- 23Cover 06K103485B
Compatible / alternative parts(12)
- Part 058103598D
- Part 04L103483A
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
- Part D176404A2
- Part D176404A3
- Part D176404M2
- Part D176501A1
- Part D176600A1
- Part D176600M1
Diagrams & fitment data powered by oemdiagrams.com
04L103383AM Volkswagen Cylinder Head Gasket | Engine is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
