Product overview
Genuine OEM Volkswagen engine oil pan baffle, part number 04L103565. This component is designed to control oil movement within the engine oil pan, preventing oil starvation and aeration during vehicle operation. It is located inside the oil pan assembly. Genuine OEM parts are critical here to ensure the correct factory-engineered fit and material resistance to high-temperature engine oil.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11 × 6 × 2.5 cm
- Shipping weight
- 0.04 kg
Parts diagram & fitment

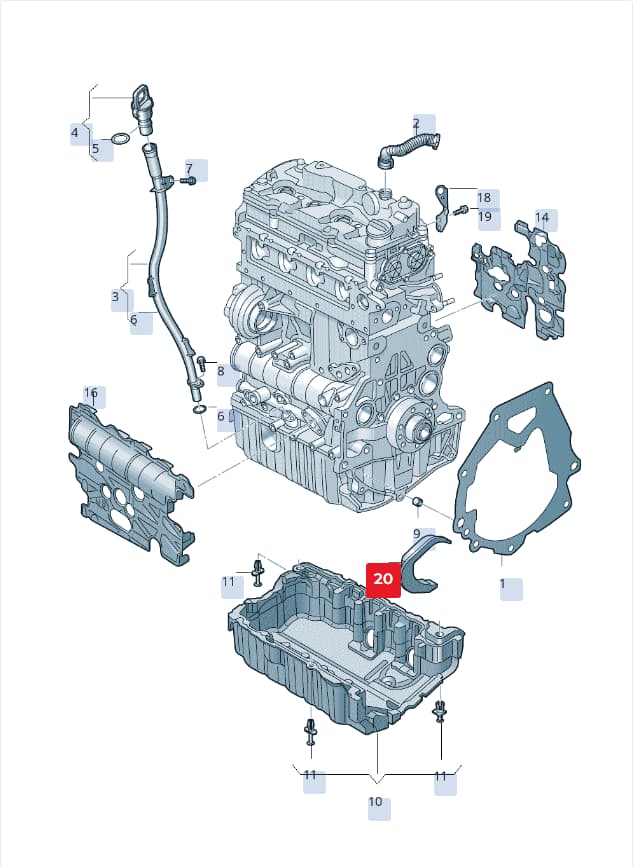

6 vehiclesCover — locate 04L103565 Volkswagen Engine Oil Pan Baffle | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(16)
- 1Cover 04L103647A
- 2Hose 05L103493C
- 3Tube 05L103634A
- 4Stud 03L115418A
- 5Seal Ring WHT001969
- 6Seal Ring N90043201
- 7Bolt N10451405
- 9Sleeve 022103139B
- 10Cover 05L103660A
- 11Spring Rivet 03L863788A
- 14Insulation 05L103954A
- 16Insulation 05L103954B
- 16Insulation 05L103954Q
- 18Eyelet 05L103390
- 19Bolt N91212501
- 20Cover 04L103565B
Compatible / alternative parts(12)
- Part N90665001
- Part N91143202
- Part WHT009773
- Part 05L131547D
- Part 3Q0253115
- Part N91143203
- Part 058103598D
- Part 05L131455C
- Part 05L131455E
- Part 05L131455F
- Part 05L131455G
- Part 05L131547G
Diagrams & fitment data powered by oemdiagrams.com
04L103565 Volkswagen Engine Oil Pan Baffle | Genuine OEM is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020.
