Product overview

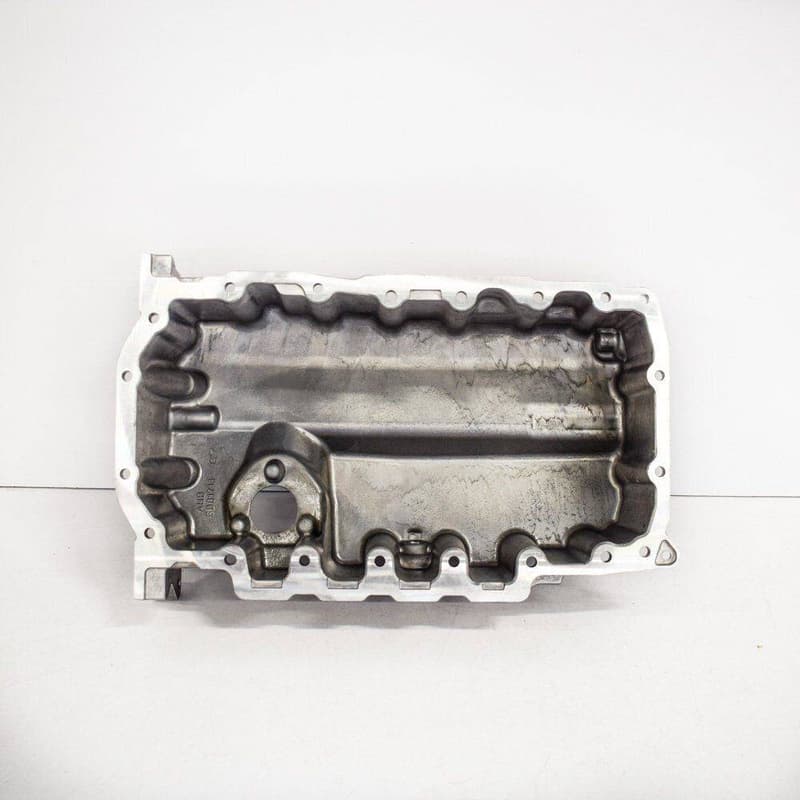

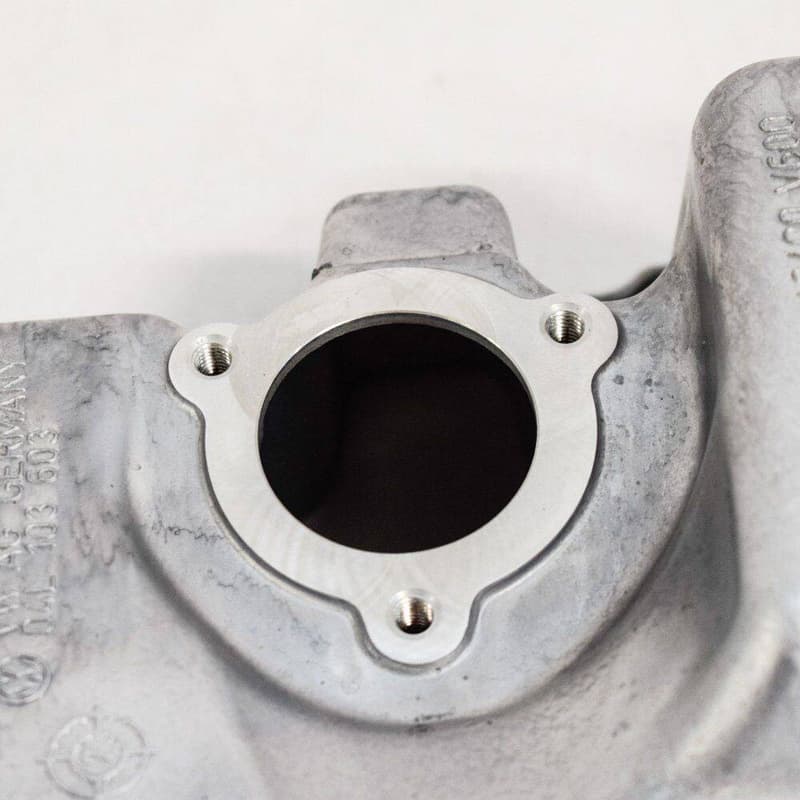

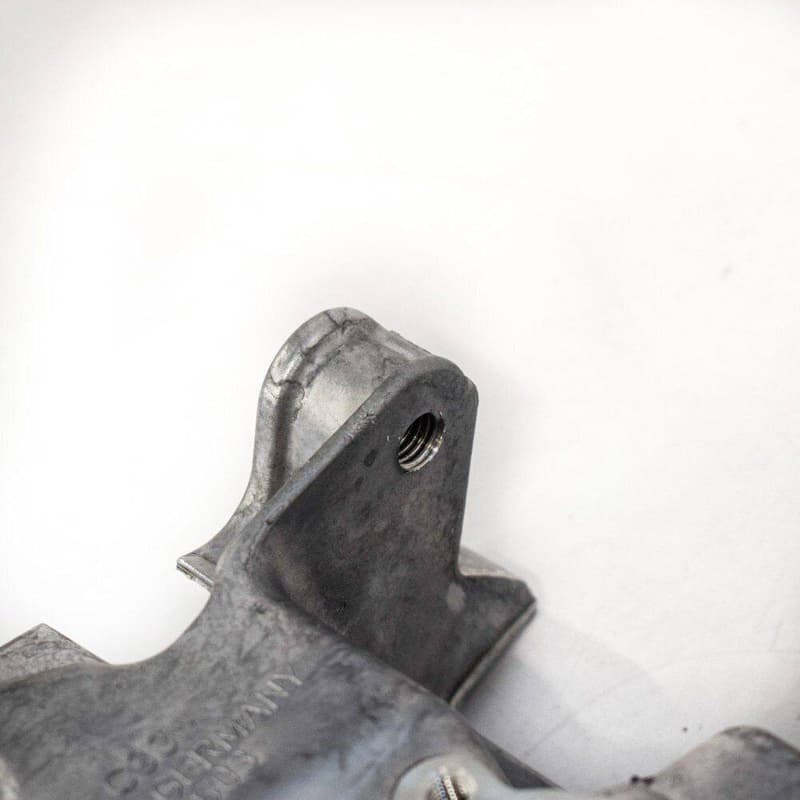

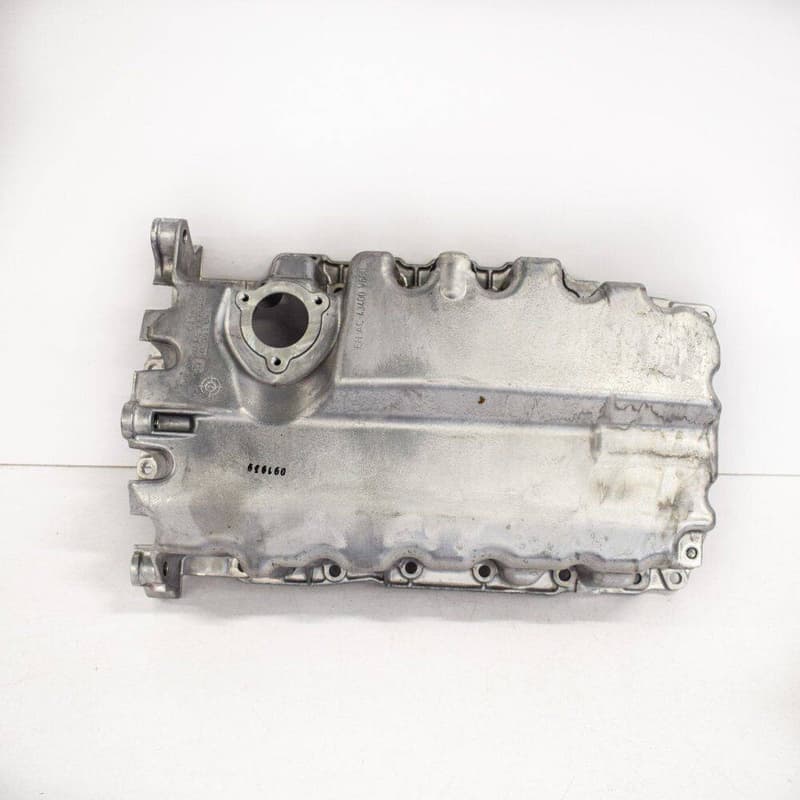

Genuine OEM Audi Engine Oil Pan, part number 04L103603. This critical engine component is responsible for collecting and holding the engine oil, which is then circulated for lubrication and cooling. Positioned at the bottom of the engine, it also houses the oil pickup tube and drain plug. Constructed from durable cast aluminum, this oil pan weighs approximately 1.94 kg and measures 0.44 meters in length. Choosing genuine OEM ensures precise dimensions, correct sealing surfaces, and robust material quality to prevent leaks and protect the engine's vital lubrication system.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 84099900
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 28 × 12 cm
- Shipping weight
- 1.94 kg
Parts diagram & fitment
53 vehiclesOil Sump — locate 04L103603 Audi Engine Oil Pan | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 04L103603A — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(16)
- 1Crankcase 04L103011AJ
- 2Bolt N90889701
- 3Cover N01190710
- 4Part WHT006540
- 5Vent 04L103157F
- 6Part N0432072
- 7Part 04L103151A
- 8Bolt N90945002
- 9Flange 04L103171
- 12Bolt N90813202
- 13Lock 04L103623F
- 14Bolt N90735604
- 15Seal D176501A1
- 16Oel Sensor 04L907660C
- 17Seal Ring 038103196B
- 18Screw N91065201
Compatible / alternative parts(12)
- Part 058103598D
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
- Part D176404A2
- Part D176404A3
- Part D176404M2
- Part D176501A1
- Part D176600A1
- Part D176600M1
- Part DCN176501Z1
Diagrams & fitment data powered by oemdiagrams.com
04L103603 Audi Engine Oil Pan | Genuine OEM is fitted on: T-Cross 1,0 2018-2024; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Tiguan 4Motion 2011-2018; Passat CC 2011-2016; Golf 1.4 BlueMotion 2012-2017; Golf Estate 2013-2017; Golf Sportsvan 1.6 2014-2020; Scirocco 2.0 2014-2017; jetta 2014-2017; Passat saloon 2014-2024; Beetle 2016-2019; new beetle cabriolet 2016-2019; Tiguan 2.0 4Motion 2016-2022; T-Roc BlueMotion 2017-2024; golf 2.0 2016-2020; Arteon 2017-2023; Tiguan 2.0 4Motion 2017-2024; Polo 1.0 BlueMotion 2017-2024; Sharan BlueMotion 2015-2022; caddy kombi 2015-2020; Touran 2,0 BlueMotion 2015-2024; Tiguan 2.0 4Motion 2016-2024; Kodiaq 2024-; Kodiaq 2018-2022; Kamiq 2019-; Rapid 2012-2022; Octavia 2012-2017; Yeti 2013-2017; Kodiaq 2016-2024; Octavia 2017-2020; Karoq 2017-2022; Superb Combi 2015-2024; Leon style 2019-; Arona FR 2017-; Tarraco FR 2018-2024; Toledo Reference 2012-2015; Leon ST Stylance 2012-2016; Leon ST Stylance 2016-2020; Ibiza FR 2017-; Alhambra Stylance 2015-2022; Toledo Reference 2015-2019; Ateca Style 2016-; Audi Q3 quattro 2018-2019; Audi A3 Sportback 2012-2016; Audi A3 Cab. 1.4 2013-2016; Audi A1 Sportback 2014-2018; Audi Q2 2.0 TDI 2016-2018; Audi TTS Coupe 2.0 2014-2023; Audi Q3 2.0 TDI 2014-2019; Audi A3 Sportback 2016-2020; Audi A3 Cabrio 2016-2020.
