Product overview

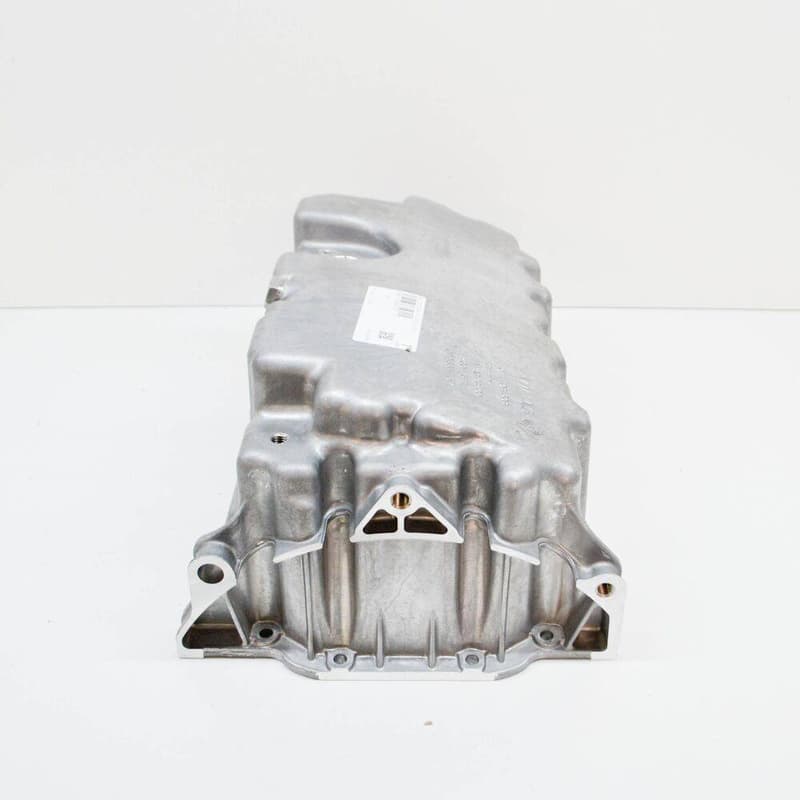

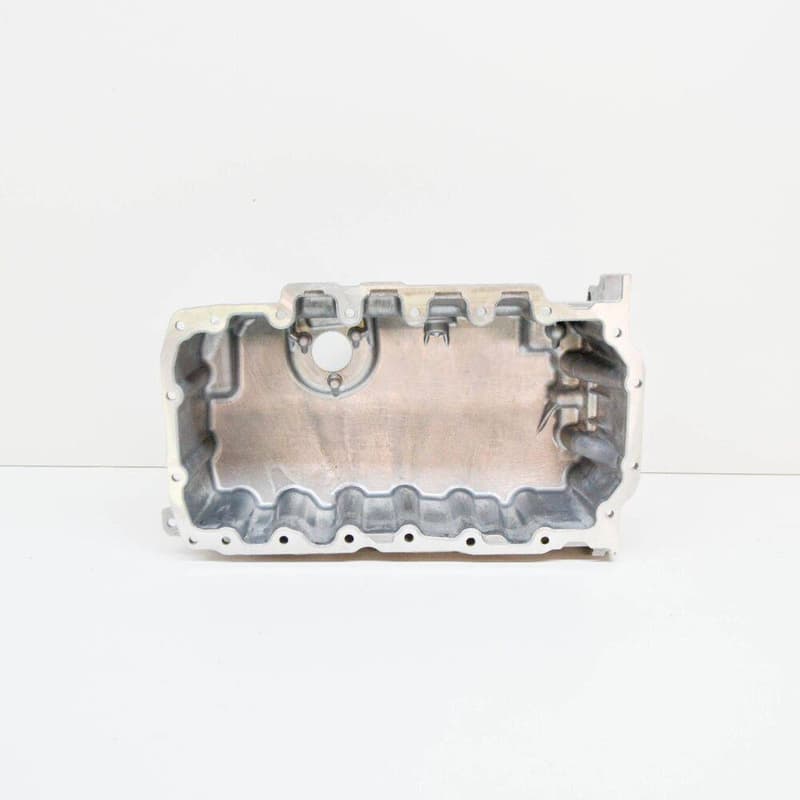

Genuine OEM Volkswagen Engine Oil Pan, part number 04L103603F. This critical component is located at the bottom of the engine, designed to collect and store engine oil for lubrication and cooling. It features a robust construction, weighing approximately 2.46 kg, with dimensions of 0.44m length, 0.26m width, and 0.165m height. Choosing a genuine OEM oil pan ensures an exact fit, proper sealing, and the correct material composition to withstand engine heat and corrosion.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 44 × 26 × 16.5 cm
- Shipping weight
- 2.46 kg
Parts diagram & fitment
6 vehiclesOil Sump — locate 04L103603F Volkswagen Engine Oil Pan | Genuine OEM Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly(13)
- 1Crankcase 04L103011S
- 2Bolt WHT008383
- 3Cover N01190710
- 4Part WHT006540
- 5Vent 038103157C
- 6Part N0432072
- 7Part 04L103151A
- 8Bolt N90945002
- 9Flange 04L103171
- 12Bolt N90813202
- 13Lock 04L103623K
- 14Bolt N90735604
- 15Seal D176501A1
Compatible / alternative parts(12)
- Part 058103598D
- Part AMV17400401
- Part AMV176501
- Part D174003A2
- Part D174003M2
- Part D176404A2
- Part D176404A3
- Part D176404M2
- Part D176501A1
- Part D176600A1
- Part D176600M1
- Part DCN176501Z1
Diagrams & fitment data powered by oemdiagrams.com
04L103603F Volkswagen Engine Oil Pan | Genuine OEM Sump is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
