Product overview

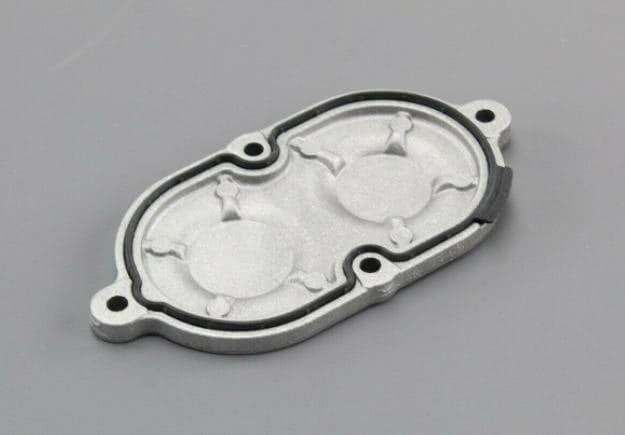

Genuine OEM Volkswagen Engine End Cover, part number 04L109283A. This component is designed to seal and protect an end part of an engine assembly. It features a cast metal construction and includes an integrated rubber gasket for a secure, leak-free fit. Weighing 0.116 kg, this cover ensures the precise fit and material integrity critical for maintaining engine performance and preventing fluid leaks, a hallmark of genuine OEM parts.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099900
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 15.5 × 7.8 × 1 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
8 vehiclesCover — locate 04L109283A Volkswagen Engine End Cover | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 04L109283C — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(21)
- 1Camshaft 04L103044AG
- 1Camshaft 04L109071E
- 2Cover 04L109283D
- 3Seal 04L145215C
- 4Bolt N10700201
- 5Bolt N10335207
- 11Radial Sea 03L103085C
- 12Cover 03L103113A
- 13Pulley 04L109105
- 14Bolt N10628401
- 15Roller Roc 04L109417
- 16Equal Element 05L109521
- 17Valve 05L109601A
- 18Valve 05L109611E
- 19Spring 04L109633A
- 20Springseat 04L109641
- 21Cotter Pin 04E109651
- 22Seal 05L109675
- 23Part 06D103251
- 24Bolt N10156207
- 25Seal D176501A1
Compatible / alternative parts(12)
- Part 038131547A
- Part 03L131547D
- Part N0102228
- Part 04L121119B
- Part N10644401
- Part N10644402
- Part N10644403
- Part N10644404
- Part N10700201
- Part N90500601
- Part N90500603
- Part N90500605
Diagrams & fitment data powered by oemdiagrams.com
04L109283A Volkswagen Engine End Cover | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; MAN TGE 55 2016-2021; MAN TGE 35 2016-2021; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
