04L122157BJ Coolant Pipe With Coolant Hose
€34.58 excl. VAT
- 04L122157ARNot stocked
Apr 2014 - 04L122157BJThis pageNot stocked
Aug 2017 - 04L122157CKCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

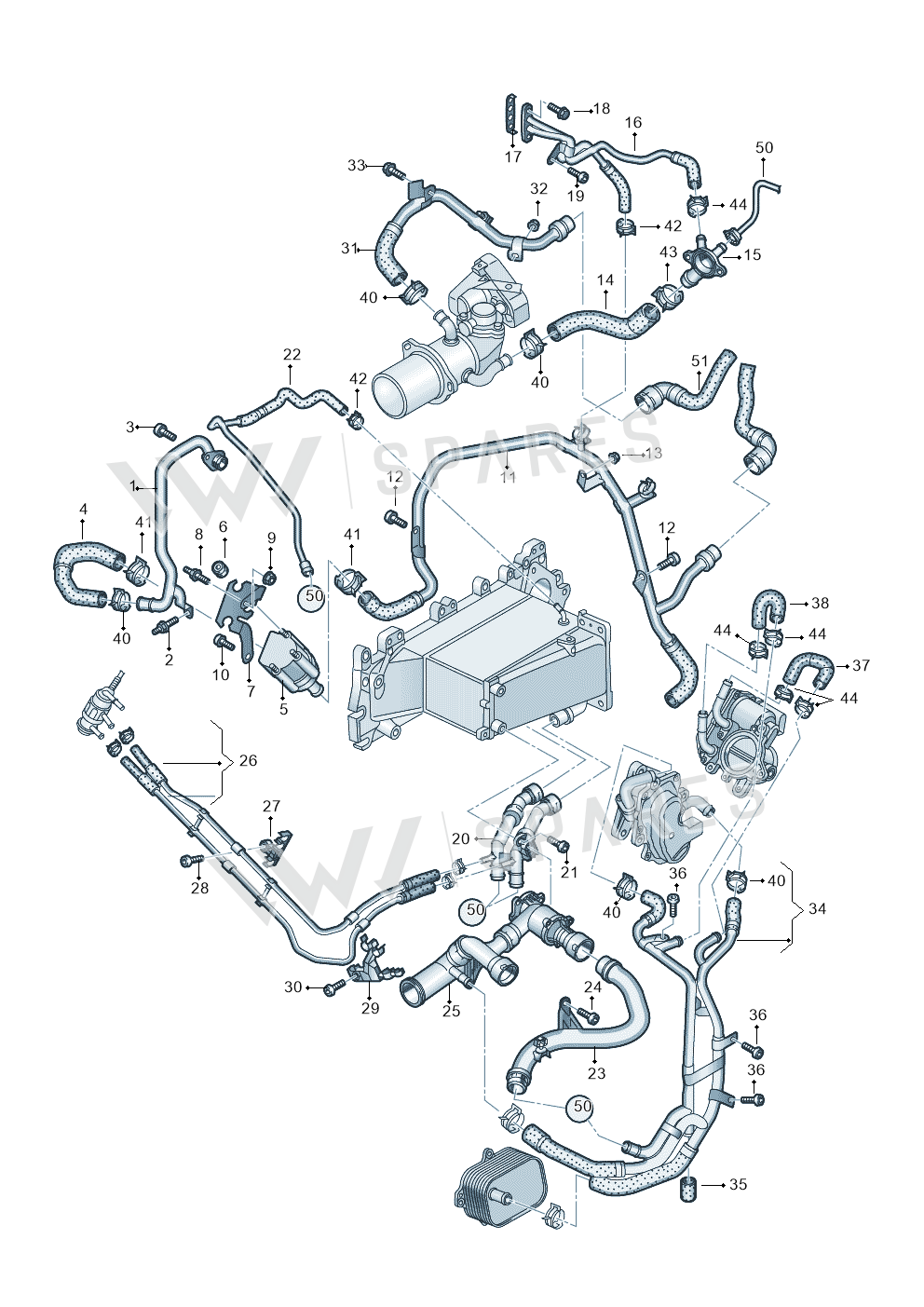

7 vehiclesCoolant Pipe With Coolant Hose — locate Coolant Pipe With Coolant Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Water Pipe 04L121065AK
- 2Screw N10285505
- 3Screw N10717001
- 4Hose 04L121065CF
- 5Pump 5Q0965561B
- 6Fixing Set 5N0198093
- 7Bracket 04L121093G
- 8Bolt N10767301
- 9Collar Nut N01508210
- 10Screw N91201101
- 11Water Pipe 04L122157AQ
- 11Water Pipe 04L122157AB
- 12Bolt N10406504
- 14Hose 04L122157BE
- 16Water Pipe 04L122157BC
- 17Seal 04L121290A
- 18Bolt N90592705
- 20Water Pipe 04L122157P
- 20Water Pipe 04L122157AC
- 21Bolt N10632003
- 22Line 04L129979A
- 23Water Pipe 04L121071G
- 26Water Pipe 04L122157CK
- 27Bracket 04L121093E
- 28Screw N10721401
- 29BracketLeft04L121093AD
- 31Water Pipe 04L122157BT
- 33Bolt N90319404
- 34Water Pipe 04L122157CD
- 34Water Pipe 04L122157CC
- 35Part 078133335A
- 37Hose 04L121058AA
- 38Hose 04L121058F
- 40Clamp N90686902
- 41Clamp N90687001
- 42Clamp N90770201
- 43Clamp N90687101
- 44Clamp N90926401
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi Q5 | 2016-2020 | 26 | 1 | D | |
| Audi A5 Sportback | 2016-2020 | 1 | 1 | D | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | 1 | D | |
| audi a4 2.0 | 2015-2019 | 1 | 1 | D | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 1 | 1 | D | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 1 | 1 | ||
| audi a4 av. 2.0 tdi | 2011-2015 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Coolant Pipe With Coolant Hose is fitted on: Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; audi a6 qu. 3.0 tdi 2014-2018; Audi Q5 qu. 2.0 TDI 2012-2017; audi a4 av. 2.0 tdi 2011-2015.
