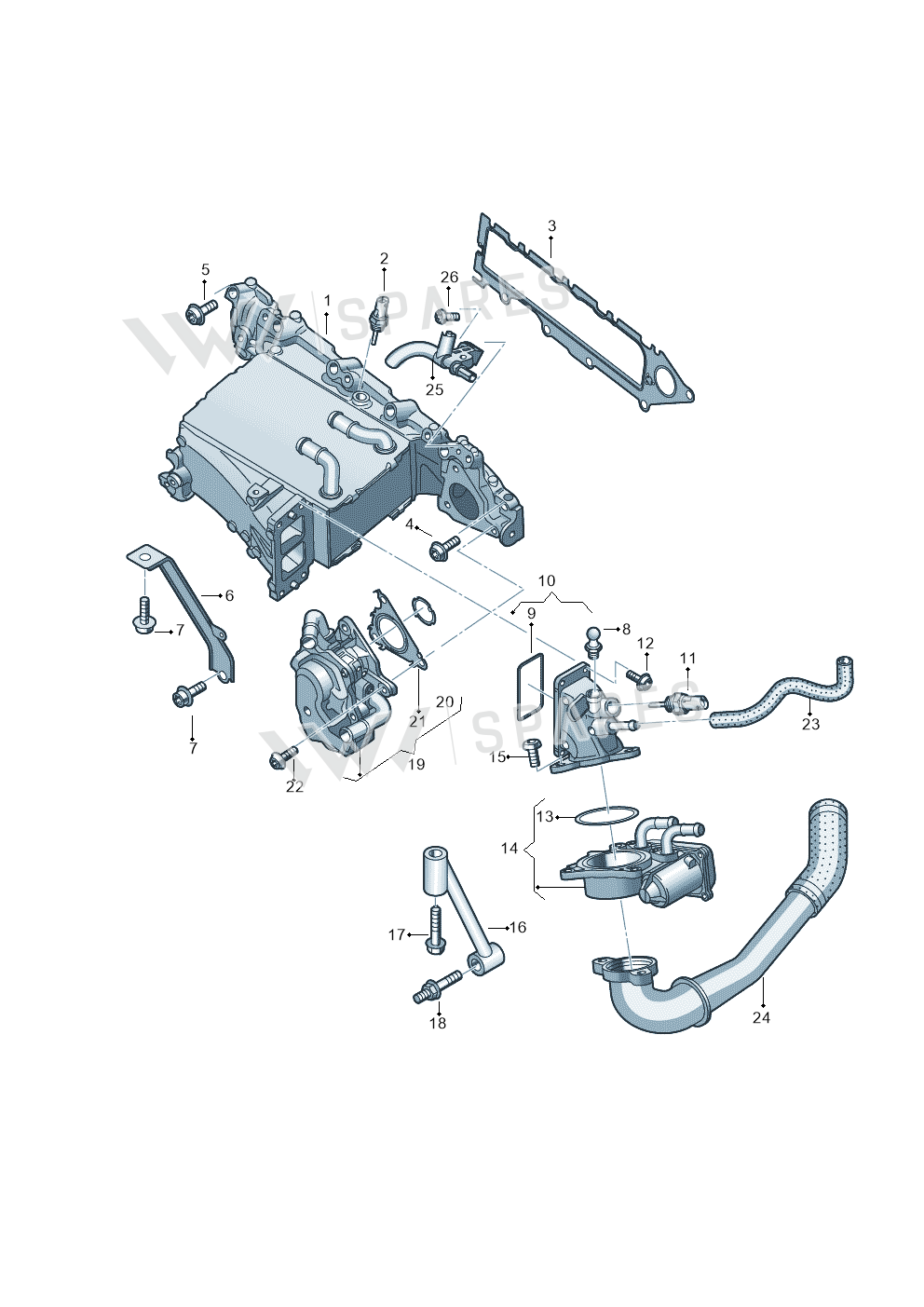

Int Man W Charge Air Cooler exploded parts diagram — Kodiaq · 2018-2022, position 1
Exploded view
Kodiaq · 2018-2022 · position 1Full diagram ↓
04L129766AM

04L129766AM Int Man W Charge Air Cooler

€692.22
incl. 21% VAT

€572.08 excl. VAT

Supersession road5 numbers since 2013
  1. 04L129766BNot stocked
    Mar 2013
  2. 04L129766NNot stocked
    Mar 2014
  3. 04L129766QNot stocked
    Aug 2016
  4. 04L129766AMThis pageNot stocked
    Jul 2019
  5. 04L129766BACurrent number
Current part number04L129766BAWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.

Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

8 vehicles

Int Man W Charge Air Cooler — locate Int Man W Charge Air Cooler in the official exploded view and explore the surrounding assembly.

Parts in this assembly15
Vehicle fitment table8

Europe (8)

VehicleYearsPos.QtyRemarkPR
Kodiaq2018-20221
Octavia2017-202012PR
Kodiaq2016-202412
Leon ST Stylance2016-20201D
golf 2.02016-20201D
Audi A3 Sportback2016-2020117MJ
Octavia2012-20171
Leon ST Stylance2012-20161

Diagrams & fitment data powered by oemdiagrams.com

Int Man W Charge Air Cooler is fitted on: Kodiaq 2018-2022; Octavia 2017-2020; Kodiaq 2016-2024; Leon ST Stylance 2016-2020; golf 2.0 2016-2020; Audi A3 Sportback 2016-2020; Octavia 2012-2017; Leon ST Stylance 2012-2016.
